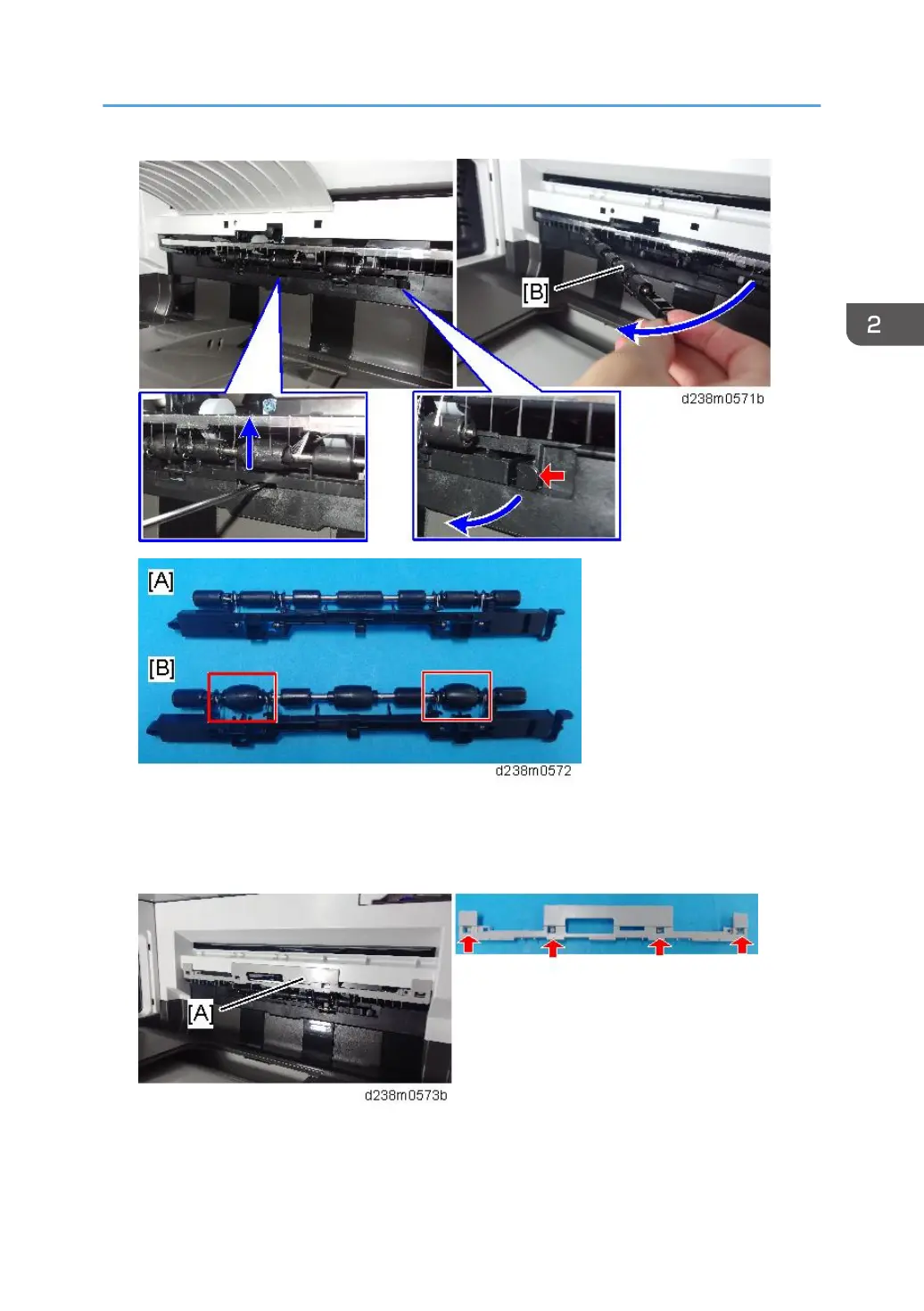

[A]: The supplied driven roller has flat rollers.

[B]: The machine’s standard driven roller has drum-type rollers (as indicated by red frames).

29. Attach the paper support guide [A] (Tab x 4).

Internal Finisher SR3180 (D766)

331
