Ricoh MP C3004 - Page 366

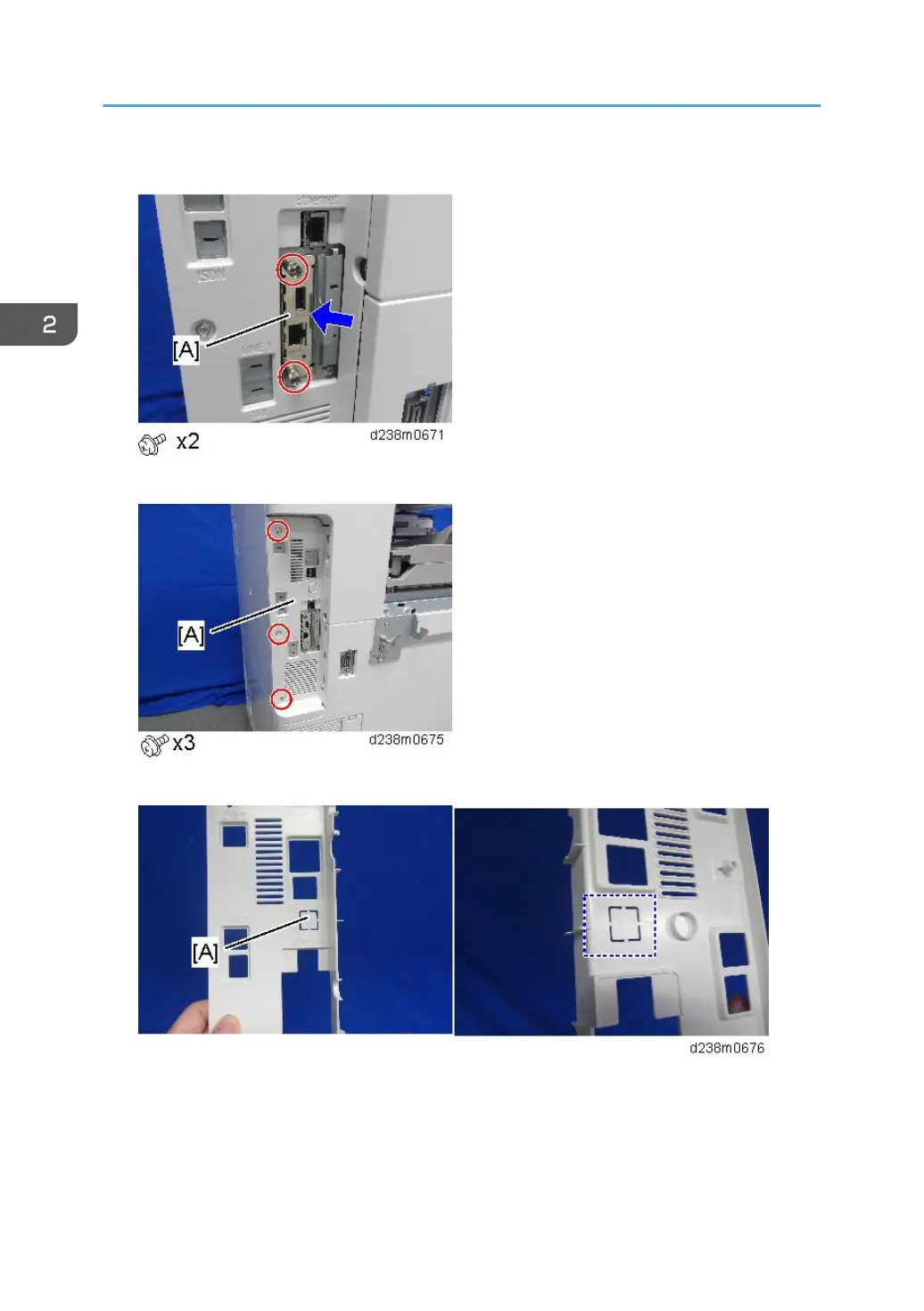

3. Insert the interface board [A] into the I/F slot.
4. Remove the I/F cover [A].
5. Cut off the USB port cover [A] with nippers or other such tool.
6. Reattach the I/F cover.
7. Insert the USB cable [A] into the USB port (Type A) on the machine I/F.
2. Installation
358
