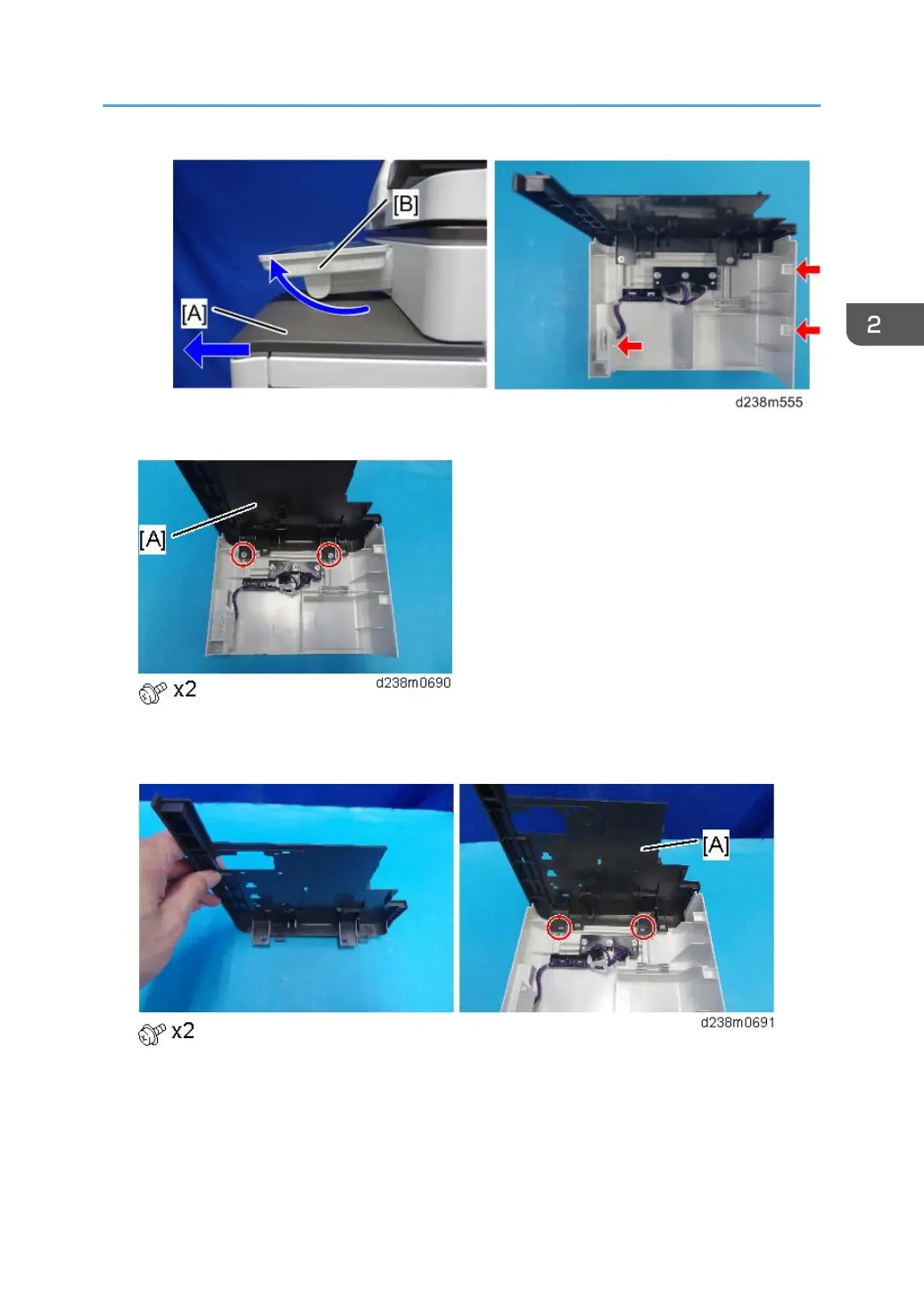

3. Remove the original upper cover [A].

4. Attach the corner cover [A] provided with this option.

Use the screws removed in the previous step.

NFC Card Reader Type M19 (D3BS-21)

405
