Ricoh MP C3004 - Page 418

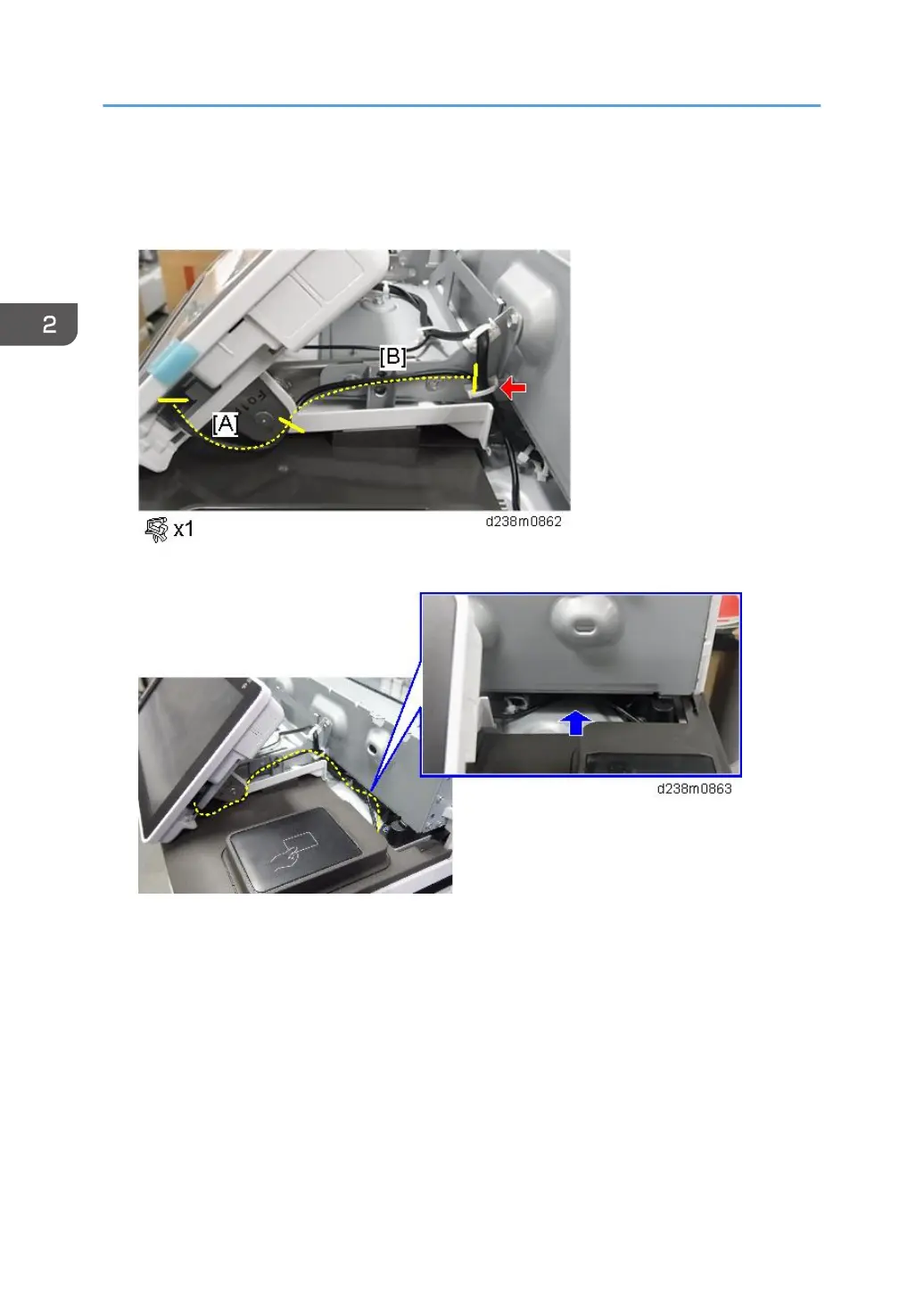

16. Apply the clamp to fasten the USB cable to the machine.
Make sure that the cable is not loose between the connector and hinge [A] and the hinge and
clamp [B].
17. Tuck in the excess length portion of the USB cable in the space under the scanner.
18. Reattach the removed covers.
2. Installation
410
