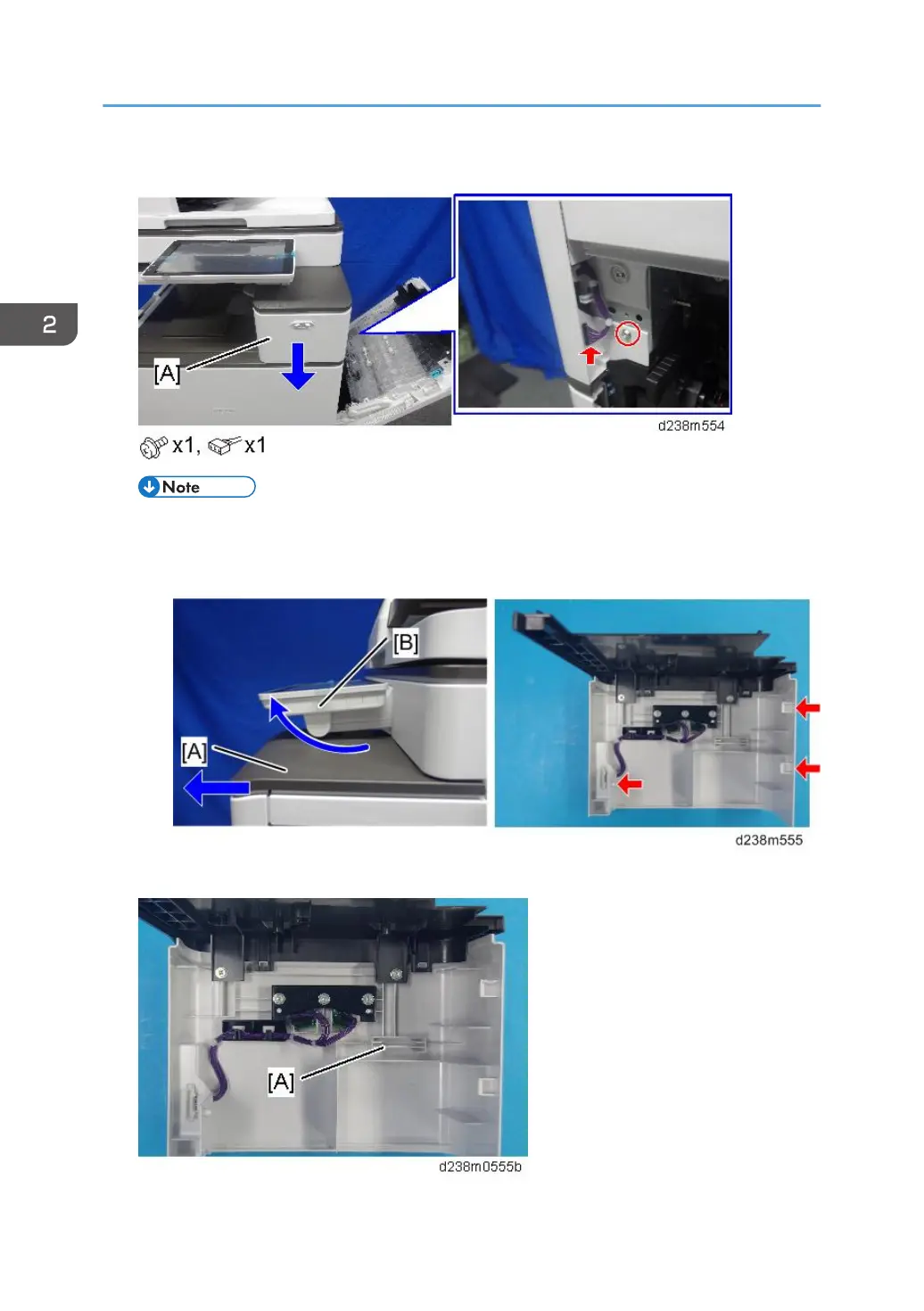

2. Remove the proximity sensor cover [A].
• Remember that there is a tab at the positions in the red arrows.
• Rotate the operation panel [B] upward to a horizontal position, and then detach the proximity
sensor cover [A].
3. Insert the SD card in the storage location [A] inside the cover.
