Ricoh MP C3004 - Page 46

To Next Page

To Previous Page

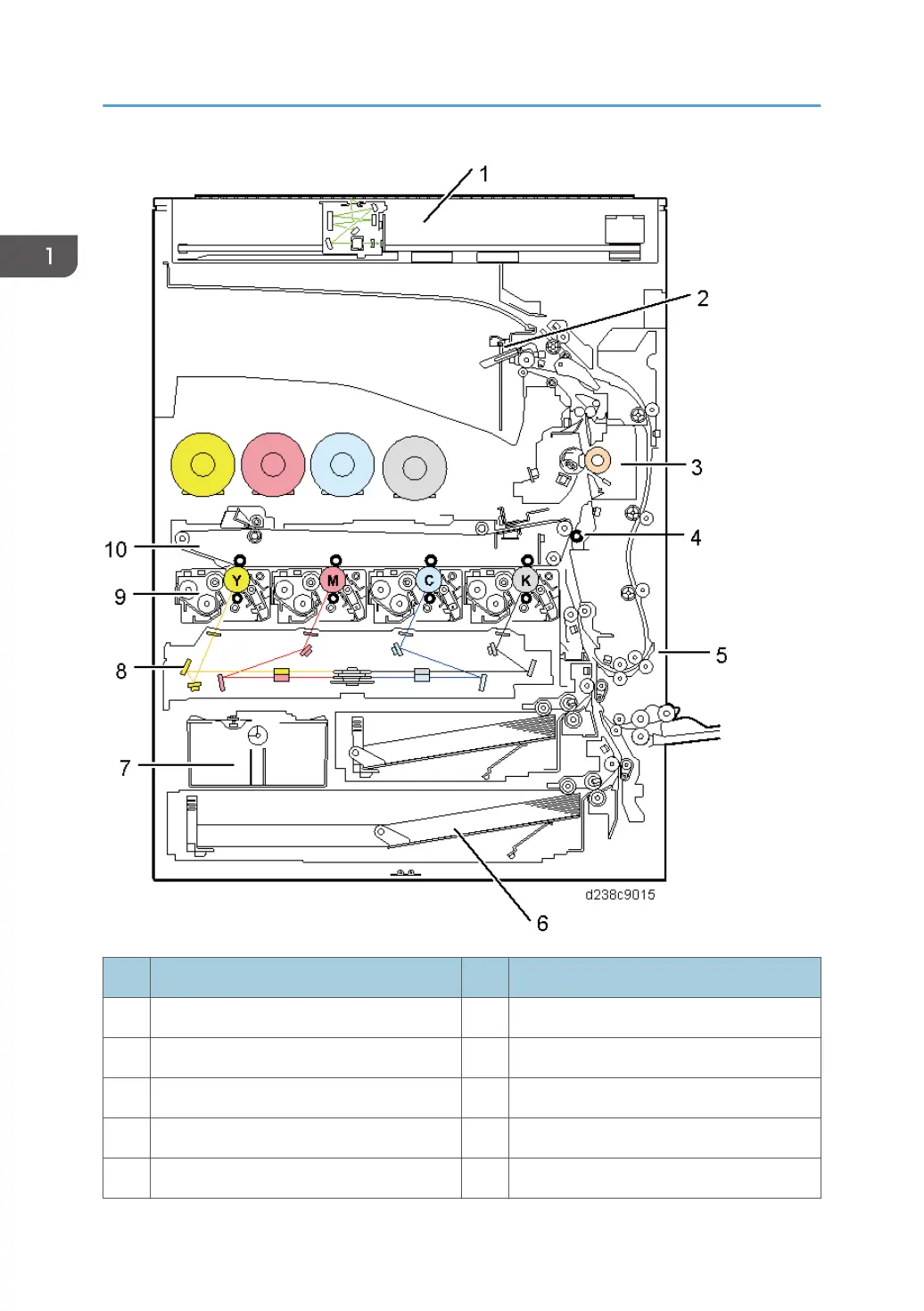

No. Description No. Description

1 Scanner Unit 6 Paper Feed Unit

2 Paper Exit Unit 7 Waste Toner Unit

3 Fusing Unit 8 Laser Exposure Unit

4 Paper Transfer Unit 9 PCDU

5 Duplex Unit 10 Image Transfer Unit
