1. Controller cover (page 494 "Controller Cover")

2. Ozone filter/Dust filter box (page 709)

3. Upper left cover (page 494)

4. Left rear cover (page 495)

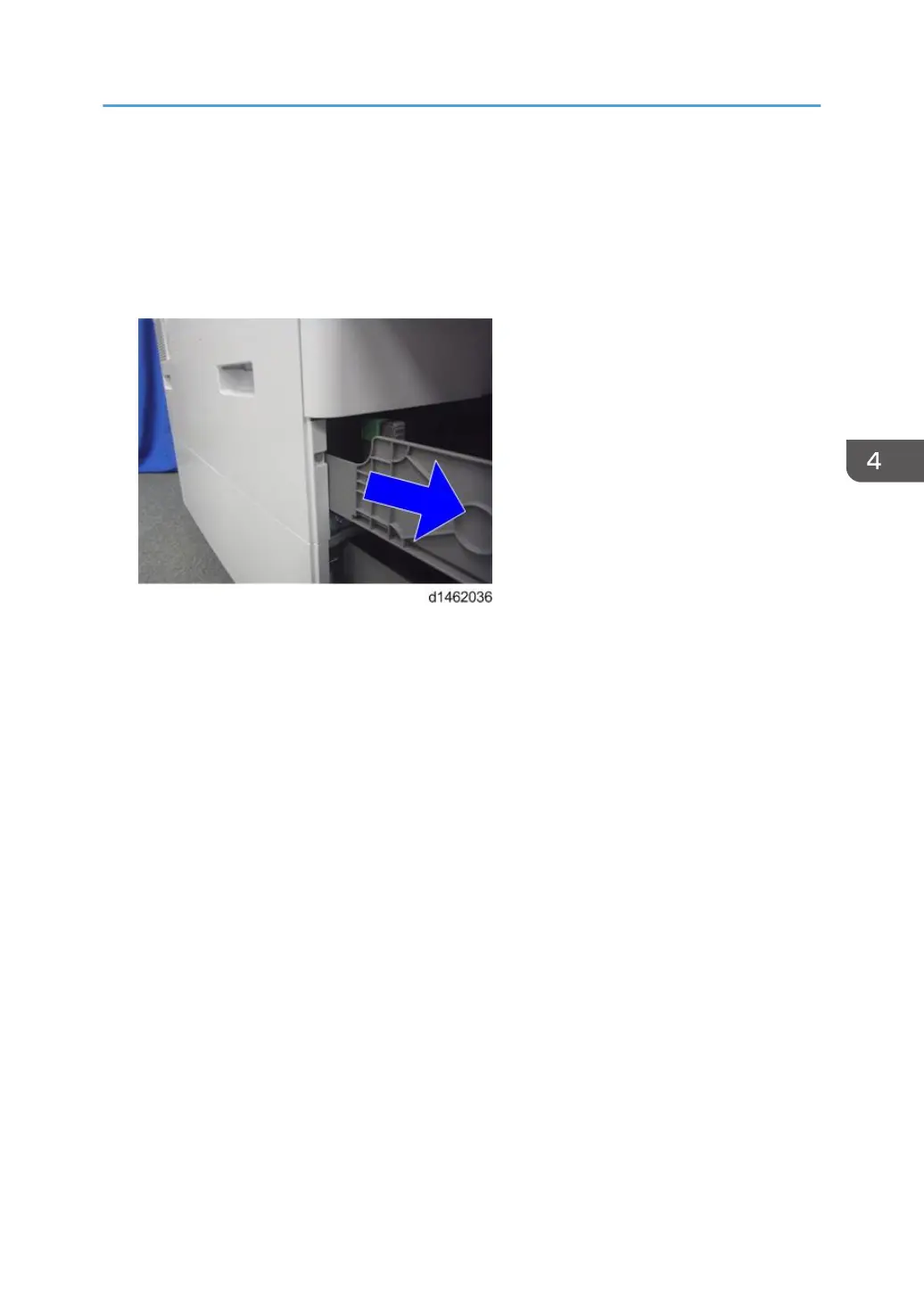

5. Open the 2nd paper feed tray slightly.

6. Left cover [A]

Remove it while pressing down.

Exterior Covers

497
