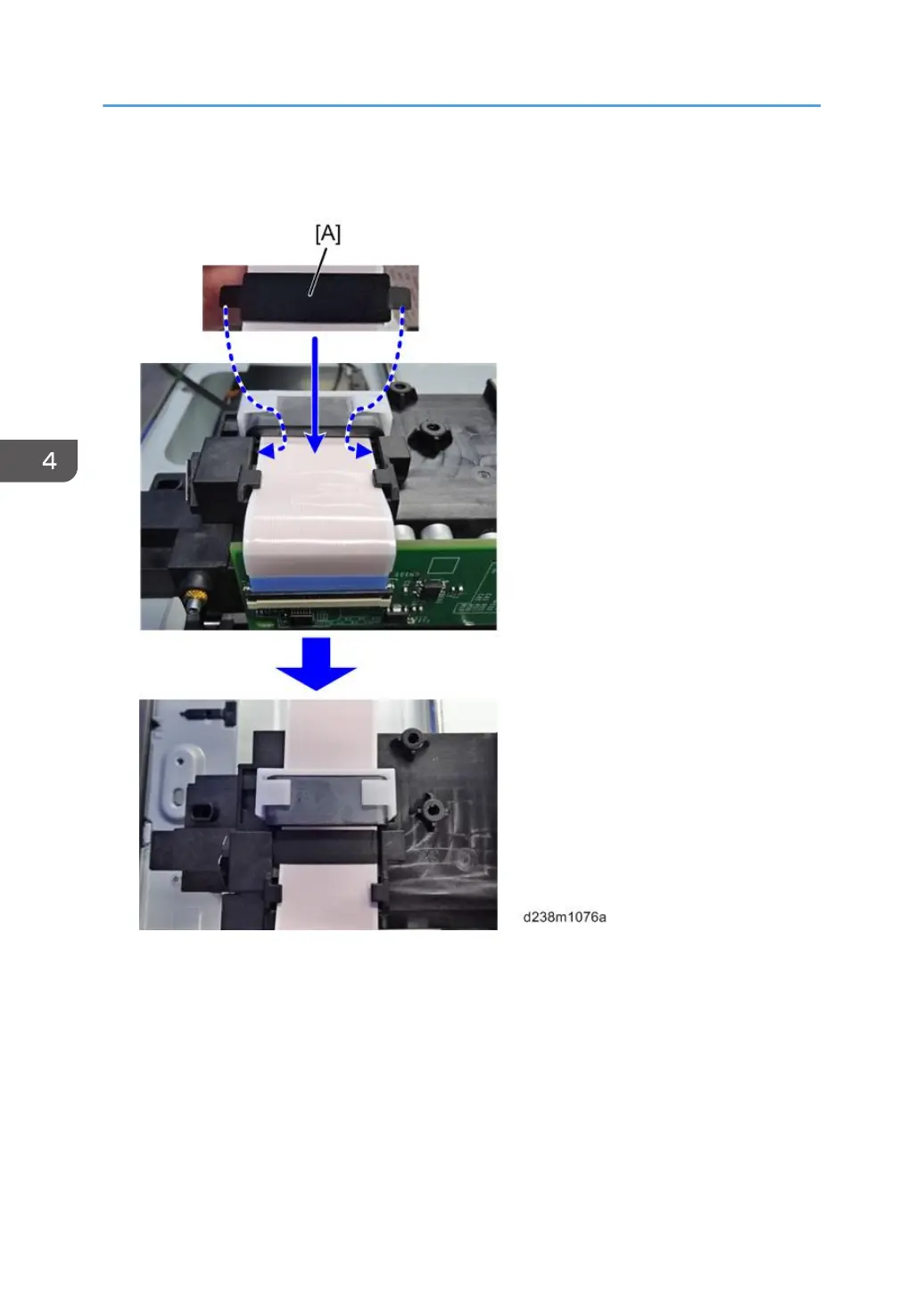

3. Attach the Mylar [A] to the FFC from above, and then insert the tabs at both ends of the
Mylar into the gaps in the FFC holder to secure it in position.
When applying the Mylar, be sure not to stretch the FFC.
Applying the Mylar while stretching the FFC causes the circuit board to be deformed.
4. Replacement and Adjustment
