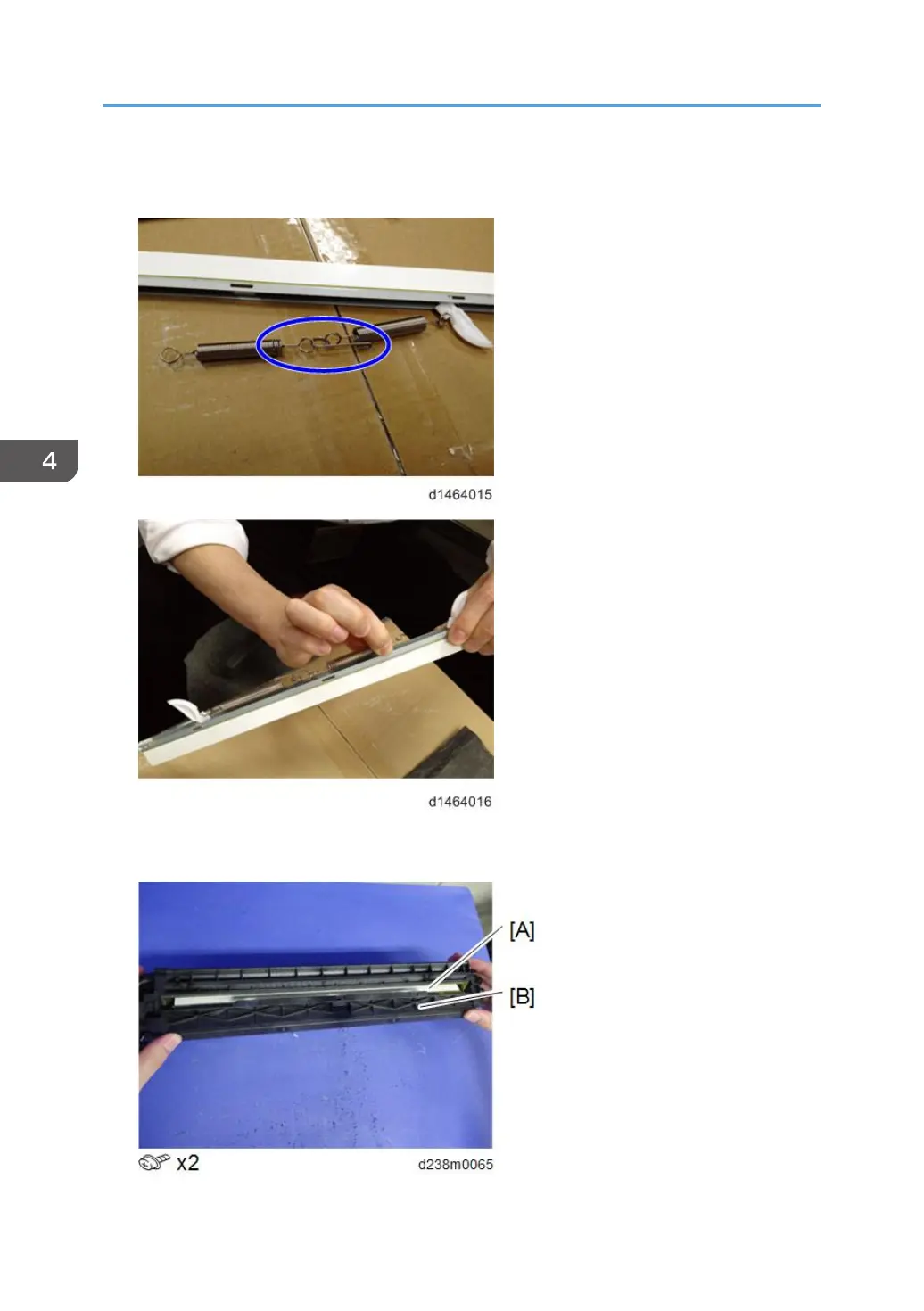

5. Attach the pin between springs as shown below, and then reinstall the springs in the
lubricant bar.
6. Reinstall the lubricant bar [A] in the PCU, and then reattach the PCU cover [B] to the PCU
(3 hooks).
4. Replacement and Adjustment
552
