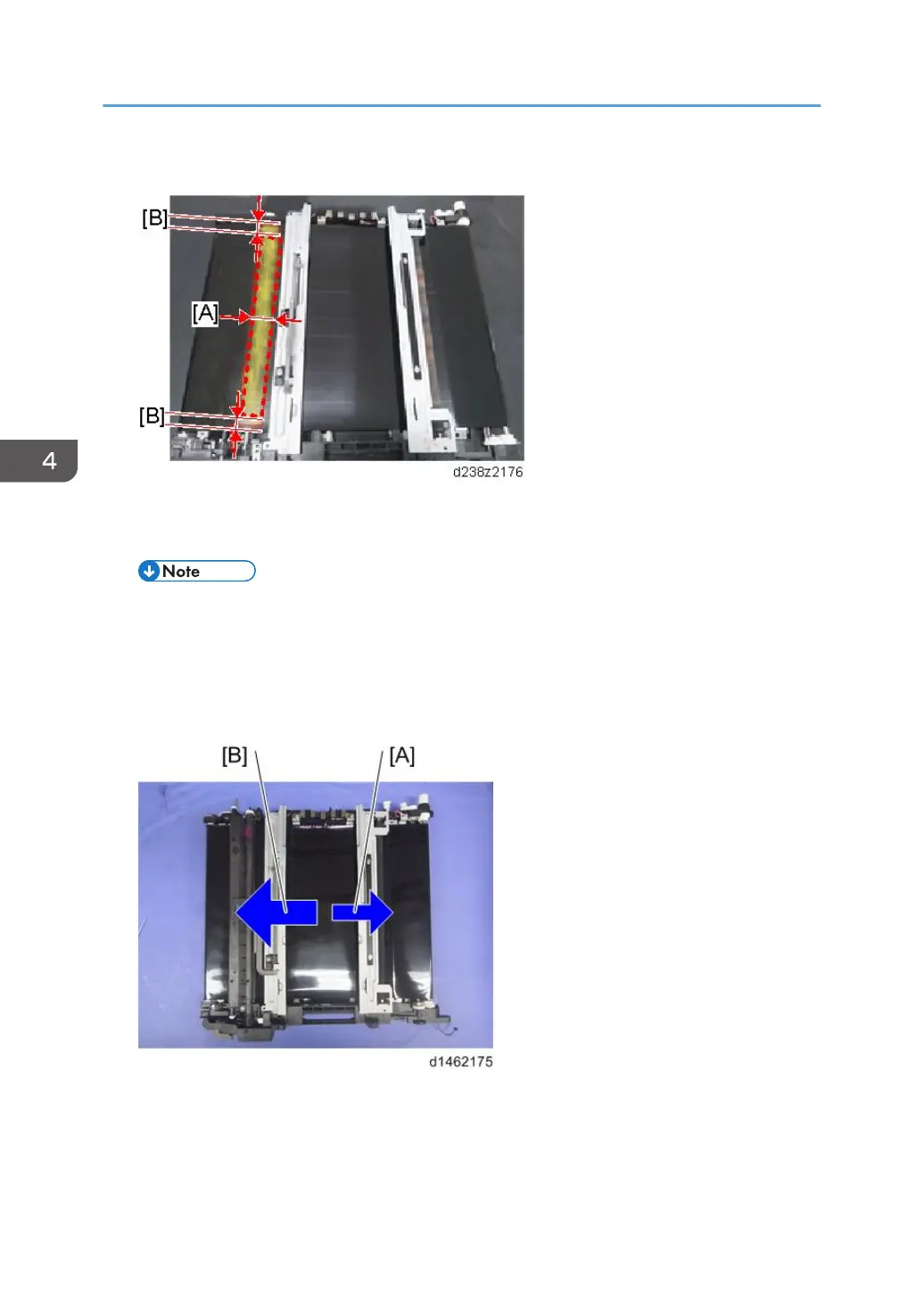

6. Put toner on the image transfer belt.
[A]: 20mm or more
[B]: About 5mm
• It is not necessary to specify the color of the toner, though yellow toner is used in the above
example.
7. Attach the image transfer cleaning unit.
8. Rotate the image transfer belt about 10mm [A] in the reverse direction, then turn it
forward one complete turn [B].
