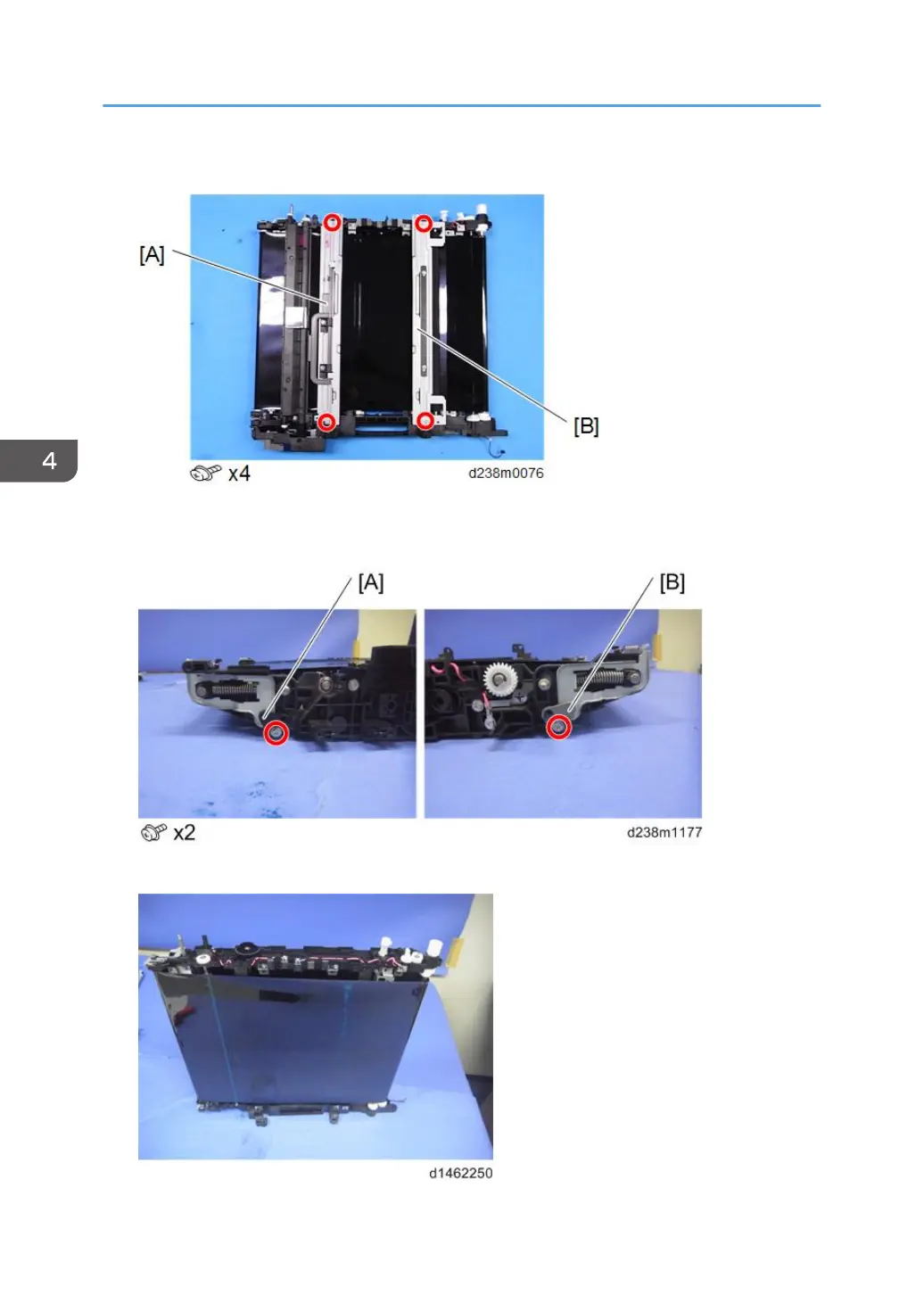

3. Brackets [A] [B]
4. Image transfer cleaning unit (page 570)
5. Remove the tension fixing frames [A] and [B] (front side: black, rear side: gray).
6. Position the image transfer unit with the front side underneath.
4. Replacement and Adjustment
576
