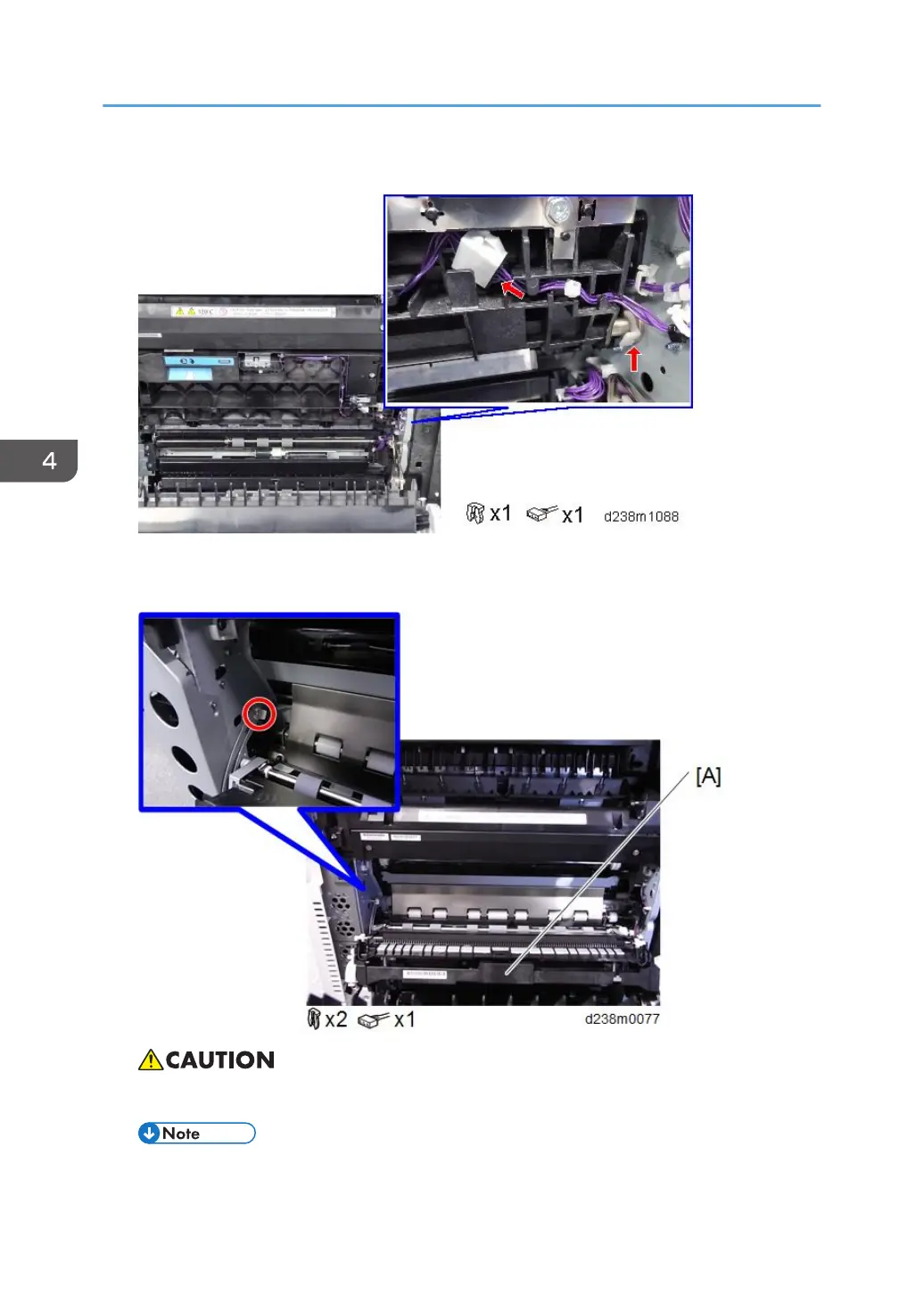

2. Remove the right clip ring and connector on the rear side.
3. Open the paper transfer roller unit. (page 587)
4. Remove the left clip ring at the front side, and remove the paper transfer roller unit [A].
• Note that the sizes of the clip ring differ on the left and right.
• When attaching a paper transfer roller unit, first attach the bushings [A] to the paper transfer
roller unit.
