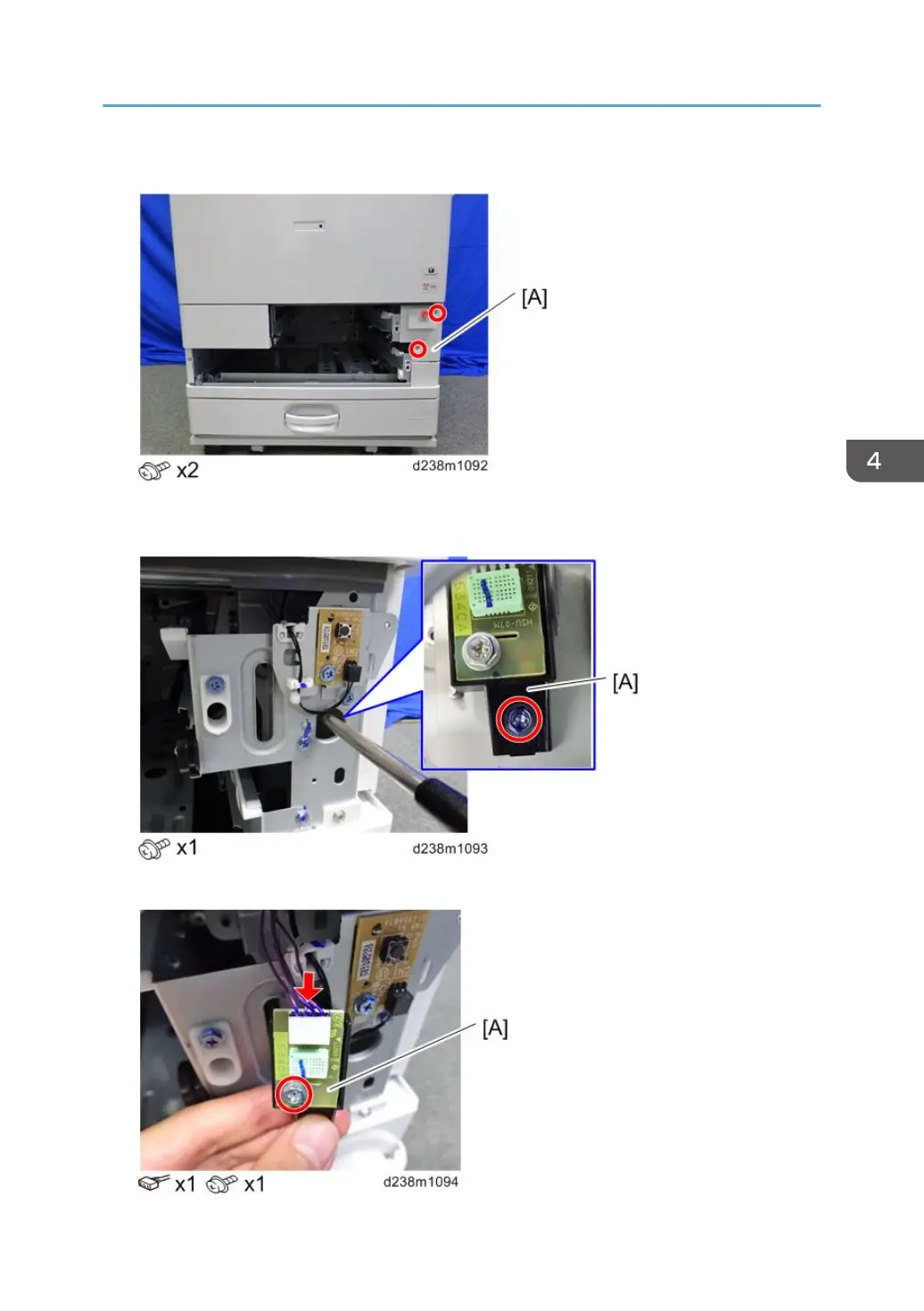

2. Main power switch cover [A]

3. Insert a screwdriver through the hole in the frame, and detach the temperature and

humidity sensor together with its bracket [A].

4. Temperature and humidity sensor [A]

Image Transfer Unit

597
