Ricoh MP C3004 - Page 661

To Next Page

To Previous Page

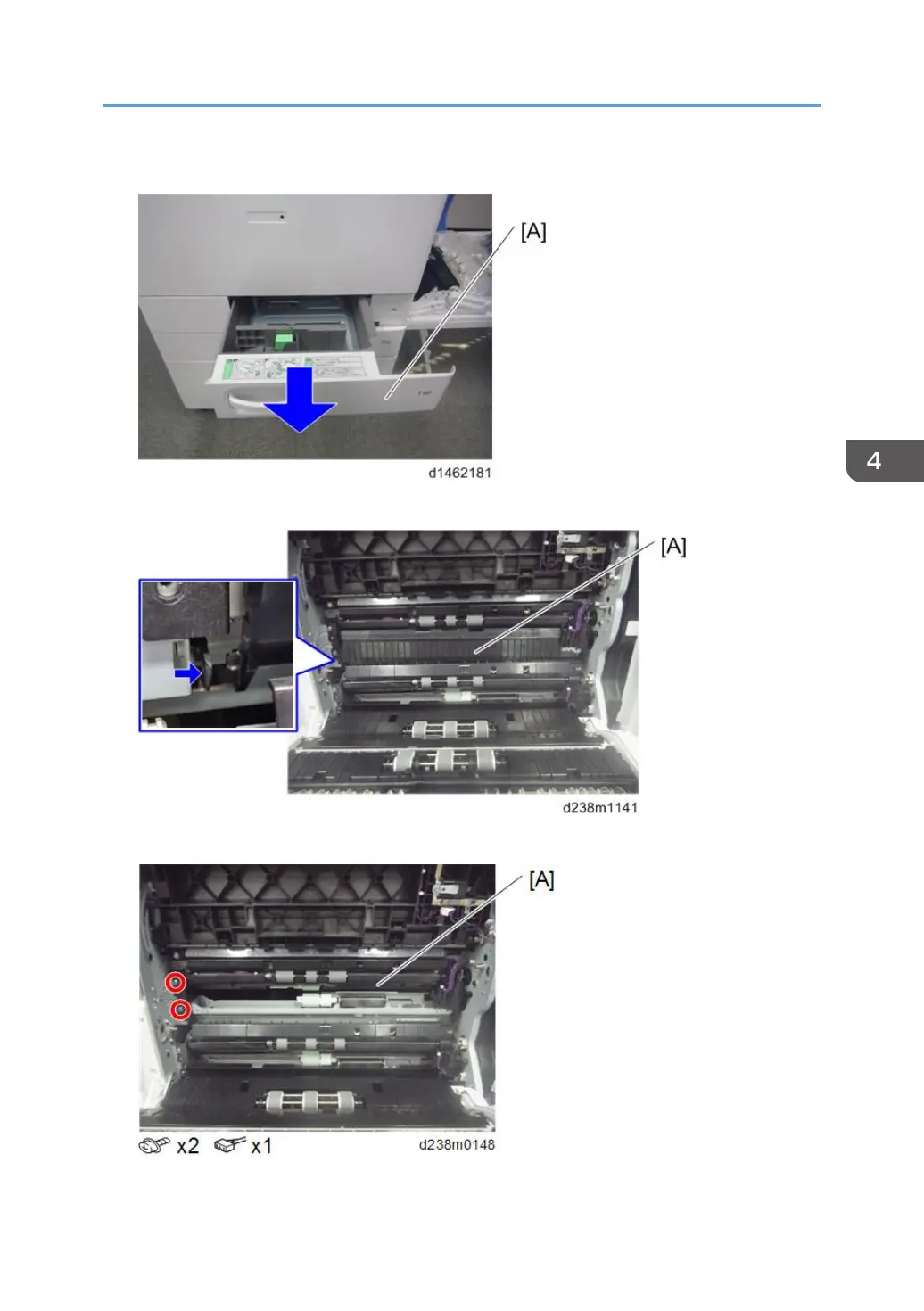

2. Pull out the 1st paper tray [A].

3. Press the left tab to release the lock, and remove the paper feed guide plate [A].

4. 1st paper feed unit [A]

Paper Feed

653
