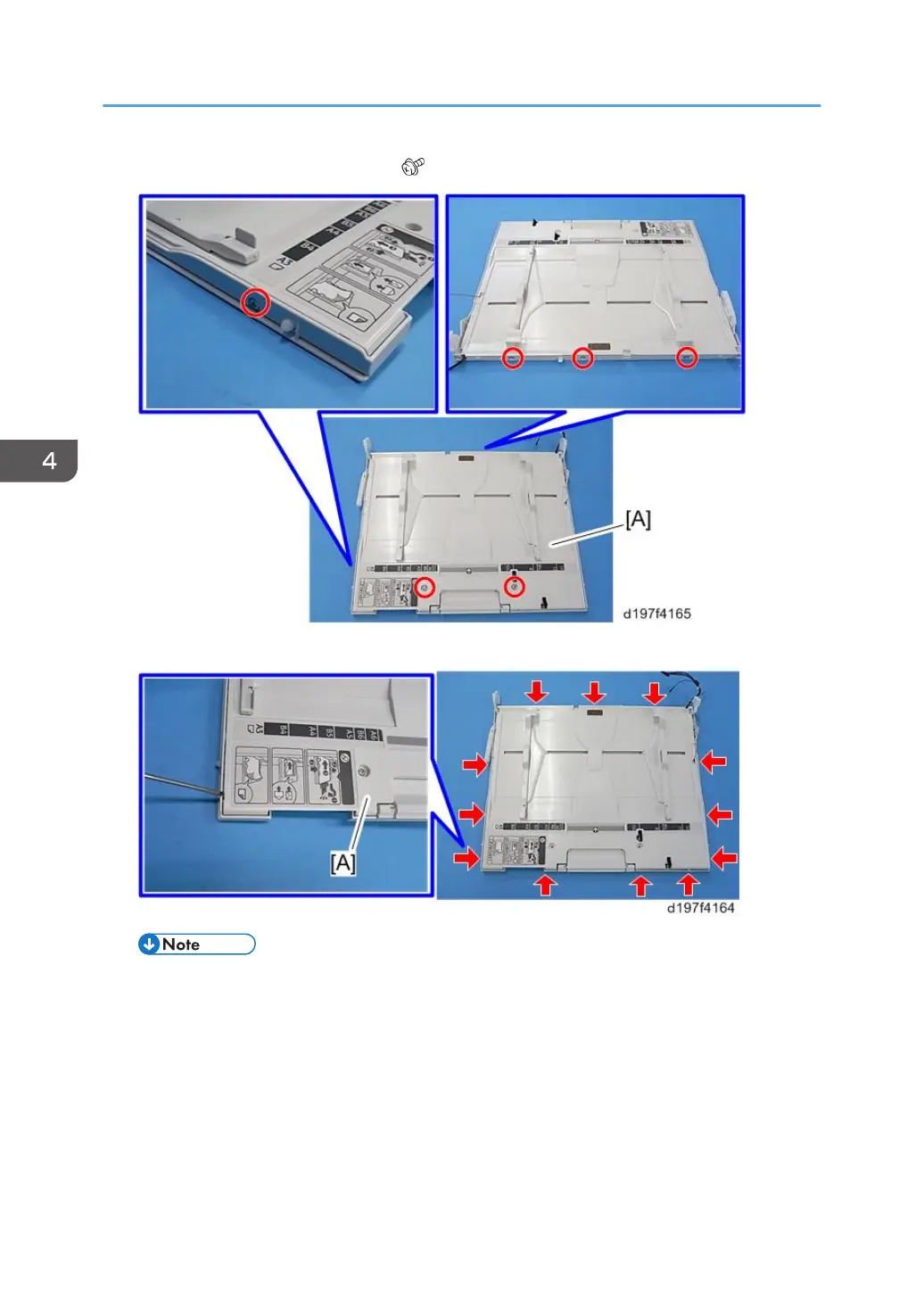

2. Six screws on the bypass tray [A] ( ×6).

3. Release the hooks around the bypass tray [A]

• There is a hook in the tray cover. Be careful not to damage it during removal or installation.
