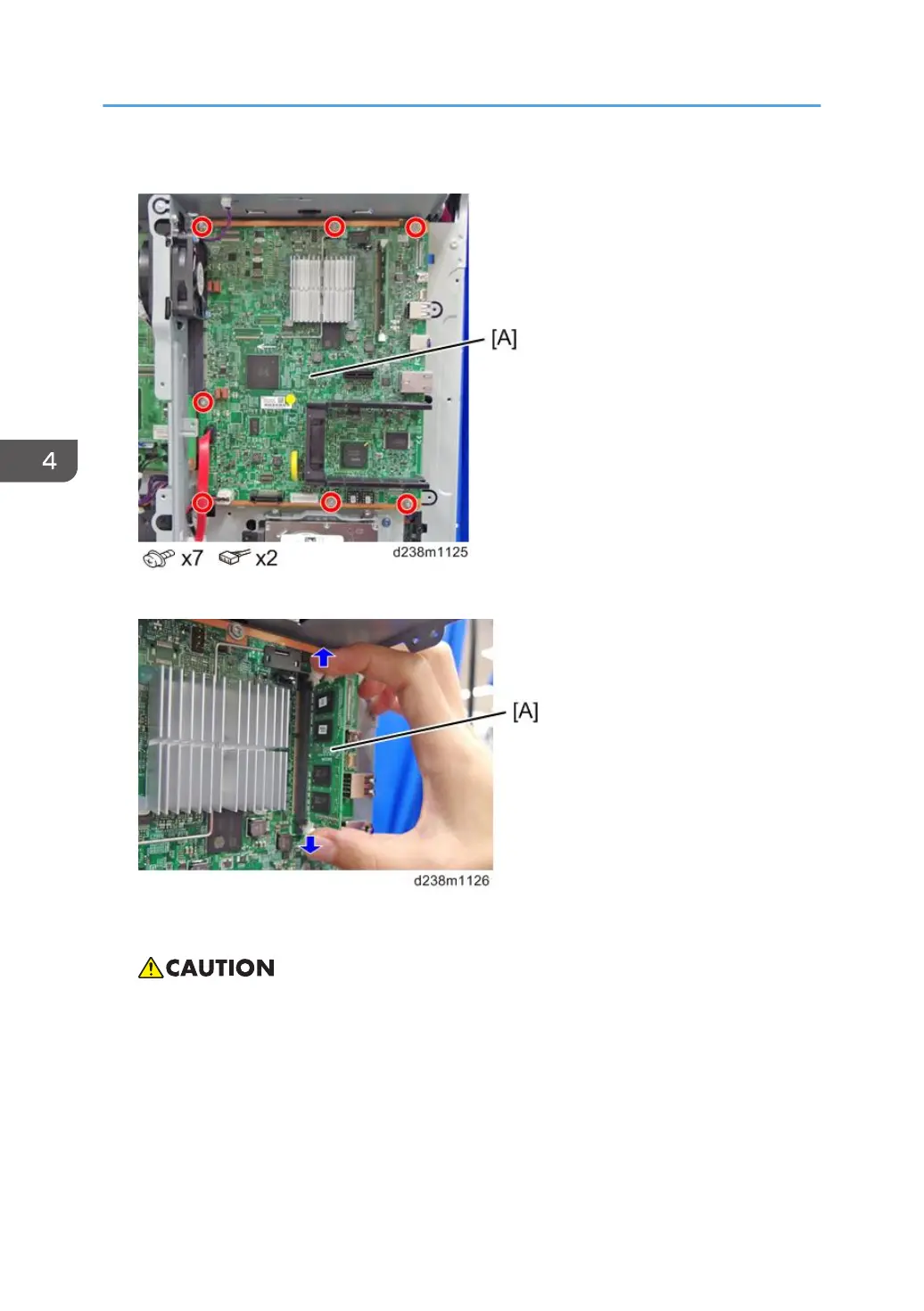

4. Controller Board [A]
5. DIMM [A]
6. Remove the two used NVRAMs from the old controller board and install them on the new
controller board.
• Make sure that the FRAM1 and FRAM2 are placed at the right position and orientation when
attaching to the new board.
• Incorrect installation of the NVRAM will damage both the controller board and NVRAM.
