2. Controller box cover (page 685)
3. Disconnect the FFC between IPU-Scanner Unit while pressing the lock release button.
(page 685)

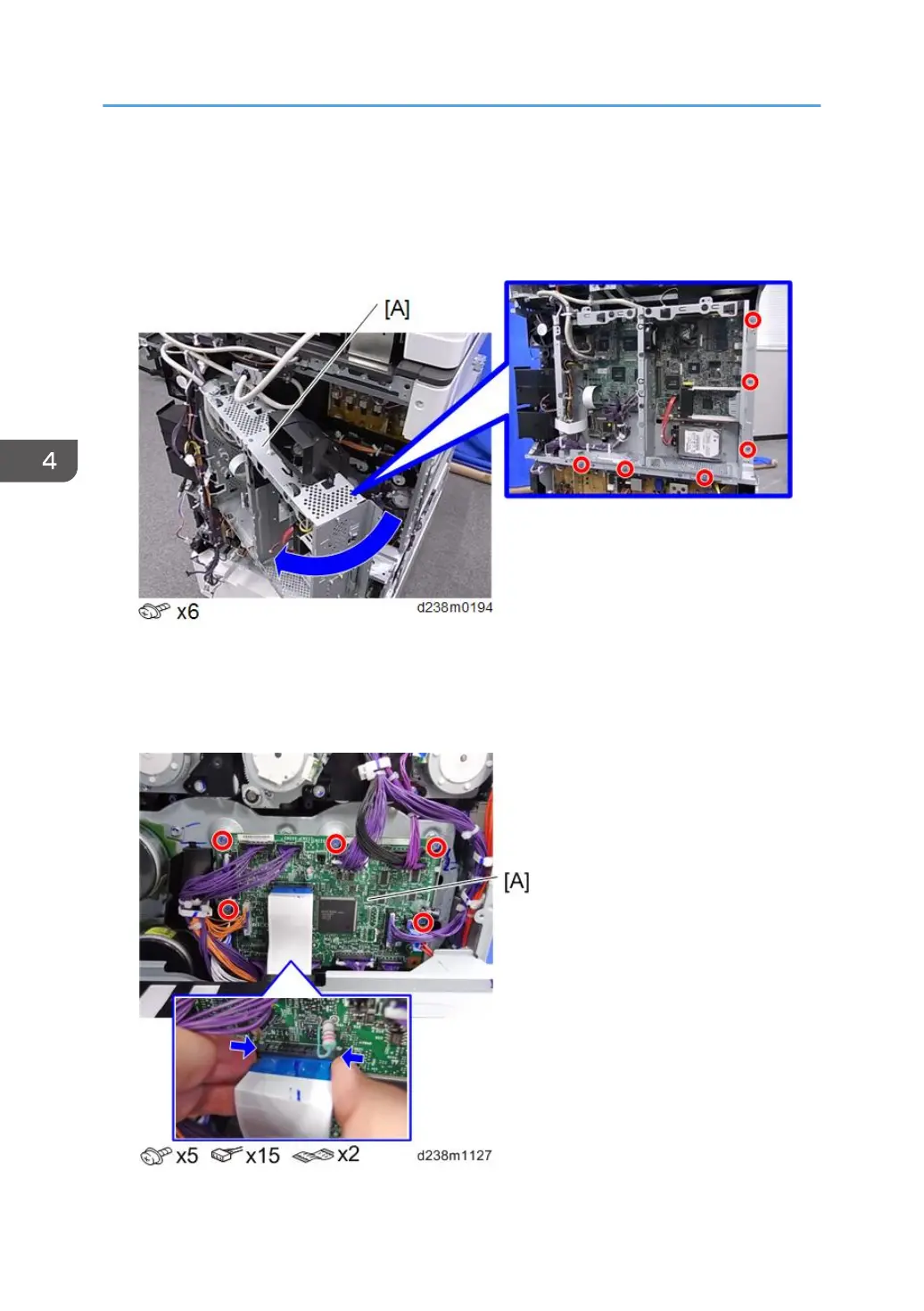

4. Open the controller box [A].
5. Imaging IOB [A]
Disconnect the FFC while pressing the lock release levers on its sides. Disconnecting the FFC
without releasing the lock may cause the FFC or connector to be damaged, resulting in an SC670
error.
