Ricoh MP C3004 - Page 80

To Next Page

To Previous Page

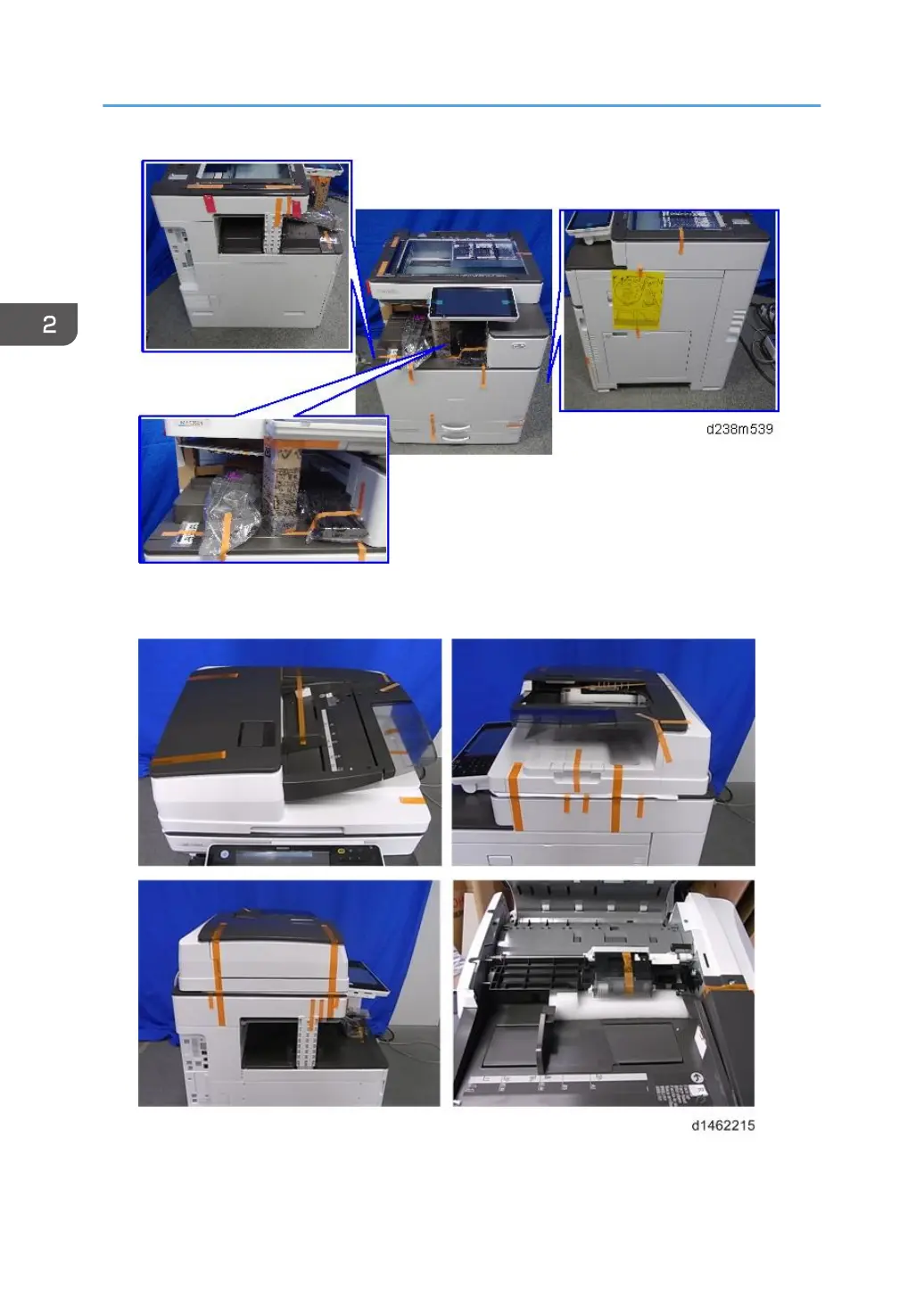

For a model on which SPDF DF3100 is preinstalled, remove the orange tape and retainers on the

SPDF.

For a model on which ARDF DF3090 is preinstalled, remove the orange tape and retainers on the

ARDF.
