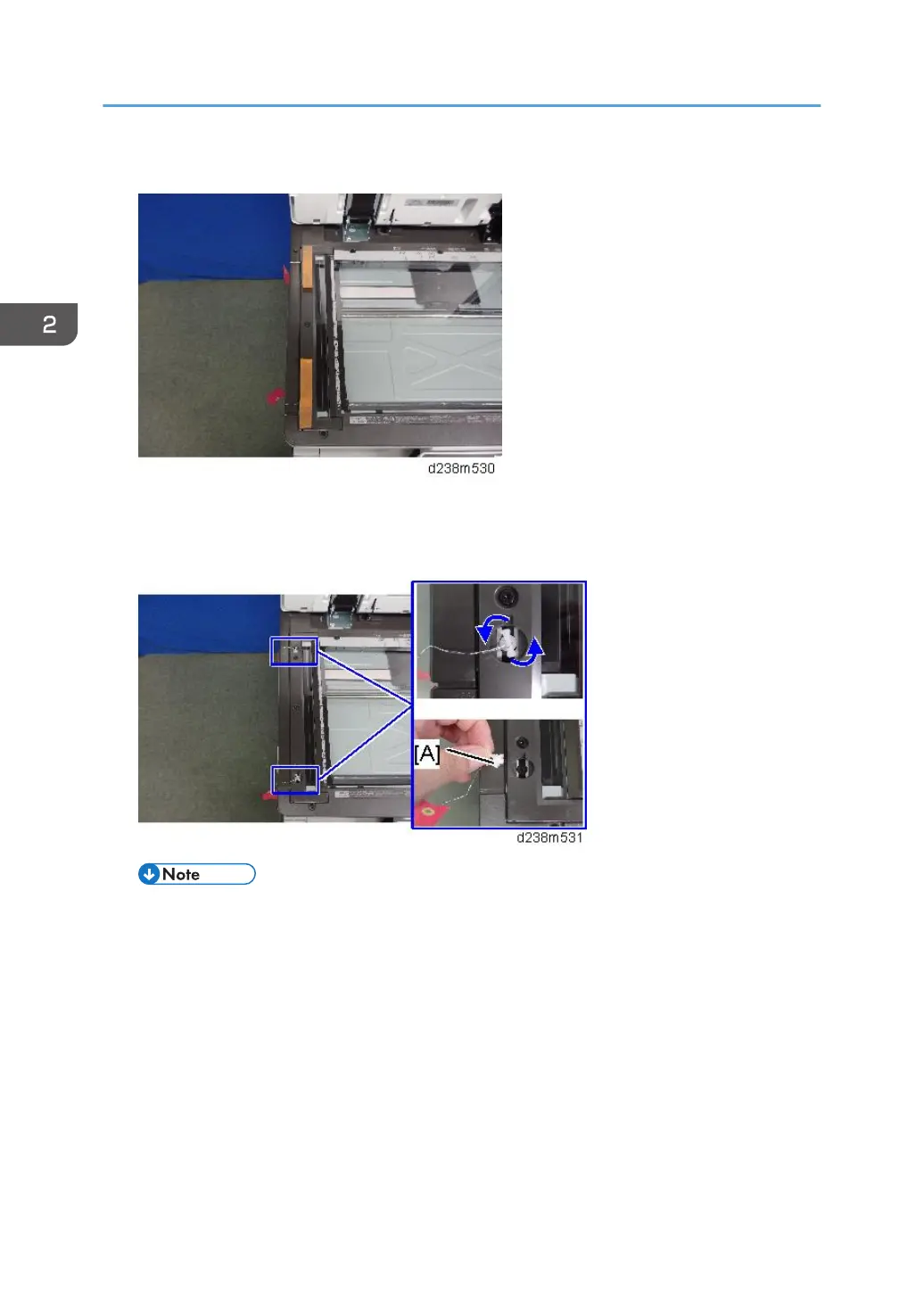

4. Remove the orange tape on the scanner shipping locks.
5. Remove the two scanner shipping locks [A] by rotating them 90 degrees counter
clockwise.
SC120 is displayed when the machine is turned ON with the shipping lock attached.
• Keep the scanner shipping locks after installing the machine. The scanner shipping locks must
be installed before moving the machine using methods in which the machine will not always
be level, such as by truck over rough ground, or by ship.
• Before moving the machine, make sure to move the scanner carriage to the correct position
with SP4-806-001 and reattach the shipping locks.(page 101 "Moving the Machine")
2. Installation
74
