Operator Manual
16
of 52 SPR2-310.620.30.02.02
Examination

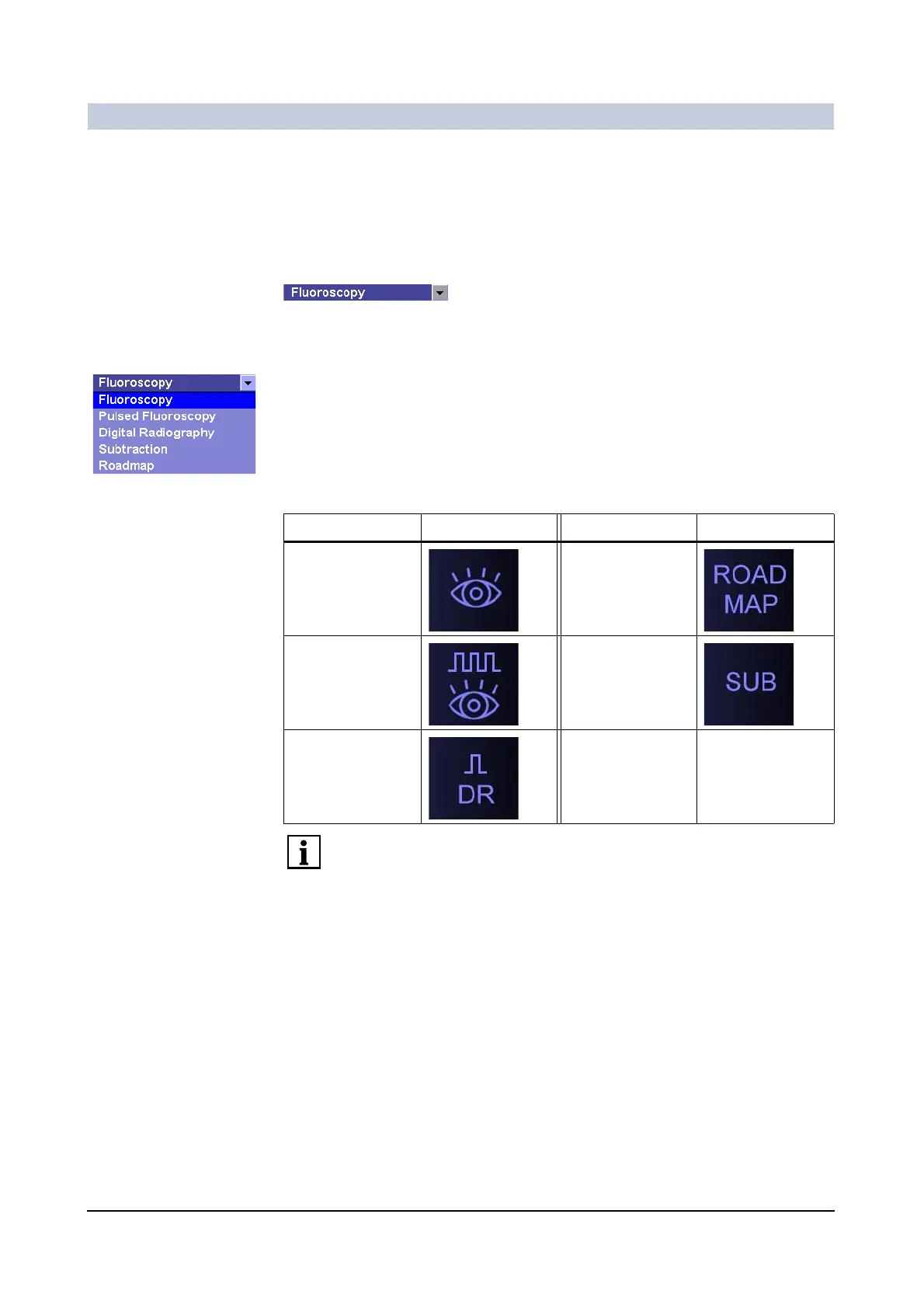

Operating mode 0
The different operating modes are defined in each examination set. They can be
activated at the monitor trolley and at the C-arm system as well as with the
multifunctional footswitch (option). The default setting is Fluoroscopy:
Switching the
operating mode
â—† Use the selection list to select another operating mode, if necessary.
Or
â—† Press the corresponding icon button at the C-arm system.
(→ Register 3: System Description).
– The selected operating mode is displayed as a symbol in the control area.
Using the footswitch, the operating mode can be changed temporarily, depend-
ing on the pedal actuated.
(→ Register 3: System Description)
With an additional operating element on the (optional) multifunctional footswitch
you can select the operating mode permanently.
(→ Register 11: Options, Page 8)
During the exposure, the Examination task card always shows the symbol of the
operating mode in which radiation is released. If no radiation is released, you will
see the symbol of the operating mode currently selected at the control panel of
the C-arm system or in the Examination task card.
Standard Symbol Option Symbol
Fluoroscopy Roadmap
Pulsed
Fluoroscopy
Subtraction
Digital
Radiography
