Siemens ARCADIS Varic Operator's Manual

Operator Manual
76
of 78 SPR2-310.620.30.02.02
Image Processing
Layout in the References task card 0

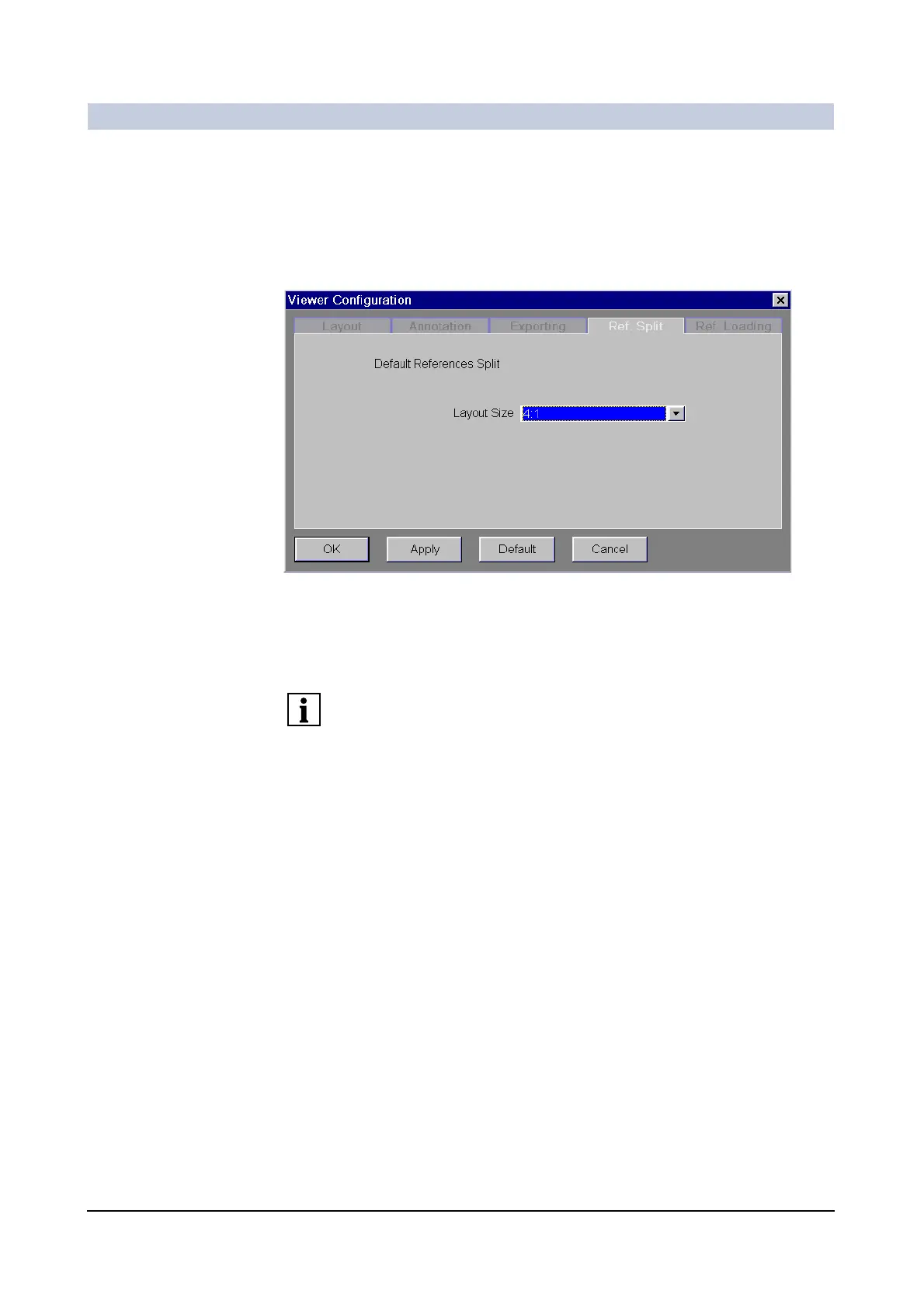

The Ref. Split card lets you determine how to split the image area in the
References task card when the Monitor split button at the C-arm system is
pressed.
◆ Click the Ref. Split card into the foreground.
◆ Select the size of the layout from the selection list.
– Loaded images are displayed in the selected layout size in the References
task card when the Monitor split button is selected on the C-arm system.
You can set the following layout sizes: 4:1, 9:1, 16:1.
The standard setting for the layout size is 4:1.

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
