Siemens ARCADIS Varic Operator's Manual

Operator Manual
8
of 28 SPR2-310.620.30.02.02
Safety

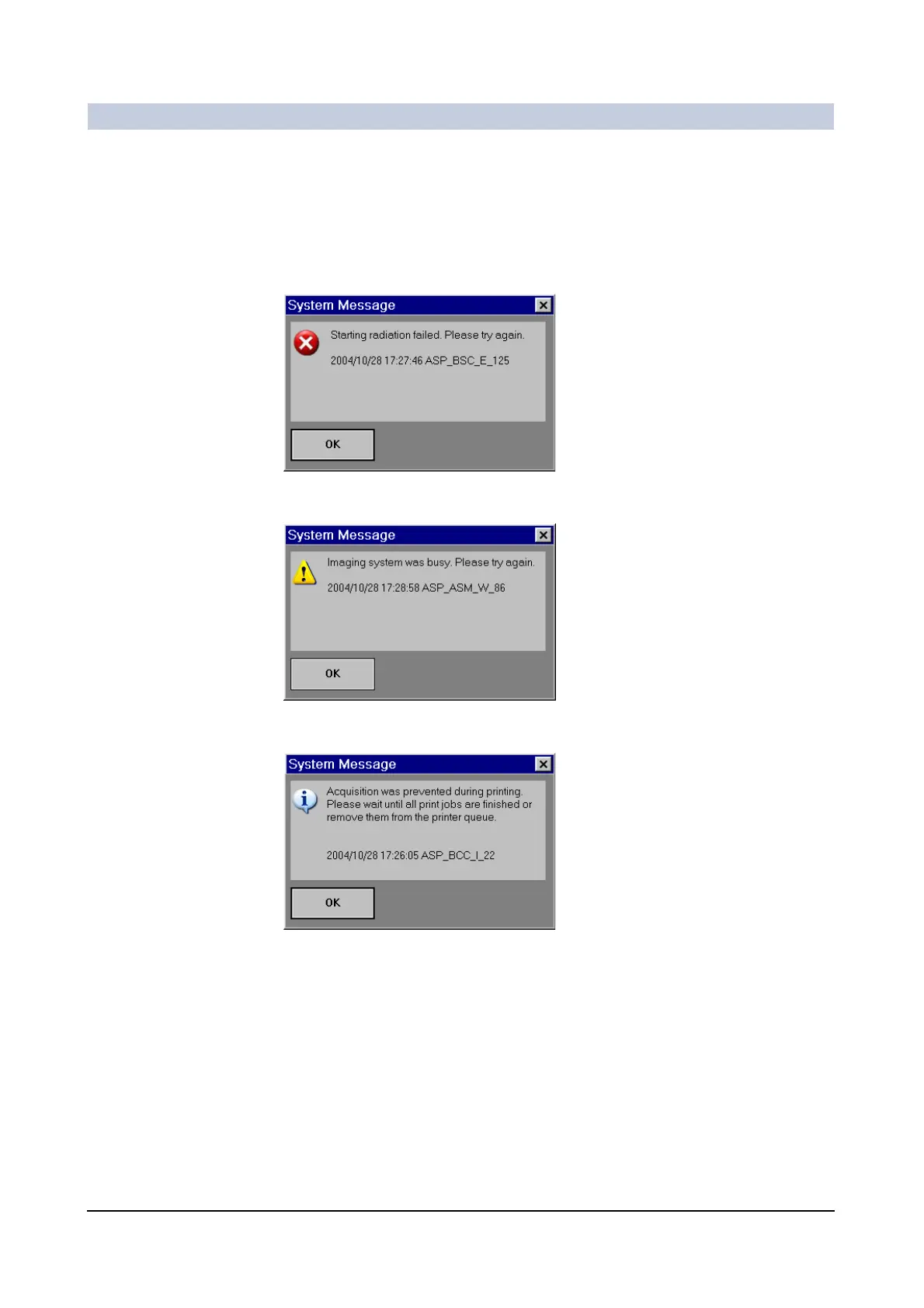

System messages on the monitor 0
Three different types of system messages can appear on the monitor. The type
of message is identified by a corresponding symbol (top left).
❏ Example of an error message:
❏ Example of a warning:
❏ Example of information:
You must confirm error messages with the OK button or the radiation release
button to be able to resume your work. However, warnings and information do
not disable radiation release.

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
