Siemens ARCADIS Varic Operator's Manual

Operator Manual
48
of 52 SPR2-310.620.30.02.02
Examination
Defining designations for stone locations 0

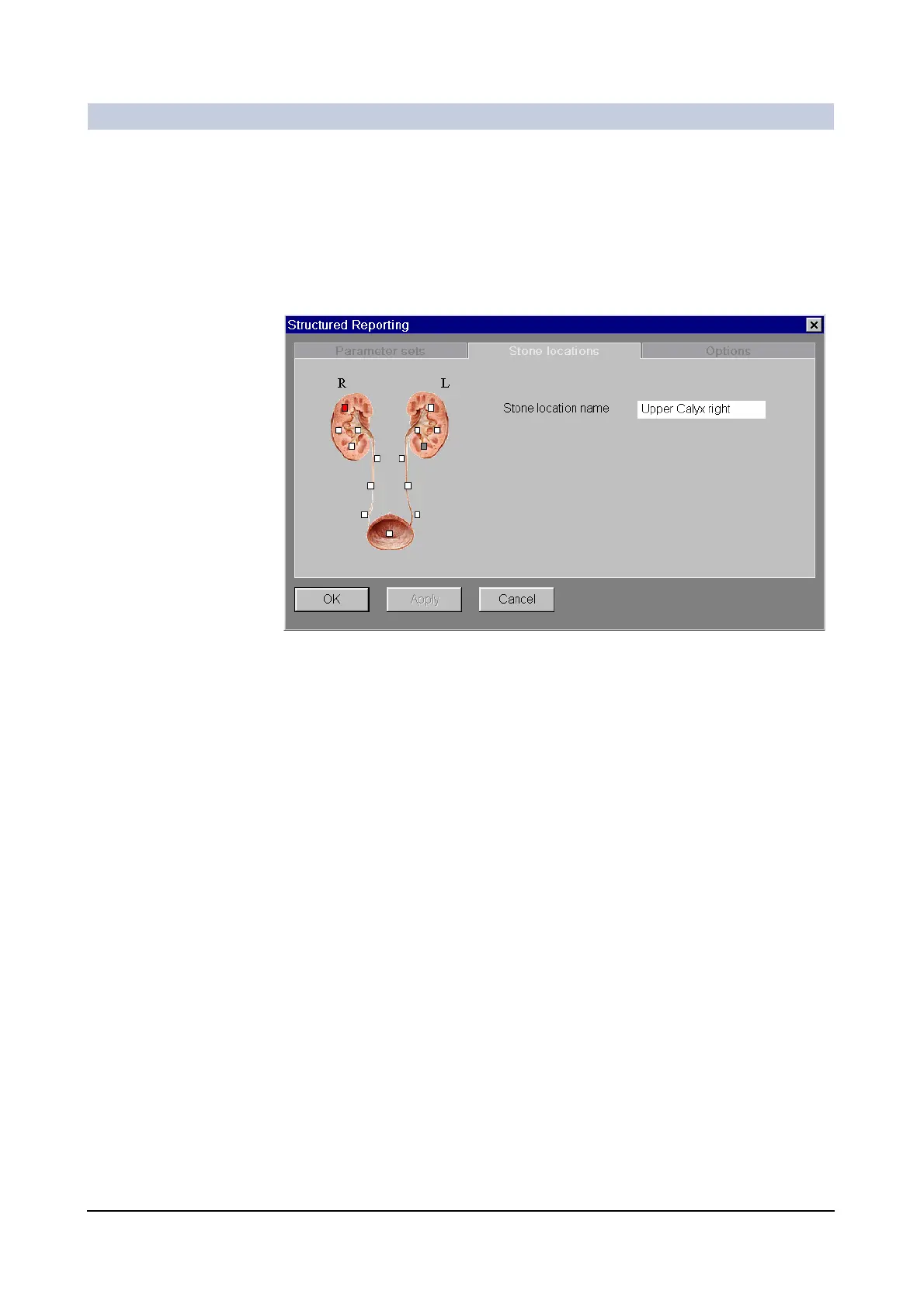

On the Stone locations card, typical body positions for nephroliths are displayed.
Every position is marked by a small square. You can give a name to each of these
locations.
◆ Click the Stone locations card into the foreground.
◆ Click on the square of the position to be named.
– If this position has already been named, the name will be displayed in the
entry field.
◆ Enter a suitable name.
◆ Proceed in the same way to name the other positions you require.

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
