Siemens ARCADIS Varic Operator's Manual

Operator Manual
56
of 98 SPR2-310.620.30.02.02
Documentation

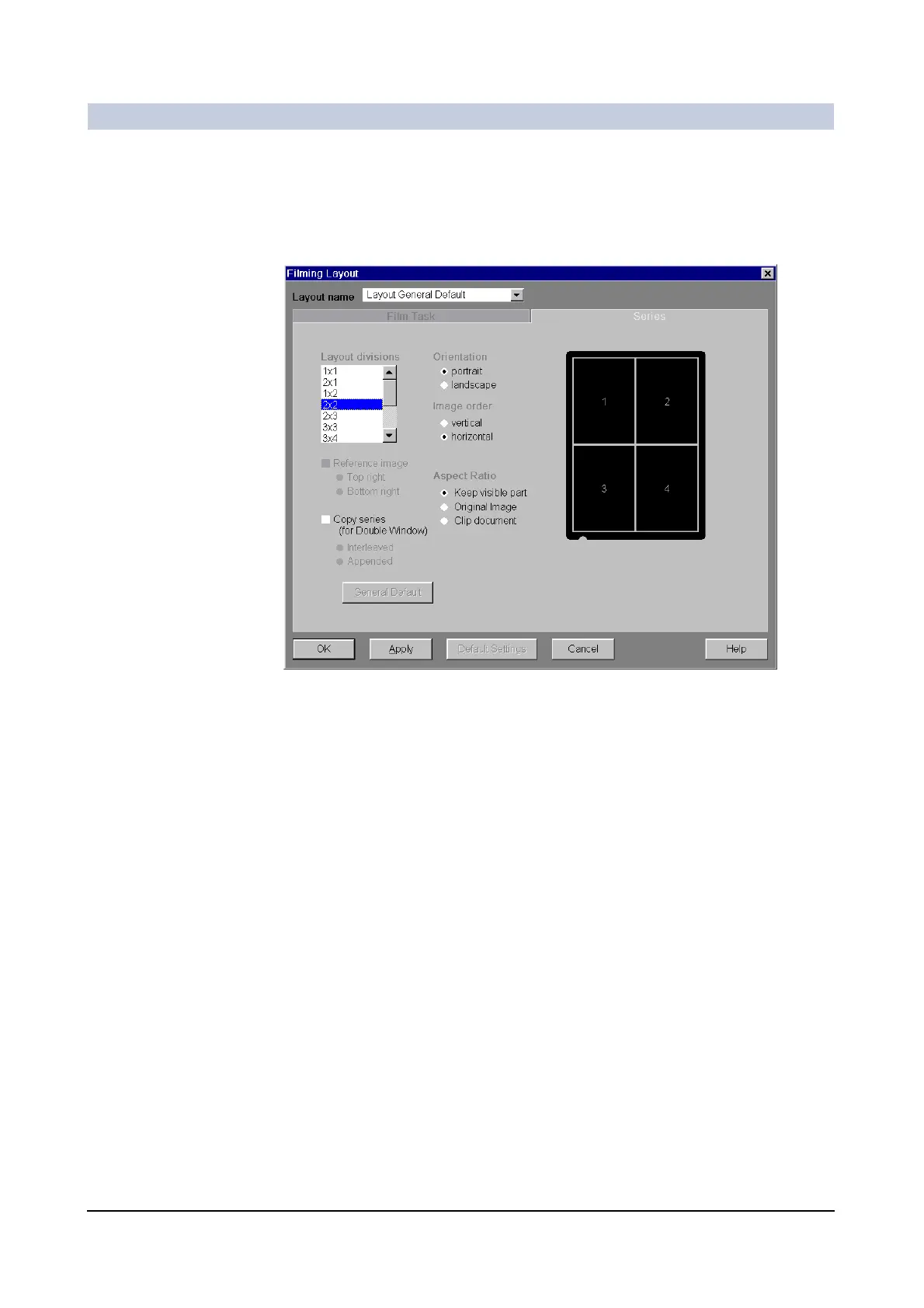

Configuring film sheets 0
On the Series card, you define with what settings a film sheet is exposed or
printed.
Selecting the film
sheet division
◆ In the Layout divisions selection list, you define the required number of
columns and rows for a film sheet.
– The division is shown in a diagram in the display window.
Selecting the
orientation
◆ Select portrait for exposing on film/printing on paper.
Or
◆ Select landscape for exposing on film/printing on paper.

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
