Image Processing
The Viewing task card 0
As soon as you have loaded images into the Viewing task card, the task card
moves into the foreground. You can, however, switch to other applications at any
time and resume image processing on the Viewing task card later.

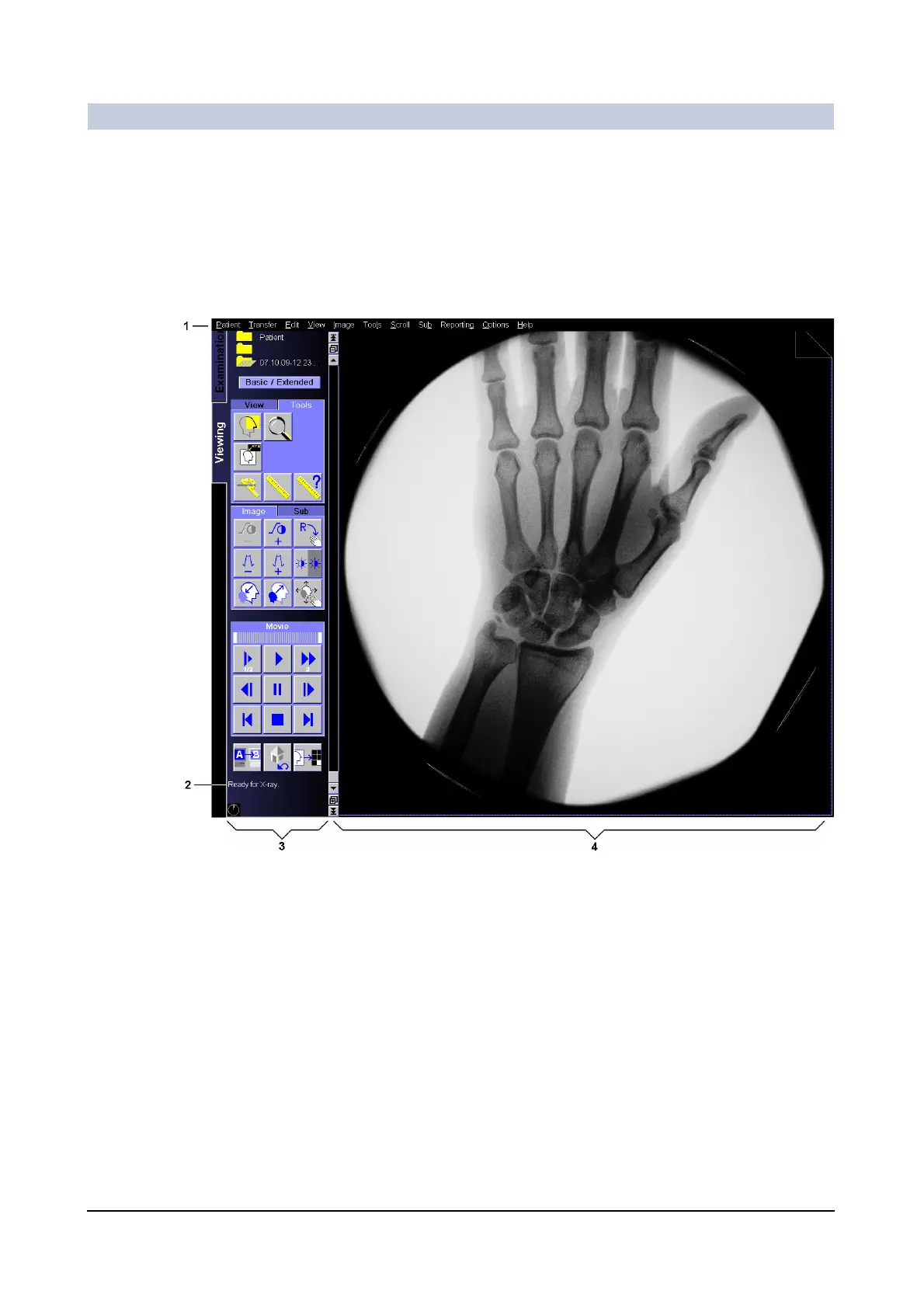

The Viewing task card is divided into four areas.
(1) Menu bar with specific entries for viewing and processing images
(2) Status bar for system messages
(3) Control area
(4) Image area

Siemens ARCADIS Varic Specifications

General

Type	Mobile C-arm
Image Intensifier	9-inch or 12-inch
DICOM Compatibility	Yes
Frame Rate	Up to 30 fps
Focal Spot Size	0.3/0.6 mm
Monitor	Dual 18-inch TFT LCD monitors
