System Description
Lifting and lowering the C-arm 0
You can lift and lower the C-arm by motor control using the arrow keys on the
control panel of the C-arm system. The lifting column can be lowered to
position 1 and further down to position 2.

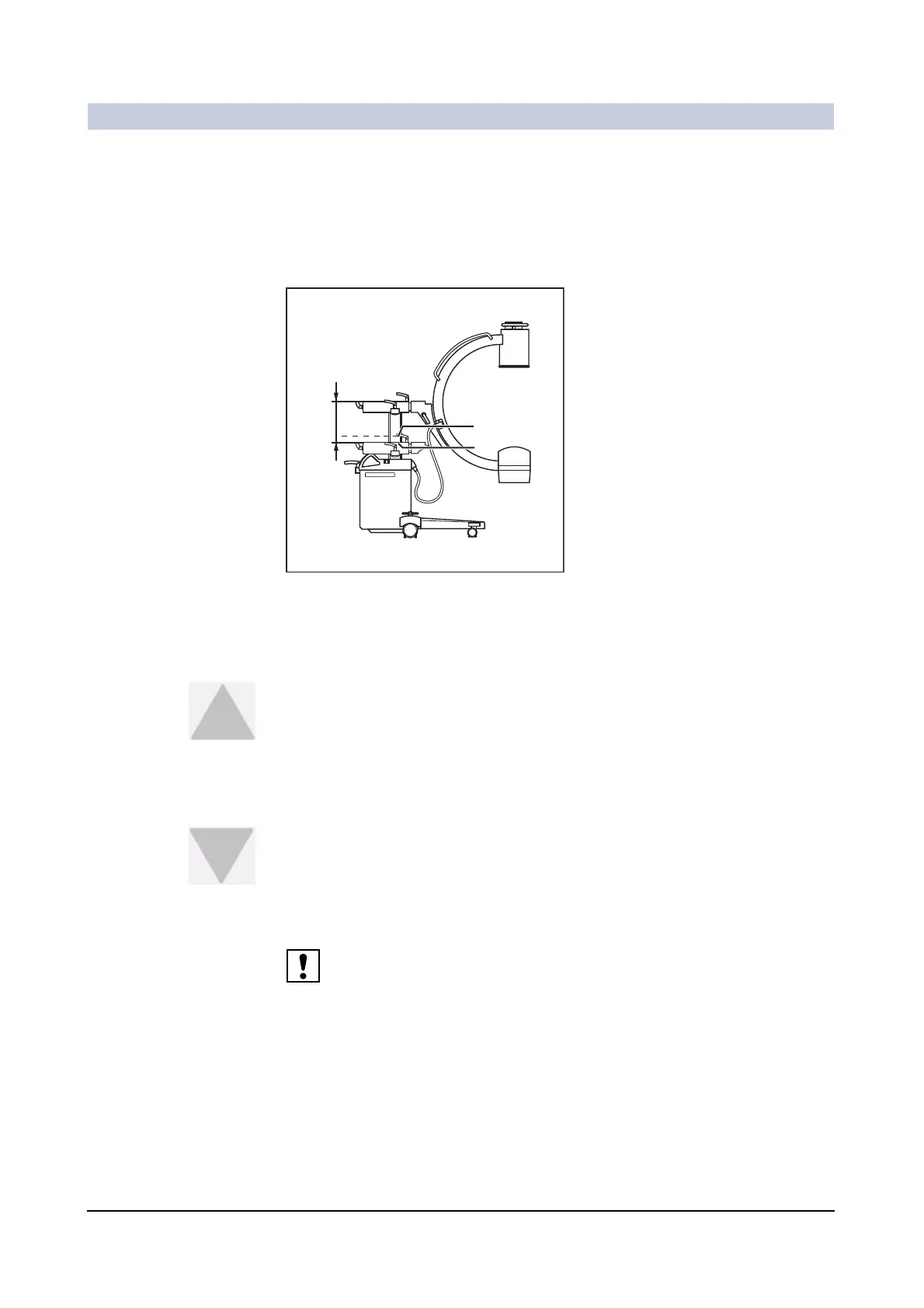

(1) C-arm in position 1
(2) C-arm in position 2
Lifting the C-arm
â—† Press the Up key on the control panel of the C-arm system.
– The lifting column moves upwards.
Lowering the C-arm
â—† Press the Down key on the control panel of the C-arm system.
– The lifting column then moves to position 1 and automatically stops there.
A signal sounds.
â—† Press the Down key on the control panel of the C-arm system once more.
– The lifting column is lowered further.
The lifting column can be lowered to position 2. For safety reasons a signal
sounds each time the Down key is pressed.
45cm
(2)
(1)
