Image Processing
ARCADIS Varic
SPR2-310.620.30.02.02 51
of 78
Changing the angle You can change the legs of an angle independently of one another.
â—† Move the mouse cursor into the image.
– The shape of the mouse cursor changes at the positions where you can
change a leg of the angle.
â—† Move the entire line or drag an end point to another location.
Switching the angle
direction
You can also have the complementary angle displayed (difference of 180° - angle
measured).
â—† Select the angle.
â—† Select Other Angle from the context menu (right mouse button).
– The angle is now measured counterclockwise and the new value is dis-
played.

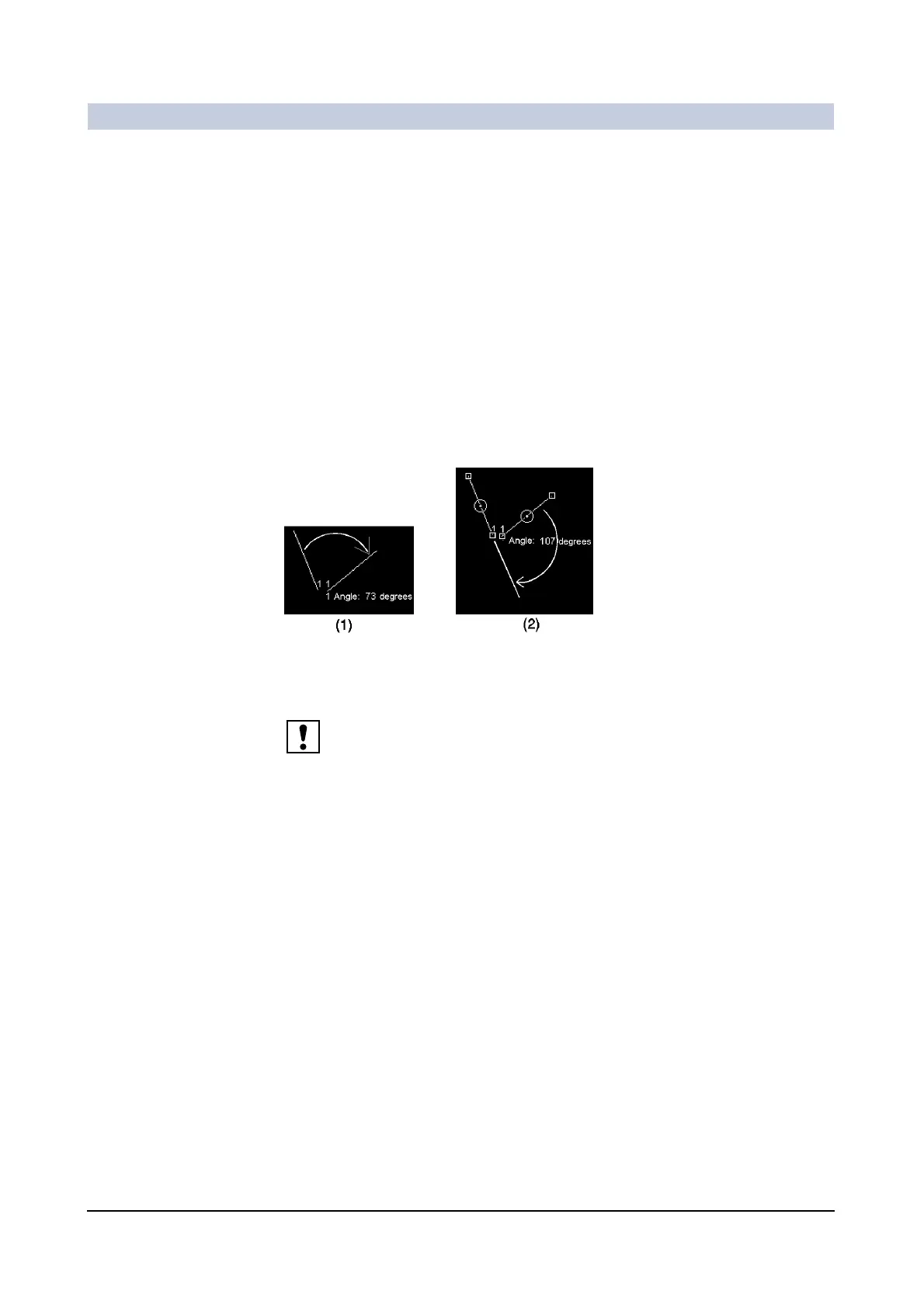

(1) Angle between the legs
(2) Complementary angle
If the angle approximates to 90°, 180°, 270°, it is not clear whether the angle
between the legs or the supplementary angle has been drawn.
Therefore, annotate the angle when you display the supplementary angle.
