FUNCTIONAL DESCRIPTIONS, Main Unit
Sysmex SF-3000 Operator's Manual -- Revised February 1996 10-25
9.5 Front Interior
(1) HGB Detector Block
(3) Reaction Unit
(4) Blood Aspiration Sensor
(5) Sample Rotor Valve (SRV)
(6) Rinse Cup
(7) RBC Detector Block
(8) Valve Unit No. 92
(9) Whole Blood
Aspiration Pump
(10) Whole Blood
Aspiration Motor
(2) Rinse Motor

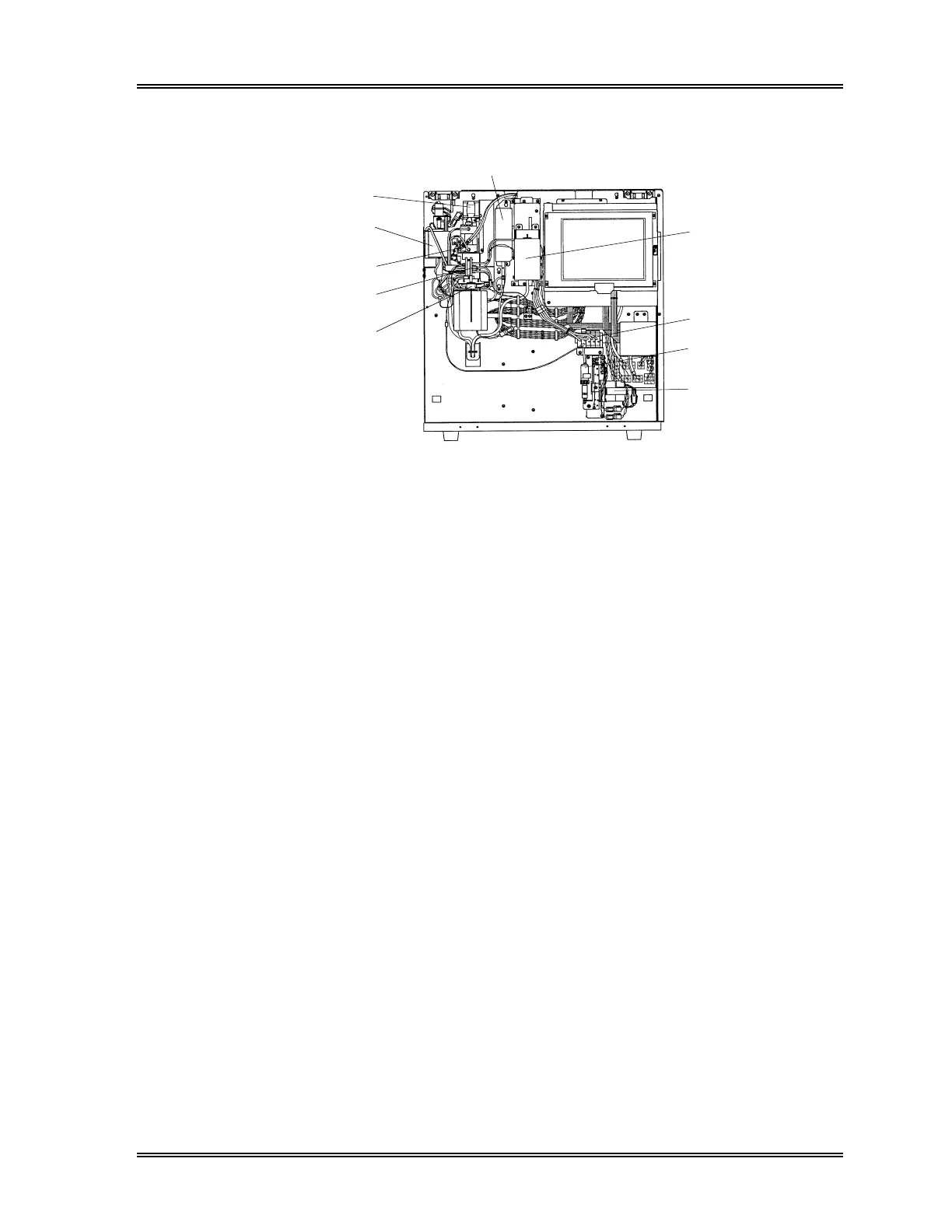

Figure 10-21: Main Unit – Front Interior
(1) HGB Detector Block
Contains HGB detector unit.
(2) Rinse Motor
Drives the Manual Rinse Mechanism.
(3) Reaction Unit
WBC reagents are added to WBC samples, temperature-controlled. Then, the
sample is sent to the WBC detector for analysis.
(4) Blood Aspiration Sensor
Monitors whole blood aspiration when using the sampler and manual closed
modes.
(5) Sample Rotor Valve (SRV)
Aliquots the aspirated whole blood sample.
(6) Rinse Cup
Rinses and wipes the manual pipette every operation cycle to eliminate the
carryover from the previous sample.
(7) RBC Detector Block
Contains RBC detector.
(8) Valve Unit No. 92 Assembly
Controls the fluid flow. This assembly includes Solenoid Valves SV1 through
SV4, and Master Valve MV1.
(9) Whole Blood Aspiration Pump
Aspirates the whole blood sample.
(10) Whole Blood Aspiration Motor
Drives the whole blood aspiration pump.
