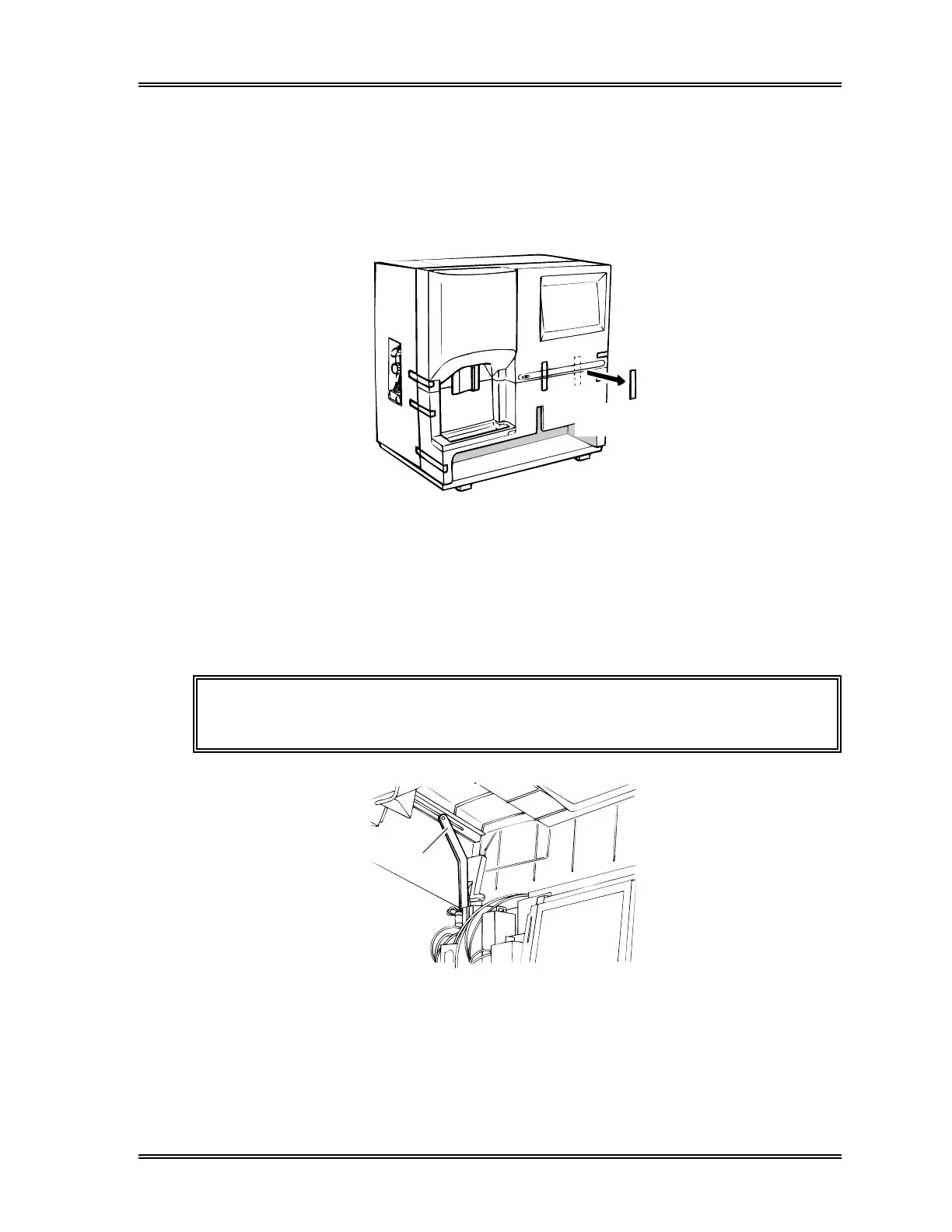

INSTALLATION
Sysmex SF-3000 Operator's Manual -- Revised September 1995
B
-7
3
.
REMOVING PACKING MATERIAL
3
.
1
Front Cover
Remove the tapes fastening the front cover.
Remove the
tapes
Figure B-2:
Remove the Tapes
3
.
2
Front Panel
(1)
Open the front cover.
WARNING!
When working with the front cover open, make sure that the stop
bar is in place.
Stop Bar
Figure B-3:
Set Stop Bar
(2)
Remove the screws fastening the front panel.
537
539
Table of Contents
Chapter 2 Sample Processing
38
Table of Contents
38
Introduction
39
Summary of Operation Mode
39
Operational Procedures in each Mode
40
Operator Checks
41
Start-Up Procedure
41
Self-Checks
42
Turning on the Power
42
Auto Output Settings Check
44
Pressure Gauge Check
44
QC Analysis: Manual Mode
45
Quality Control Analysis
45
QC Analysis: Auto Mode
50
QC Analysis: Manual Closed Mode
51
QC Analysis: Manual CP Mode
55
Analysis Mode Procedures
56
Manual Mode
56
Capillary Mode
61
Auto Mode
67
Manual Closed Mode
75
Manual CP Mode
81
Shutdown
87
Shutdown Procedure
87
Restarting the Pneumatic Unit
89
Timer Mode
89
Chapter 3 Work List
90
Introduction
91
Order Inquiry Method
91
Executing a Work List Program
92
Work List Display
92
Data Entry
93
Download List
96
From Host Computer (HC)
96
From Floppy Disk (FD)
98
All Data
100
Delete
100
Marked Data
101
Current Data
102
Gp Output
103
Backup
104
Chapter 4 Result Interpretation/ Reports
107
Introduction
109
Interpretive (Ip) Messages
110
List Display/Stored Data
116
Sample Information Screen
118
CBC8 Screen
121
Wbc+5Diff# Screen
122
RBC/PLT Screen
124
IP Messages Screen
126
Graphic Display
128
Data Validation
132
Mark Data
133
Select Display
134
Select by Flagging
135
Select by Date
137
Select by no Output
139
QC Data
141
All Samples
142
Read FD
143
Search Stored Data
146
Top/Bottom
146
By Sample no
147
Same Day
148
By Date
149
Sequence Order
151
Sort Stored Data
151
Sample No. Order
153
Edit Sample Information
154
Sample no
155
ID Read Status
156
POS to NEG
156
Output Stored Data
157
Current Data
159
All Data
160
Marked Data
160
Cancel
161
Backup (FD)
162
Delete
166
Current Data
167
Marked Data
168
All Data
169
Auto Output
170
Chapter 5 Maintenance & Supplies
171
Introduction
172
Clean Detector Chamber and Manometer (Shutdown)
175
Daily Maintenance
175
Remove Fluid from Pneumatic Unit Trap Chamber
177
Clean SRV Tray
178
Weekly Maintenance
178
Execute Clean WBC Detector Sequence
180
Clean Orifice
185
Monthly Maintenance
185
Execute Clean Waste Chamber Sequence
187
Clean Sample Rotor Valve (SRV)
192
Visual Inspection for Laser Safety
197
Yearly Maintenance
197
As Needed Maintenance
200
Clean Manual Rinse Mechanism
200
Execute RBC Aperture Clog Removal Sequence
202
Execute Clean RBC Transducer Sequence
204
Clean RBC Detector Aperture
209
Execute WBC Flow Cell Air Bubbles Removal Sequence
212
Execute Replace Sheath Flow Reagent Sequence
214
Replace Waste Container (if Used)
216
Replace Reagent
217
Replacements
217
Reagent Log
221
Replace the Piercer (Auto Sampler Unit)
222
Replace the Piercer (Manual CP Unit)
229
Replace the Hand Clipper (Auto Sampler Unit)
233
Replace the Rubber Plate No. 39 (Auto Sampler Unit)
234
Replace the Fuses
236
Replace the Belt No. 6
238
Reset the Counter
240
Format Fd
243
Chapter 6 Quality Control
246
Introduction
247
QC Parameters to be Monitored
248
Types of QC Method
248
Delete File
249
System Settings
251
Qc Parameter Selection
253
Selecting QC Parameter ( X /L-J Control)
253
Selecting QC Parameter ( X M Control)
254
Executing the X M Control Settings Program
256
Setting X M Control
256
Display
259
Target/Limit
259
Read FD (Floppy Disk)
261
Help
265
Auto Setting
267
Manual Change
271
Lot Information
274
Qc Chart
277
Select File
279
Output QC Chart/Data
280
Mean/Sd (Calculation)
282
Delete Plot
284
Cal. History
286
Manual Qc Analysis
287
Sampler Qc Analysis (L-J)
290
Control
293
L-J Control
293
Qc Methods and Applications
293
M Control
294
How Target Values Are Calculated
297
Variable Target Function and Erroneous Data
298
Control Chart Definition
299
Chapter 7 Calibration
300
Calibration Implementation Standards
301
Introduction
301
Calibration Samples
302
Reference Values
302
Hgb/Hct Auto
303
Overview of the HGB/HCT Auto Program
303
Setting (Entering Reference Values)
306
Analyze (Analyzing)
308
Exclude (Excluding and Recovering Data)
310
Exe. Cal. (Calibrating)
312
Graphic (Displaying Graphs)
314
Calculating the Compensation Factor
315
Hgb/Hct Manual
315
Executing the HGB/HCT Manual Program
316
Calibration History
318
Displaying the Cal. History
318
Deleting the Cal. History
319
Outputting the Cal. History
320
Table of Contents
325
Reaction Chamber Temp High
333
Reaction Chamber Temp Low
333
Replace Reagent Container FBA
336
Replace Reagent Container FDO
336
Replace Reagent Container FDT
336
Replace Reagent Container PK (1)
336
Replace Reagent Container PK (2)
336
Replace Reagent Container PK (3)
336
Replace Reagent Container SLS
336
Rinse Motor Function Error
340
Sample Not Asp Error
343
Sampler Start Error (Blood Sensor)
355
Sampler Start Error (Sensor 4)
355
Sampler Start Error (Sensor 5)
355
Set Manual Piercer Cover
356
Set Piercer Lid
356
Short Sample
364
Stored Data Error
368
Stored Data Full
369
Chapter 9 Adjustment
417
Introduction
418
Pneumatic Gauges
418
Pressure/Vacuum Display
418
Displaying the Monitored Values on the LCD
419
Pneumatic Unit Adjustment
420
Adjusting the 2.0 Kg/CM
421
Adjusting the Vacuum
422
Main Unit Adjustment
422
Adjusting to 0.6 Kg/CM
423
Adjusting to 0.5 Kg/CM
424
Adjusting the 250 Mmhg Vacuum
425
Lcd Contrast Adjustment
426
ID BAR CODE READER ADJUSTMENT (Option)
427
Chapter 10 Functional Description
429
Introduction
430
Detection Principles
431
Flow Cytometry by Semiconductor Laser
431
DC Detection Method
432
SLS-Hemoglobin
432
Sample Flow Block Diagram
433
RBC/PLT Analysis Flow
434
Rbc/Plt/Hgb Analysis
434
HGB Analysis Flow
435
Red Blood Cell (RBC) Indices
436
4DIFF Analysis
437
Wbc Classification
437
WBC/BASO Analysis
438
Wbc Scattergrams
439
RBC Particle Size Distribution
441
Rbc/Plt Particle Size Distribution Analysis
441
PLT Particle Size Distribution
442
Particle Size Distribution Representation
443
Histogram Flags
444
Main Unit Electronic System
445
Front
447
Main Unit Components
447
Rear
449
Right Side
451
Left Side
453
Front Interior
454
Left Interior
455
Right Interior
459
Front
461
Right Side
462
Right Interior
463
Top Interior
463
Top
464
Top Interior
465
Reagent System
467
Chapter 11 System Setup
469
Introduction
470
Auto Management Programs
472
Auto Output Condition
475
Auto Output Mode (Data Specification)
477
Auto Erase
478
Auto Validation
480
Data Criteria
482
Mark Limits
485
Critical Limits
487
Sampler Stop Limits
489
Sampler Stop Condition
491
Flag System
493
Wbc
496
Rbc
498
Plt
499
Peripheral Configuration
501
HC Setting (Host Computer)
504
GP Setting (Graphic Printer)
506
DP Setting (Data Printer)
507
General Set up
510
Date/Time
513
Units
514
Password
516
Timer Mode
517
Normal Range Display
518
Date Format
520
ID Reader
521
Blood Sensor
523
Work List
525
Backup to FD
526
Output Set Values
526
Output to GP
526
Appendix B: Installation
532
Preinstallation
533
Unpacking Check List
533
Supplementary Parts Information
536
Layout and Work Space
537
Front Cover
538
Front Panel
538
Removing Packing Material
538
Main Unit Chassis
540
Rear Panel
541
Srv
541
Pneumatic Unit
542
Tray
542
BAR CODE ID READER (Optional
543
CP SAMPLER UNIT (Optional
544
Main Unit
544
Sampler Unit
545
Connection to Main Unit
546
Main Unit
548
MANUAL CP UNIT (Optional
548
Connection to Main Unit
549
Manual CP Unit
549
Pressure Line
553
Tube Connection
553
Vacuum Line
553
Reagent Container Preparation
554
Reagent Lines
557
Waste Container
558
Battery Backup
559
Output Connections
560
Power on
562
System Setup
562
System Check
563
Appendix C: Technical Information
567
Baud Rate/Character Structure
568
Communication Format
568
Connection
568
Input/Output Signals
568
Serial Interface for Host Computer
568
Interface Circuit
569
Signal Level
569
Software
570
Patient Sample Data Format
574
Text Format
574
Quality Control Data Format
578
Inquiry Data Format
580
Order Information Data Format
581
Applicable Bar Codes
583
ID Bar Code
583
Dimensions of Elements
584
Optical Requirements
584
Requirements on Wide/Narrow Ratio
584
Check-Digit
586
Dimensions of Bar Code Label
586
Applicable Characters
594
Effective Bar Code Length
594
4
Based on 1 rating
Ask a question
