INSTALLATION, Remove Packing Material
B-10 Sysmex SF-3000 Operator's Manual -- Revised September 1995
3.4 SRV

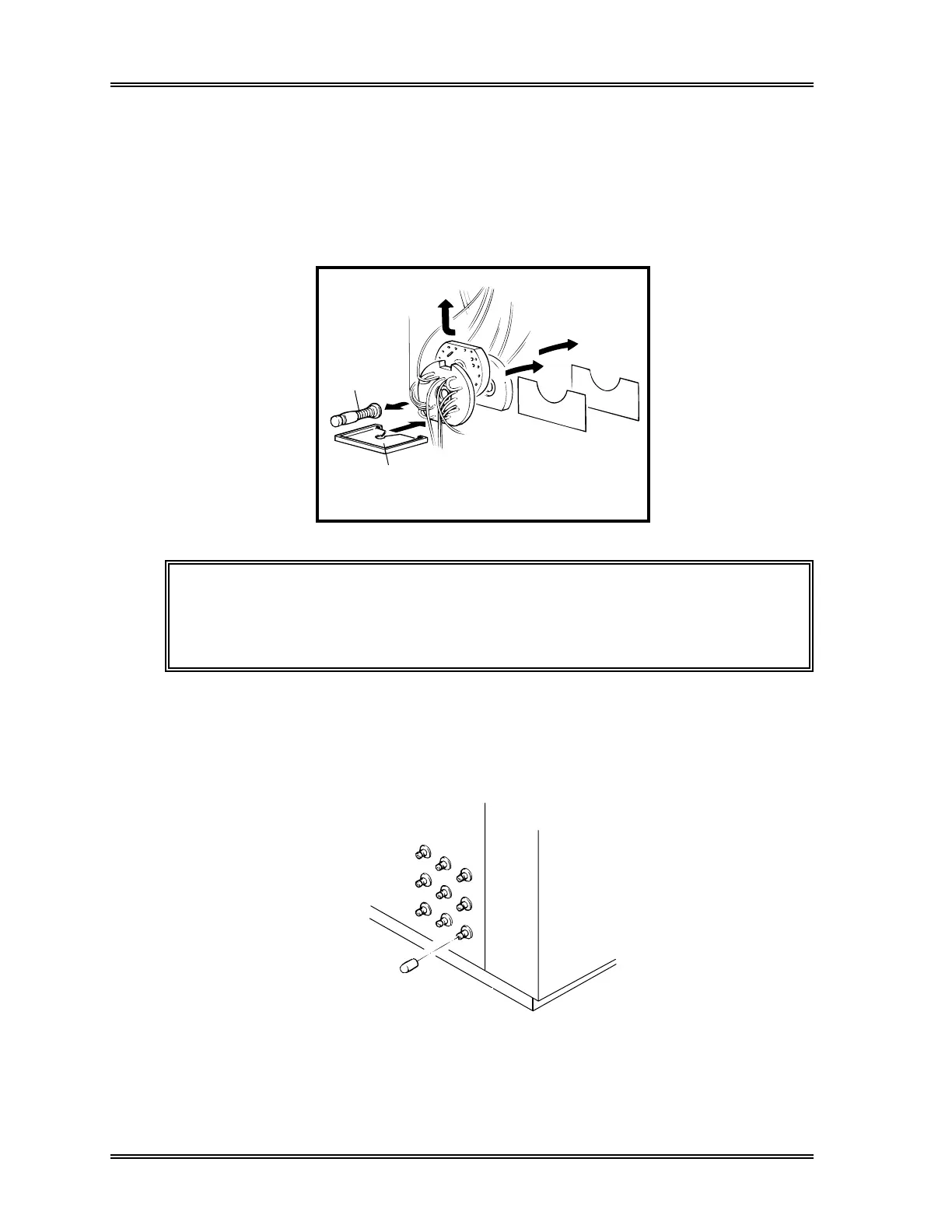

(1) Remove the constant-pressure thumbscrew and disassemble the SRVs.
(2) Take out the Teflon protection sheets.
(3) Reinstall the constant-pressure thumbscrew and install the supplied SRV tray on
the SRV.
Take out the
protection sheets.
Install the SRV tray.
Thumbscrew
Figure B-8: SRV
CAUTION: • Be careful not to damage the sampling valve surface; it may
cause leaks.
• Do not bend the manual aspiration pipette when pulling out the
valve.
3.5 Rear Panel
Remove the rubber caps protecting the reagent nipples.
Remove the rubber caps.
Remove the
rubber caps.
Figure B-9: Rear Panel
