INSTALLATION

B-12 Sysmex SF-3000 Operator's Manual -- Revised September 1995

5. BAR CODE ID READER (Optional)

NOTE: When using both the Sampler Unit and ID Reader, install the ID

reader and then Sampler for easier installation.

NOTE: If the sampler (CPSU-4) installation is not required, install the

sampler dummy cover with the grounding wire on the back of the

front panel. Refer to

Section 3.3

in this chapter.

(1) Attach the ID Unit to the Main Unit chassis. Set the ID Unit stay on the protrusion

of the Main Unit chassis and fix it using two screws.

ID Unit

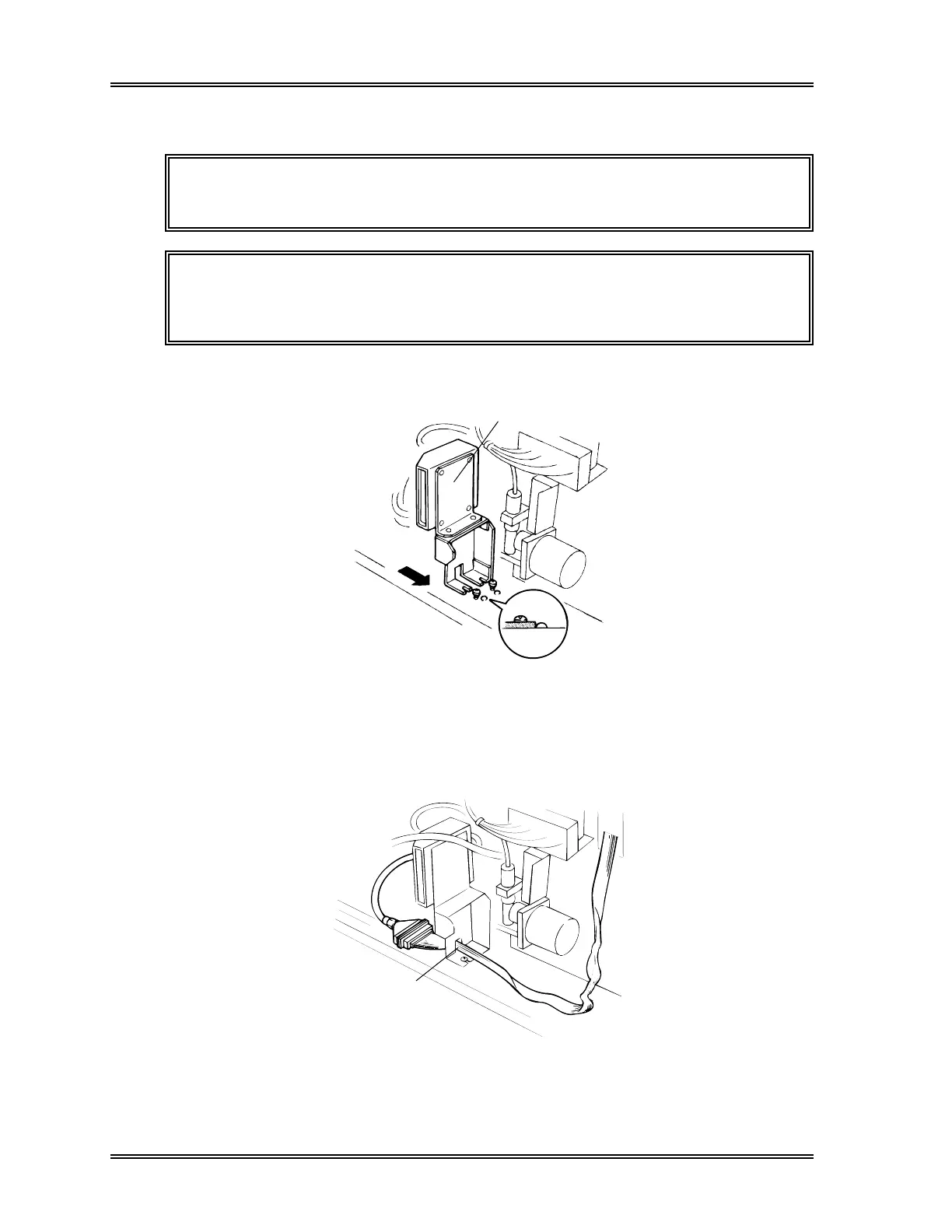

Figure B-12: Attach the ID Reader

(2) Pass the wire cord through the slit of ID Unit (see Figure B-13). Connect the

wiring cord to the ID Unit.

Pass the cord

through the slit.

Figure B-13: Connect the Cord
