INSTALLATION
Sysmex SF-3000 Operator's Manual -- Revised May 1996 B-29
10. CABLE AND POWER CORD CONNECTIONS
10.1 Output Connections
Connect the host computer and/or printers to the appropriate interfaces on the Main Unit.
Data Printer (DP) Connector
Host Computer (HC) Connector
AC Power Inlet
Graphic Printer (GP) Connector
Pneumatic Unit Power Outlet
Pneumatic Unit
Pneumatic Unit Power Inlet

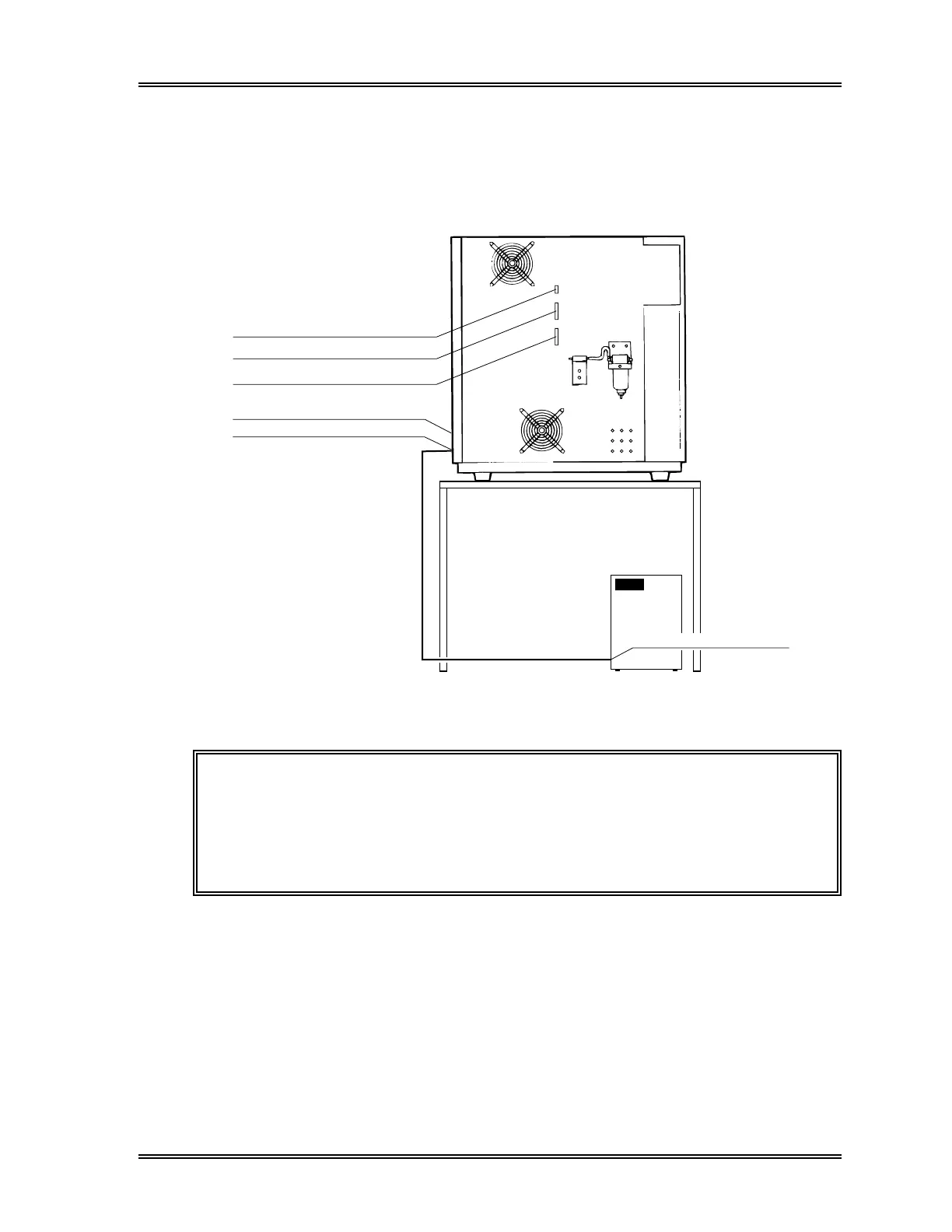

Figure B-42: Cable and Power Cord Connections
NOTE: • If a Data Printer is to be connected to the SF-3000, a separate
"CABLE PRINTER C-11 (DP/GP/J-3100)"(P/N 265-7660-9) is
required.
• If a user-supplied graphic printer is to be connected to the SF-
3000, a "CABLE PRINTER C-11 (DP/GP/J-3100)"(P/N 265-
7660-9) is required.
