INSTALLATION
B-30 Sysmex SF-3000 Operator's Manual -- Revised September 1995
10.2 Pneumatic Cable Connections
Connect the Pneumatic Unit power connector to the pneumatic power outlet on the Main
Unit using the power cord provided in the supply part.
CAUTION: Requirement by the British Electrical Safety Standards -- On the 240
VAC specification instrument, fix the pneumatic power cord with a fixing
metal using 2 fixing screws (M3x6) to prevent accidental disconnection
of the pneumatic power cord. See Figure B-43 below.
Fixing Metal
No. 81
Screw Bindings

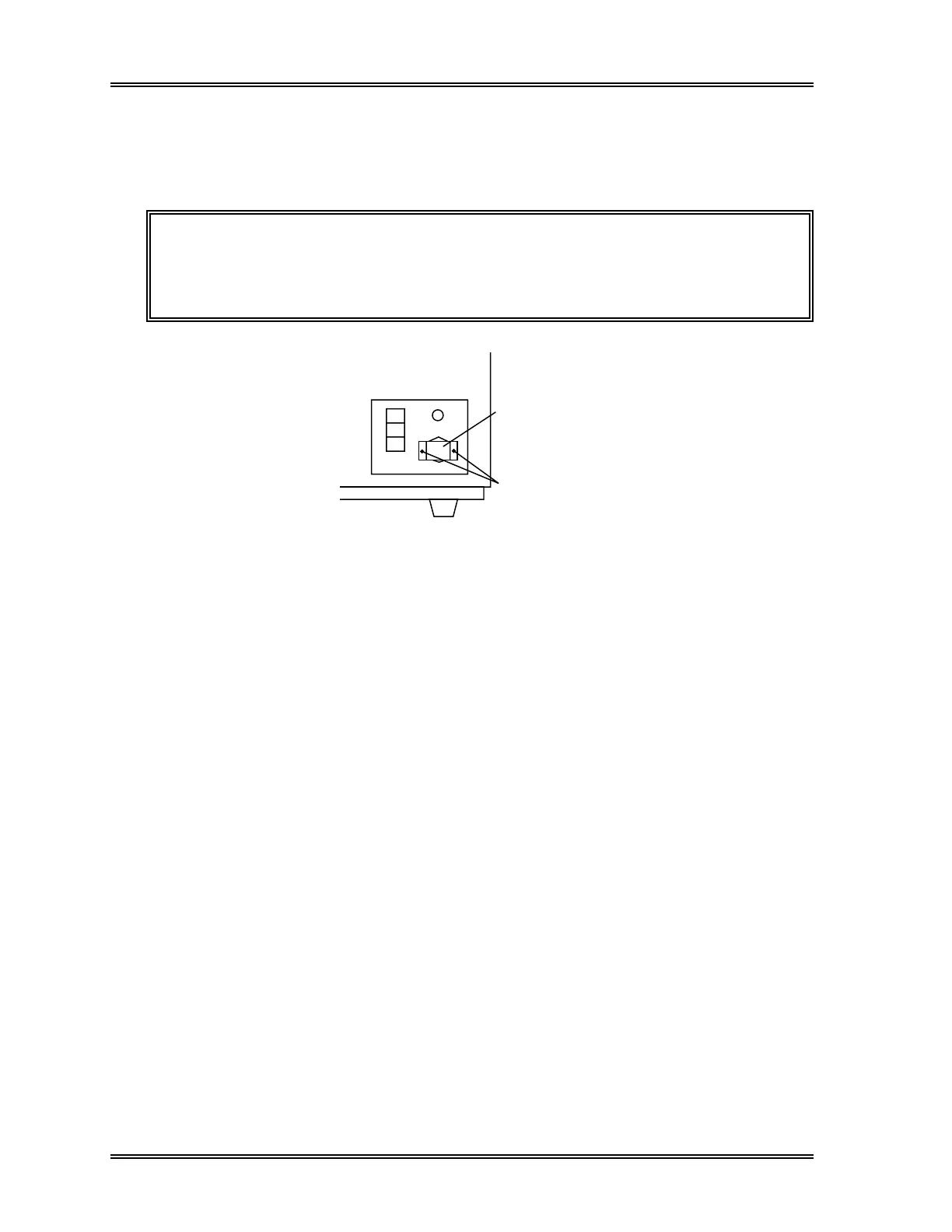

Figure B-43: Installing Fixing Metal No. 81
10.3 Power Cord Connections
Connect the Main Unit power connector to the AC power outlet using the power cord
provided in the supply part.
Sysmex SF-3000 Operator's Manual -- Revised March 2001
