FUNCTIONAL DESCRIPTIONS, Main Unit
10-26 Sysmex SF-3000 Operator's Manual -- Revised September 1995
9.6 Left Interior
WARNING! Do not open the Left Side Cover without assistance of Sysmex
service representative.
(3) WBC Detector Block
(6) Sheath Motor
(7) Sheath Injector Piston
(10) Diluent Chamber (PK2)
(9) Diluent Chamber (PK1)
(11) Waste Chamber 1
(12) Waste Chamber 2
(13) Waste Chamber 3
(1) FBA Lyse Chamber
(2) FDT Reagent Chamber
(4) SheathTemp. Control Unit
& FDO Reagent Chamber (hidden)
(5) SLS Lyse Chamber
(8) Sheath Chamber (PK3)

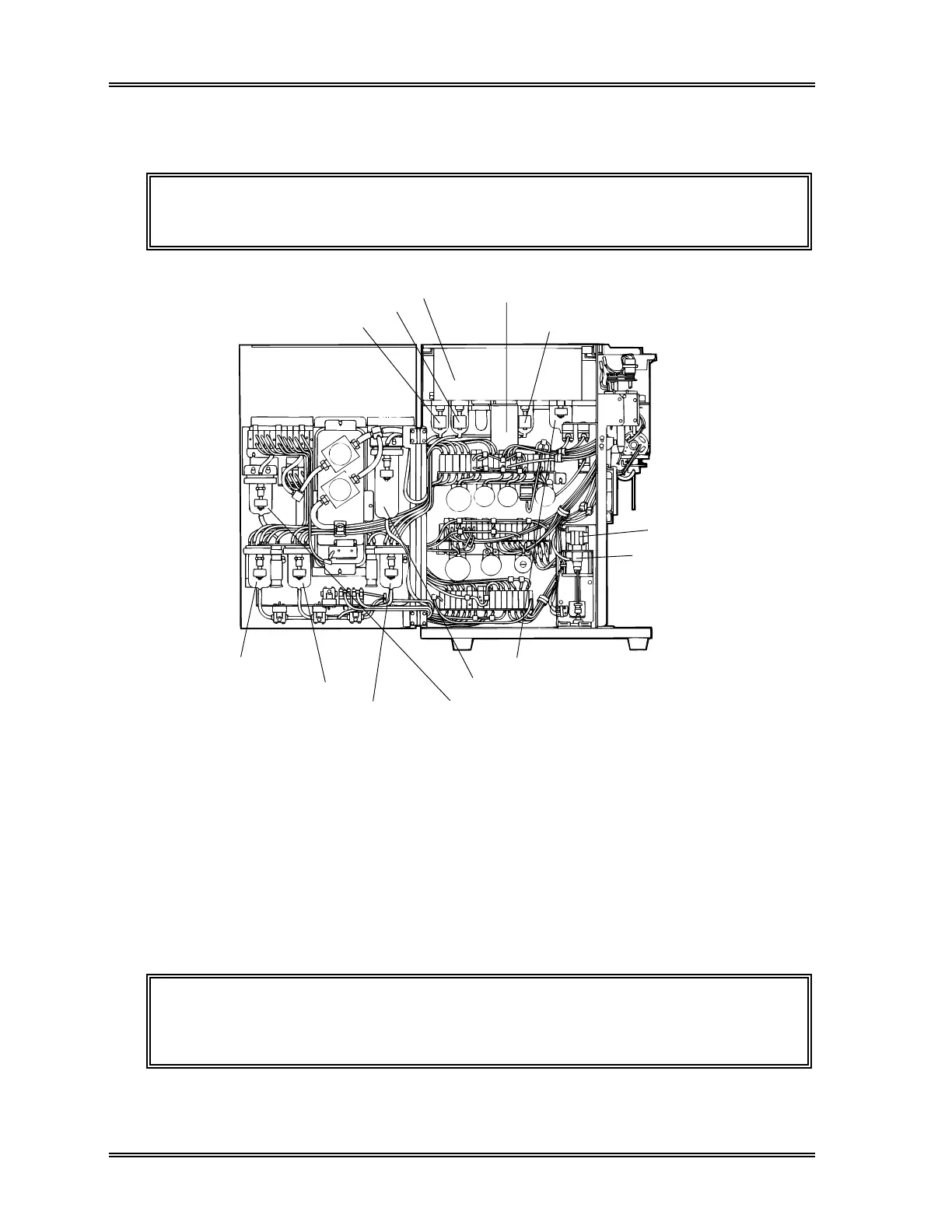

Figure 10-22: Main Unit – Left Interior (Chambers)
(1) FBA Lyse Chamber
Reservoir chamber for the WBC/BASO reagent [STROMATOLYSER-FB].
(2) FDT Reagent Chamber
Reservoir chamber for the WBC reagent [STROMATOLYSER-FD (II)].
(3) WBC Detector Block
Contains WBC detector unit.
WARNING! Never open the WBC Detector Block cover. Up to 2 mW of
laser light is accessible inside this unit and beam can damage
your eyes.
