6-38 Sysmex SF-3000 Operator's Manual -- Revised March 1996
7.4 Delete Plot
Use this program to delete the data from the QC Chart specified by using the 2 vertical-
line cursors.
(1) Press [QC] keypad in the root menu. The QC second menu will be displayed.
(2) From the QC submenu, select [Delete]. The password entry window will appear.
(3) Input the password and press [ENTER].
(4) From the Delete submenu, press [Plot].
Two vertical-line cursors (A and B) appear on the screen. These cursors are
moved to specify a deletion data range. Initially, the selected cursor is cursor B,
and is backlit in green. To switch selected cursors, press the [Cursor] key.
4.36
3.96
3.56
13.9
12.6
11.3
42.6
38.7
34.8
96.0
87.2
78.4
31.6
28.7
25.8
UL
LL
UL
LL
UL
LL
UL
LL
UL
LL
UL
LL
Limit
5/18
5/18 9:20
Data
+
31.8
28.9
26.0
DP:1234567890123
Sysmex
XM HC GP DP SU
Ready
Manual Mode Next No.1234567890123
Sampler
Q C
< Delete/Plot >
RBC
HGB
HCT
MCV
MCH
MCHC
3.85
14.1
38.5
89.4
28.5
29.3
AB
↑
↓
→
←
ReturnSelectCursor
QC01 LOT No. 12345678

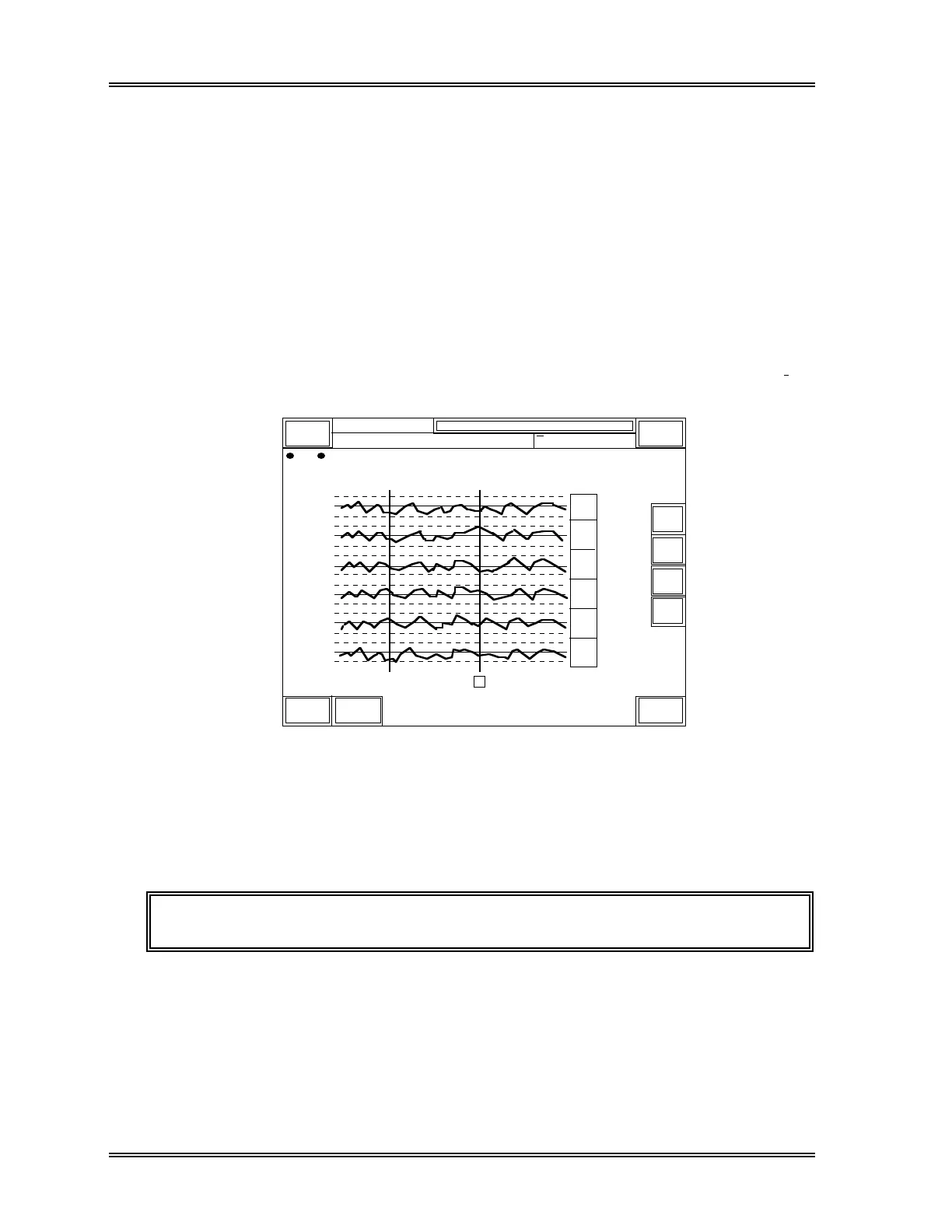

Figure 6-36: Deletion Range Setting Screen
(5) Use the [↑] and [↓] keys to switch screens.
Using the [←] and [→] keys, move the cursor to specify the range of data to be
deleted.
NOTE: The data on which the cursors are positioned are also deleted.
