FUNCTIONAL DESCRIPTIONS, Main Unit
10-24 Sysmex SF-3000 Operator's Manual -- Revised September 1995
9.4 Left Side
(1) 0.5 kg/cm Regulator
2
(2) 0.6 kg/cm Regulator
(3) Air Filter
2
(4) Bellows Unit
(5) Vacuum Orifice

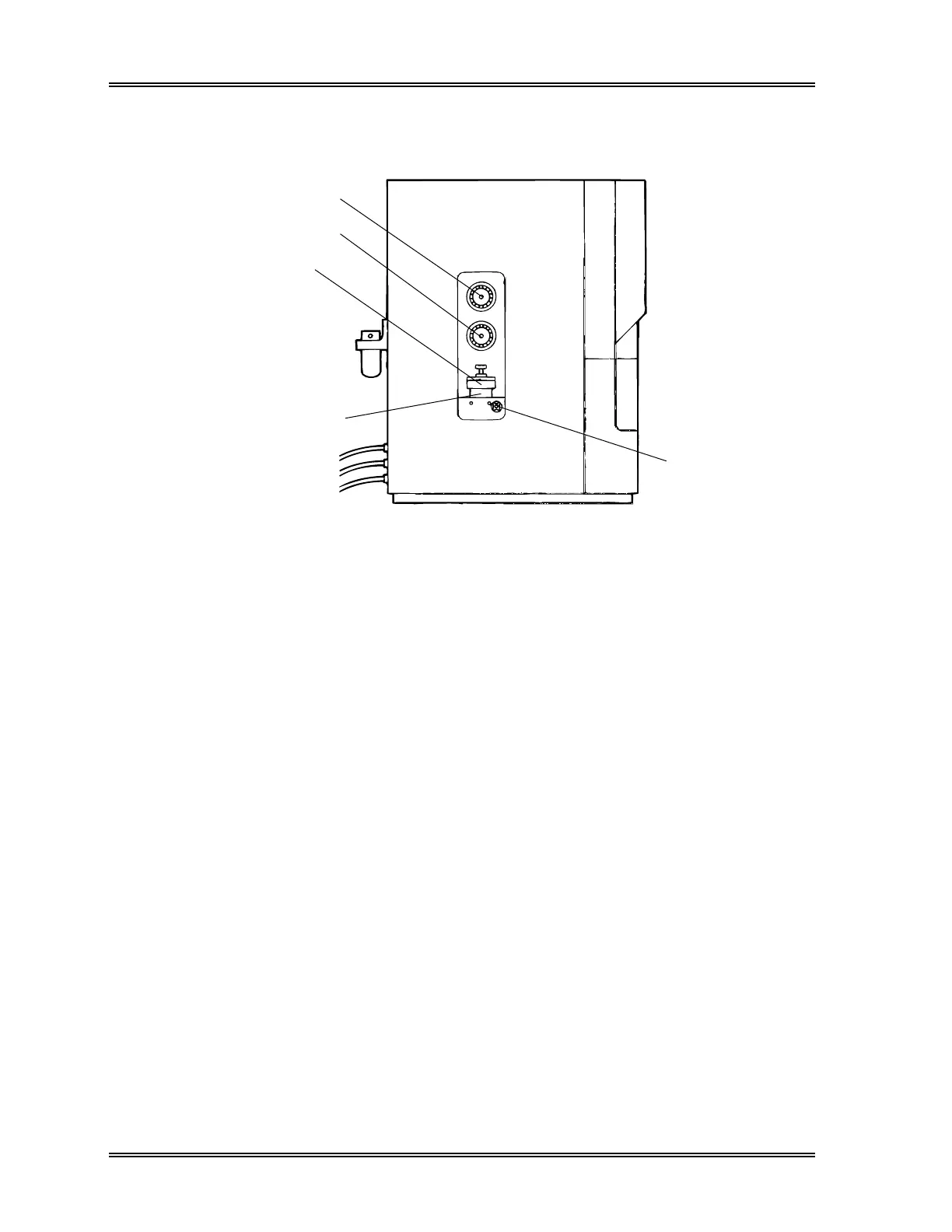

Figure 10-20: Main Unit – Left Side View
(1) 0.5 kg/cm
2
Regulator
Adjusts the pressure to 0.5 kg/cm
2
.
(2) 0.6 kg/cm
2
Regulator
Adjusts the pressure to 0.6 kg/cm
2
.
(3) Air Filter
Prevents dust from entering into the bellows unit.
(4) Bellows Unit
Adjusts vacuum to 250 mmHg.
(5) Vacuum Orifice
Adjusts the vacuum (250 mmHg) supplied to the waste chamber.
