Sysmex SF-3000 Operator's Manual -- Revised September 1995 11-35
5.1 HC Setting (Host Computer)
Use this program to set interface conditions for the Host Computer.
To set interface conditions for HC output:
(1) Press [HC Setting] key in the Configuration submenu.
The HC setting screen will appear, containing the current interface conditions. The
selected parameter is backlit in light-blue or a check mark (√) is placed in the box to
the right of selected item.
(2) Press the appropriate keys to select the condition.
(3) There are two screens for HC settings. Press [More] key to alter the screen.
Status
600 2400 4800 9600
Baud Rate(BPS)
8-bit7-bit
Parity Bit
Stop Bit 1 - b i t 2 -b it
Class
0235710
Interval
(sec.)
15
Even Odd
Class A
< HC Settings >
More
Not Connected
Code
None
Class B
1200
Connected
Quit
H C
Setting
G P
Setting
D P
Setting
Return
DP:1234567890123
Sysmex
XM GP DP SU
Ready
Manual Mode Next No.1234567890123
Sampler
√

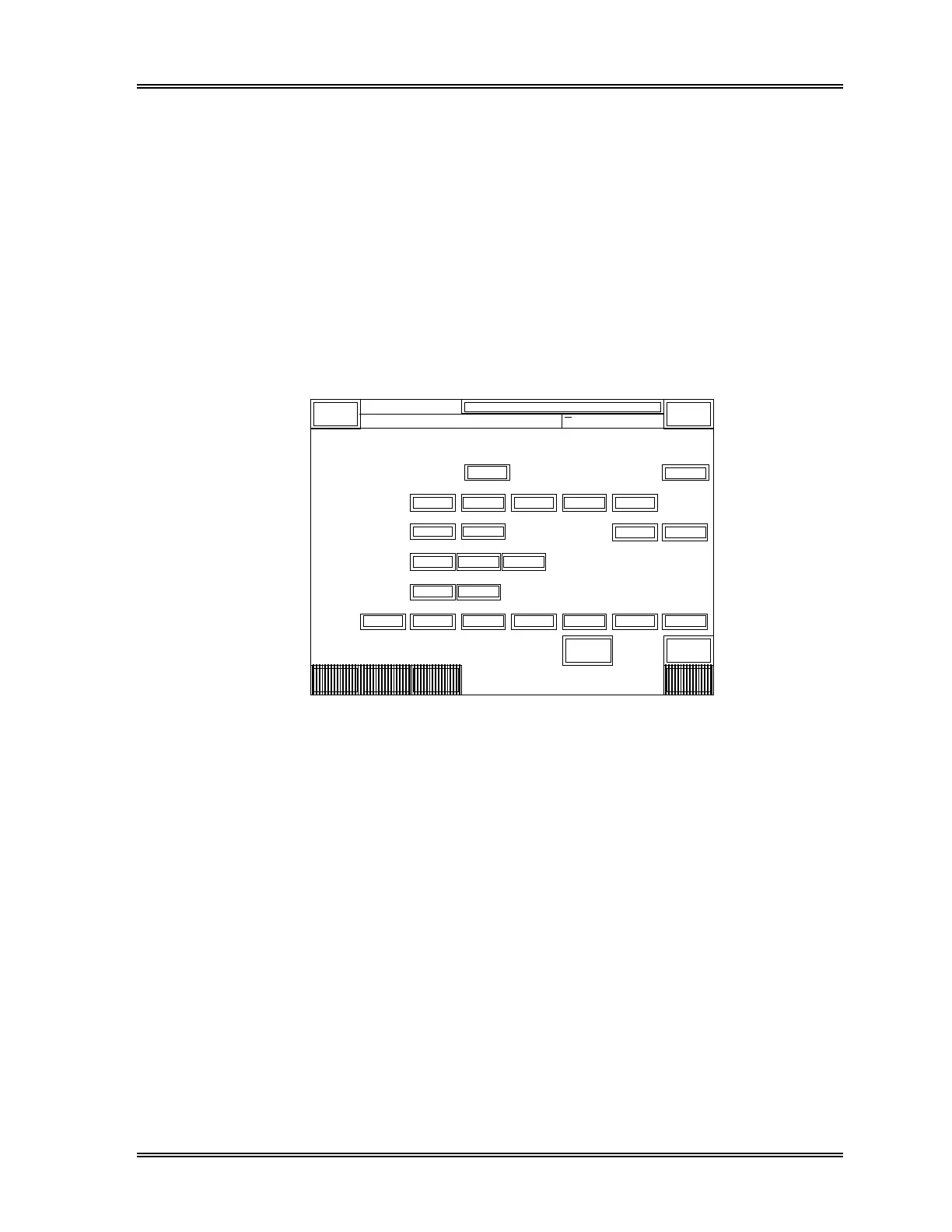

Figure 11-28: HC Setting Screen - 1
Status : When the Host Computer is connected, select "Connected". If "Not
Connected" is selected, "HC" will not appear in the LCD system
status display area. (The factory setting is "Not Connected".)
Baud Rate : The baud rate can be selected. (The factory setting is "2400" bps.)
Code : The data bit length can be selected. (The factory setting is "7-Bit".)
Stop Bit : The stop bit length can be selected. (The factory setting is "2-Bit".)
Parity Bit : The parity bit can be selected. (The factory setting is "Even".)
Class : The transmission procedure protocol can be selected. (The factory
setting is "Class A".)
Interval : Time interval between data transmitted to the Host Computer can be
selected. (The factory setting is "2" seconds.)
