INSTALLATION, Remove Packing Material, Front Panel
B-8 Sysmex SF-3000 Operator's Manual -- Revised September 1995

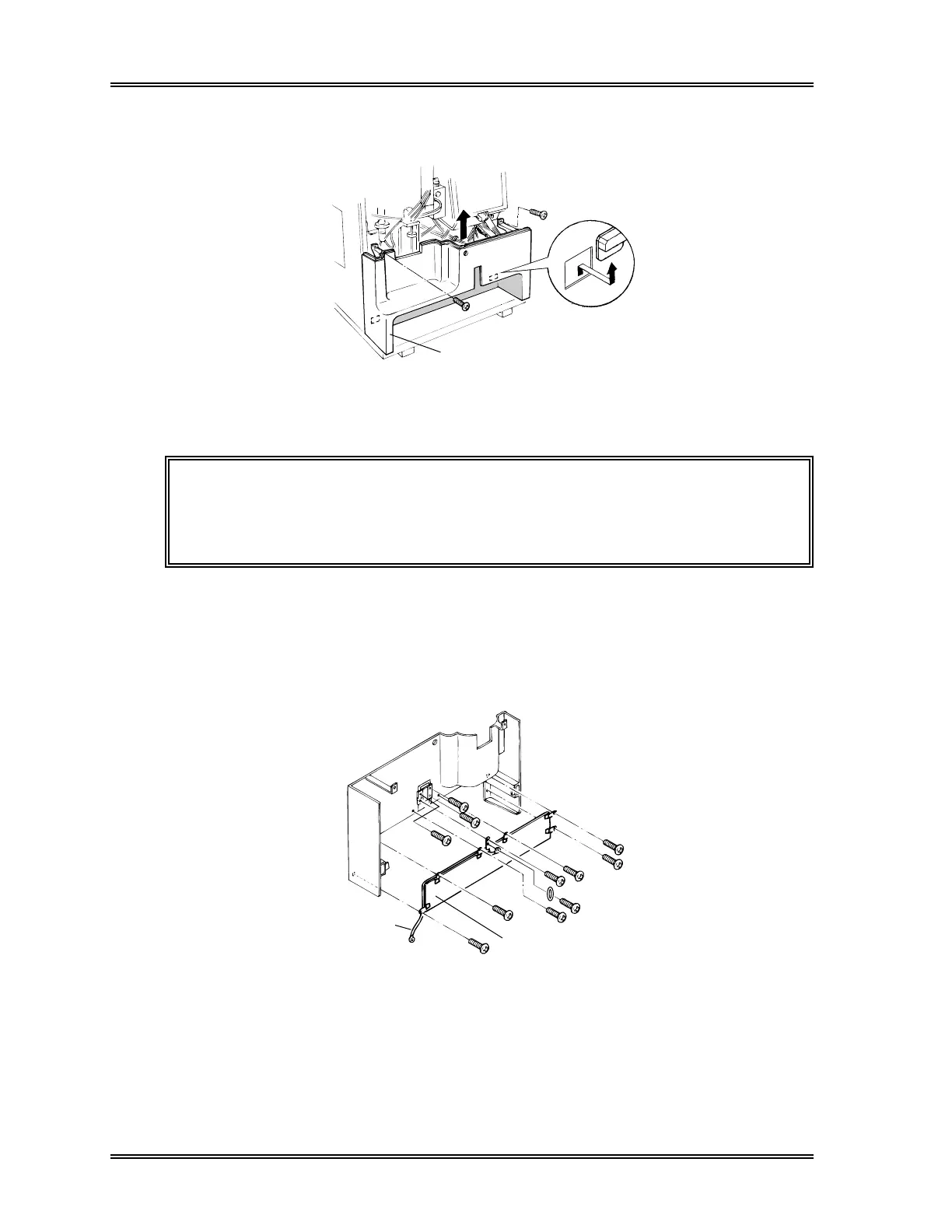

(3) Lift the front panel enough to release the hook under the panel (see Figure B-4).
Front Panel
Figure B-4: Front Panel
NOTE: • When installing the Sampler Unit and/or ID Reader, skip the
steps (4) and (5) below.
• Order the cover(s) and some necessary parts if needed. Refer
to Section 1.2 in this chapter for dummy cover information.
(4) Install the ID reader dummy cover (ID Cover No. 1) with the three M3 screws to
the front panel.
Install the sampler dummy cover (Front Panel-C) with the seven M3 screws.
Connect the grounding wire (Wiring Cord No. 1698) to the front panel using one
M4 screw together with M4 washer spring. See Figure B-5.
Grounding
Wire
Sampler Dummy Cover
(M4)
Figure B-5: Install the Dummy Cover(s)
