Benelli TNT125 Service Manual

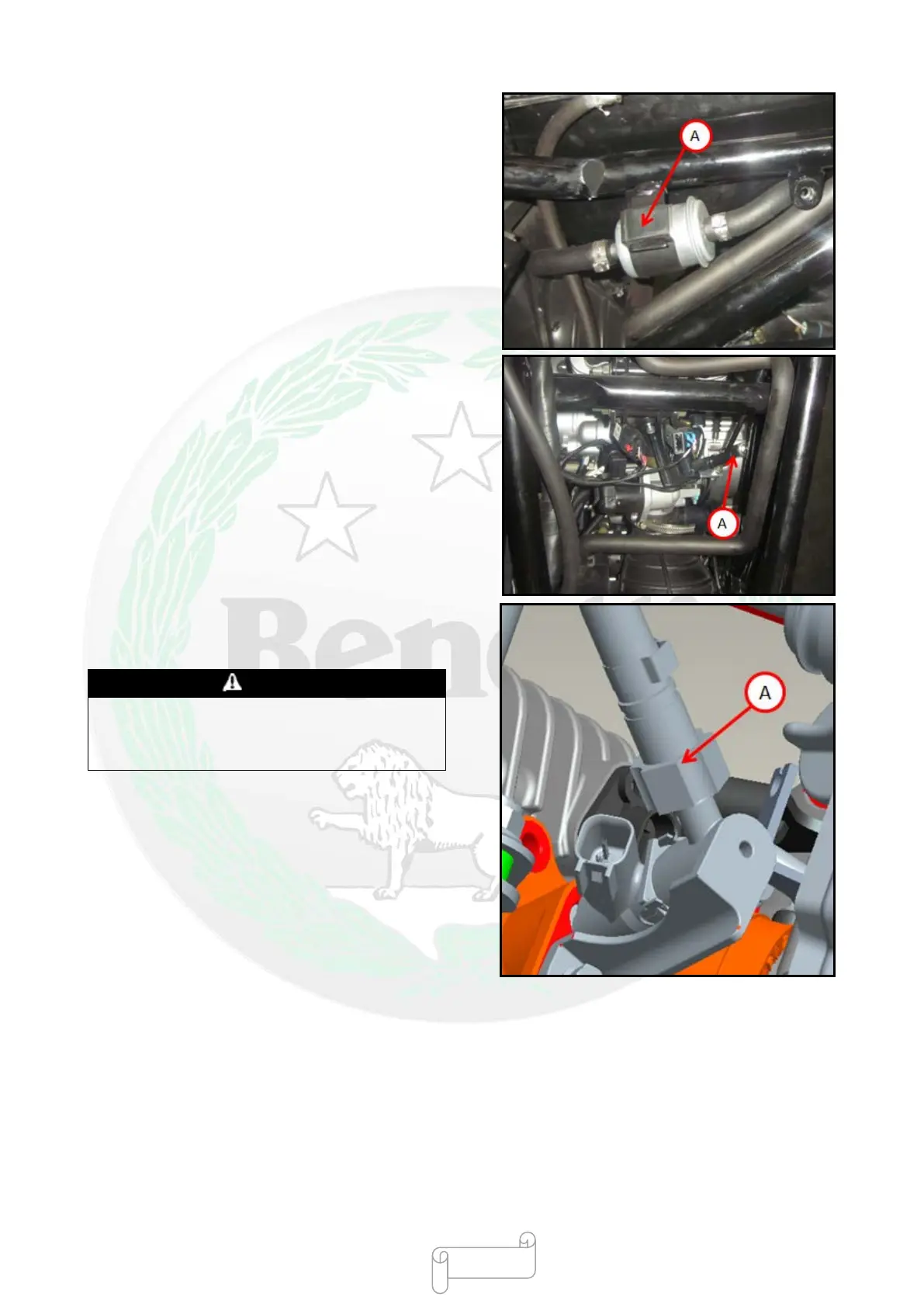

●When installing a new fuel pipe, fix the rubber cover
of oil filter [A] on the fuel tank, as shown below.
● Arrange the fuel pipe correctly (see the section in the
“Accessory” chapter: “Winding Method of Cable, Wire
and Hose”).
●Insert the fuel pipe joint directly into the fuel supply
pipe [A] until the hose joint clicks.
●Push and pull the fuel pipe joint [A] back and forth
for more than twice to ensure that it has been locked
and cannot fall off.
Warning
Make sure that the fuel pipe joint is
properly installed on the fuel supply pipe,
otherwise the fuel may leak.
★If the fuel pipe joint falls off, install it again.
●Install fuel tank. [See “Installing Fuel Tank” in the
“Electronic Fuel Injection System (EFI)” chapter].
●Start the engine and check whether the fuel pipe leaks.
- 97 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
