Benelli TNT125 Service Manual

★If t
he free clearance of throttle grip cannot be met

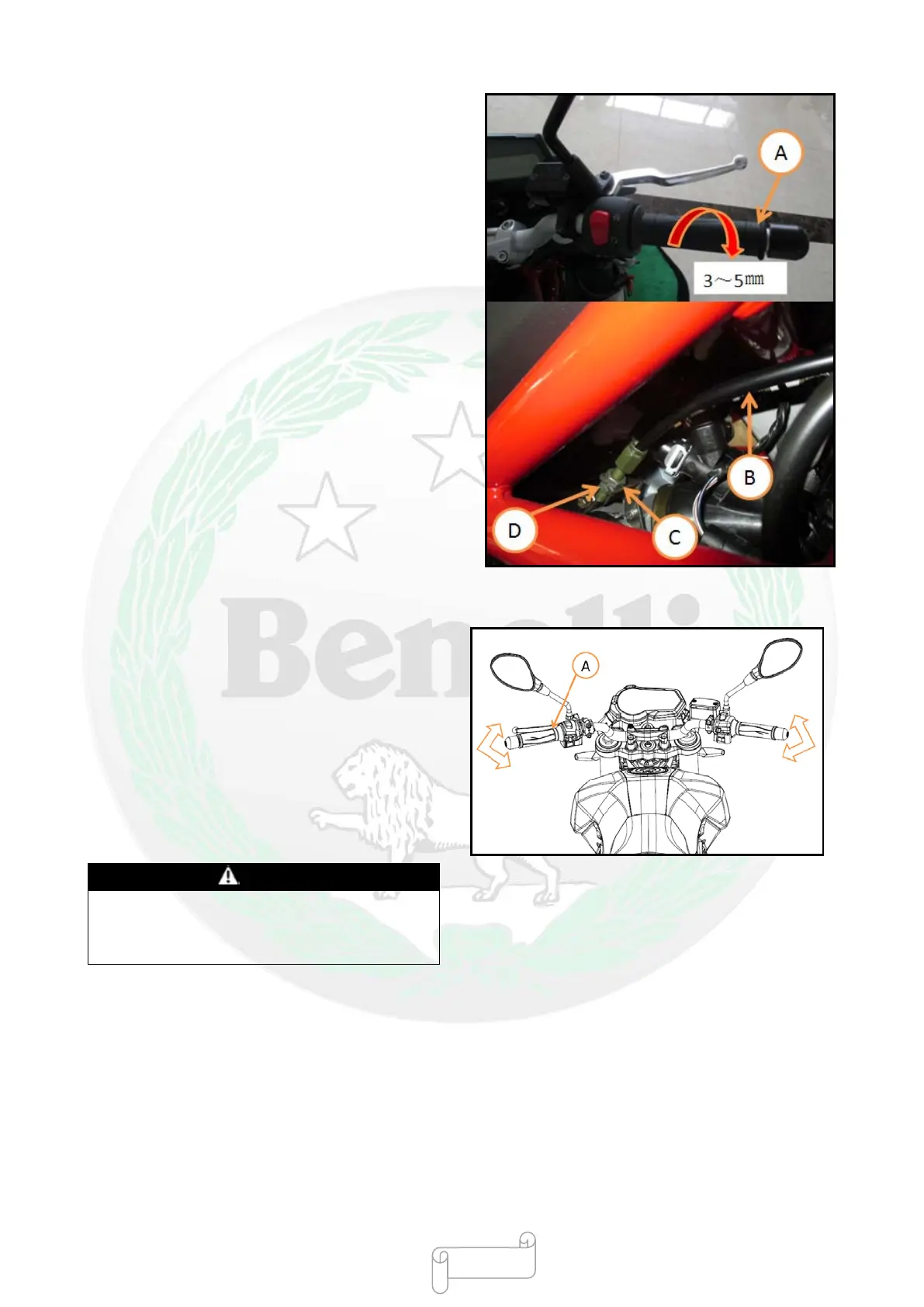

by adjusting the upper end of throttle cable, adjust
the lower end of throttle cable [B] and adjust the
throttle cable according to the following steps:
(1) Unscrew the lock nut [D].
(2) Rotate the adjusting nut [C] so that the free
clearance of throttle grip [A] is large enough until the
free clearance of throttle grip is 3-5mm.
(3) Tighten the lock nut [D].
(5) After the free travel is adjusted, turn the direction
to the right and left to confirm that there is no change
in idle speed of engine.
★
If the free clearance cannot be adjusted by the
adjuster, change the wire.
Checking Idle Speed
●Start the engine and make it hot thoroughly.
● When the engine is idle, rotate the handlebar to both
sides [A].
★
If the idle speed can be changed when rotating the
handlebar, it indicates that the throttle cable is not
adjusted well or the winding method is incorrect or
damaged. Before riding, make sure to correct the
above problems (see the sections of “Accessory”
chapter: “Checking Throttle Control Syst
em” and
“Winding Method of Cable, Wire and Hose”).
Warning
If you ride when the cables are not adjusted
well or damaged or the winding method is
incorrect, safety accident may be caused.
●Checking Idle Speed
Idle Speed
Standard:1500 ±100 r/min
- 57 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
