Checking the Calipers Piston and Brake Cylinder for Damage

●

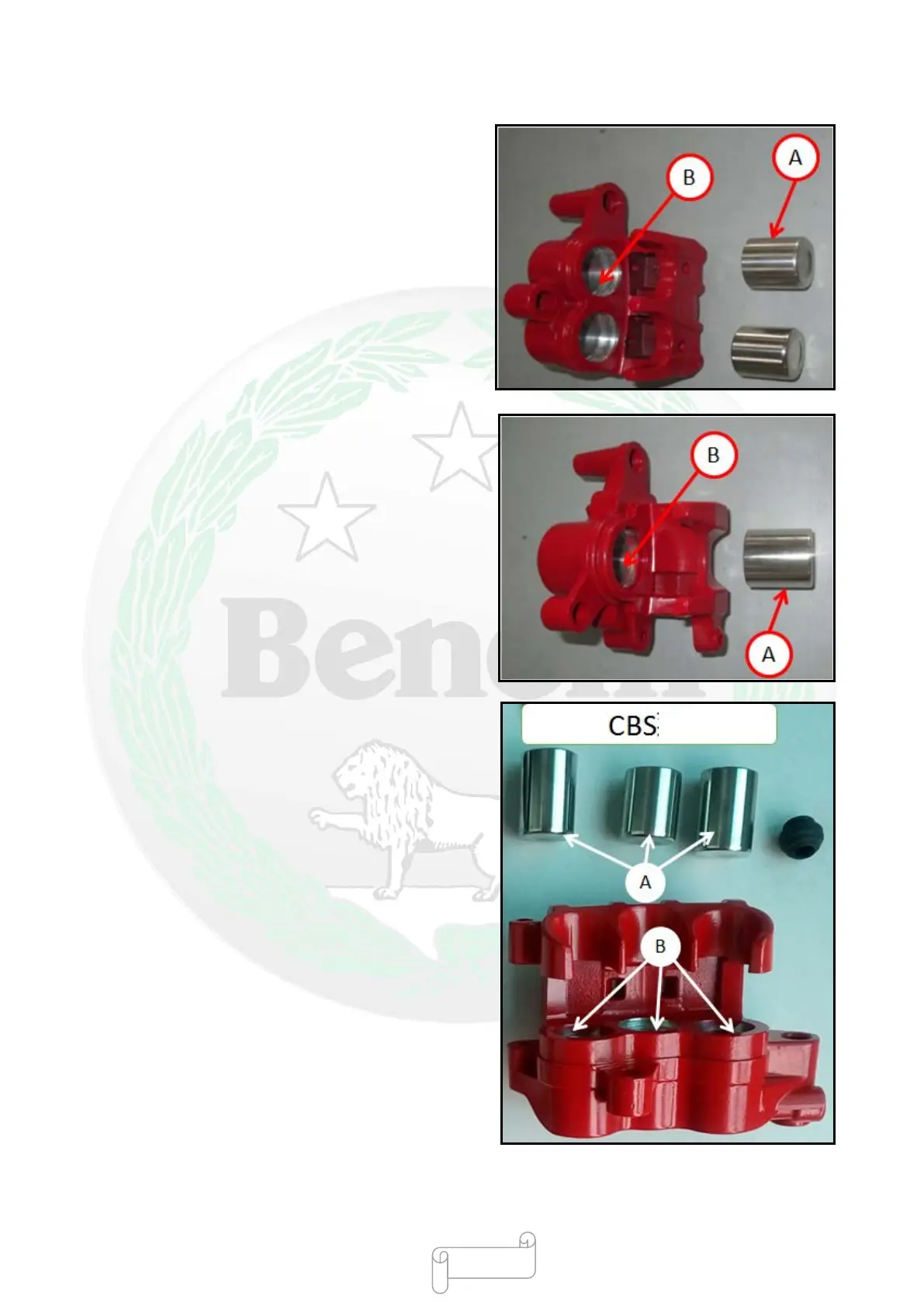

Visually inspect the piston [A] and the brake cylinder

surface [B].

★ If the brake cylinder and piston are seriously worn

or rusted, please replace the calipers!

- 326 -
