Benelli TNT125 Service Manual

Oil Level Sensor

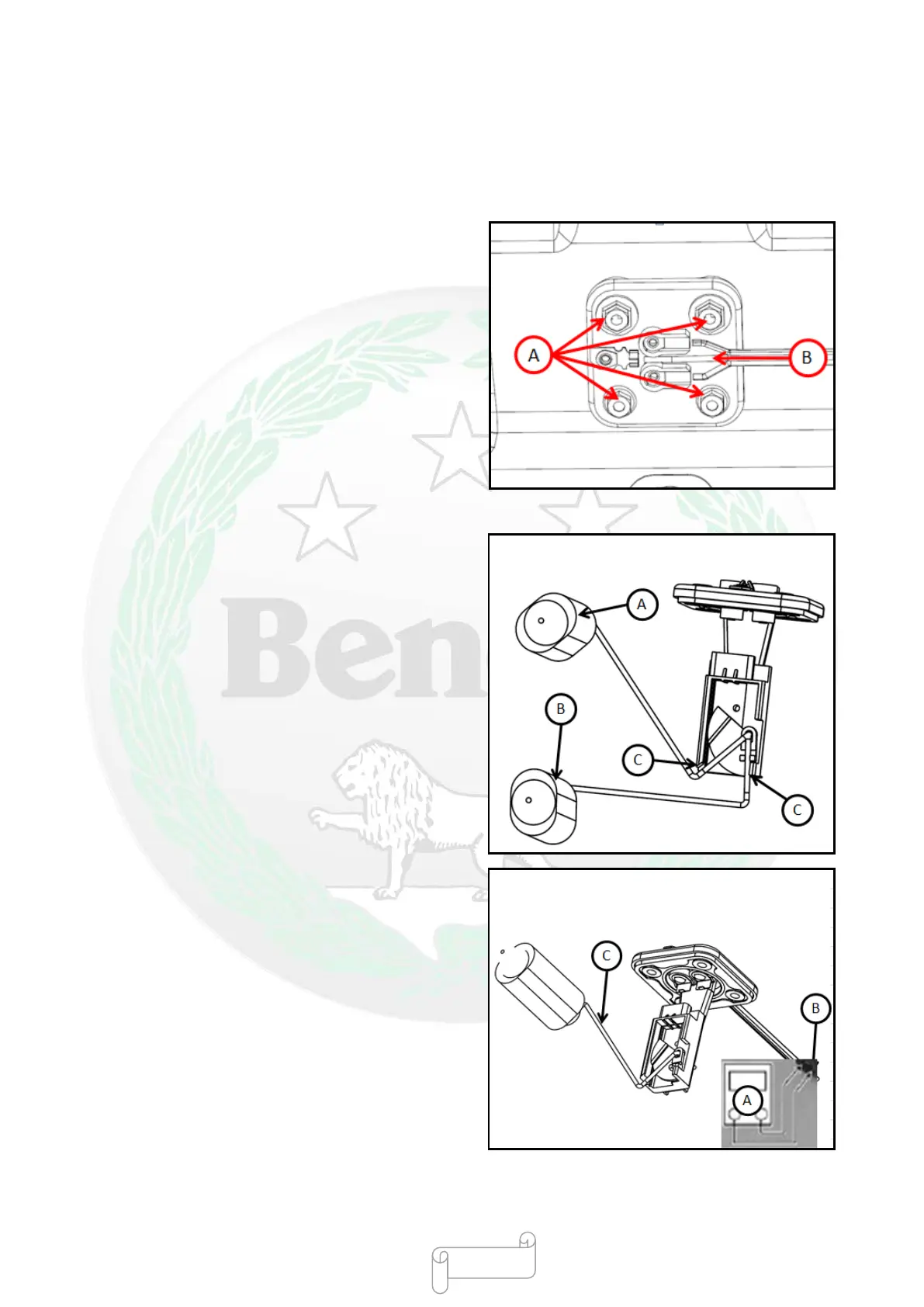

Disassemble Oil Level Sensor
●Disassemble:
○Fuel tank guard (see “Frame” – Disassembling Fuel
Tank Guard)
●Remove:
Bolt [A]
Oil level sensor [B]
Checking Oil Level Sensor
● Check whether the fuel sensor floater moves
smoothly without clamping stagnation. It shall move
down under the effect of its own gravity
★ I
f the floater cannot move smoothly, replace the
sensor
When the floater is full [A]
When the floater is empty [B]
Floater arm stopper [C]
●
Use the handheld multimeter [A] to measure the
resistance around the oil level sensor plug-
in [B]
terminal
Special Tool—Handheld Multimeter:
Pointer Adapter Device:
★
If the multimeter reading does not meet the
specifications or the reading does not change smoothly
with the up and down movement of float block, replace
the sensor
Oil Level Sensor Resistance
Standard: Full oil level [C]: 5-9Ω
Empty oil level: 90-96Ω
- 460 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
