Technical Parameters
Normal operating voltage: 8-16V VDC
Operating temperature: -40-120°C
Operating frequency: 16 Hz
Maximum flow: 25-35L/min

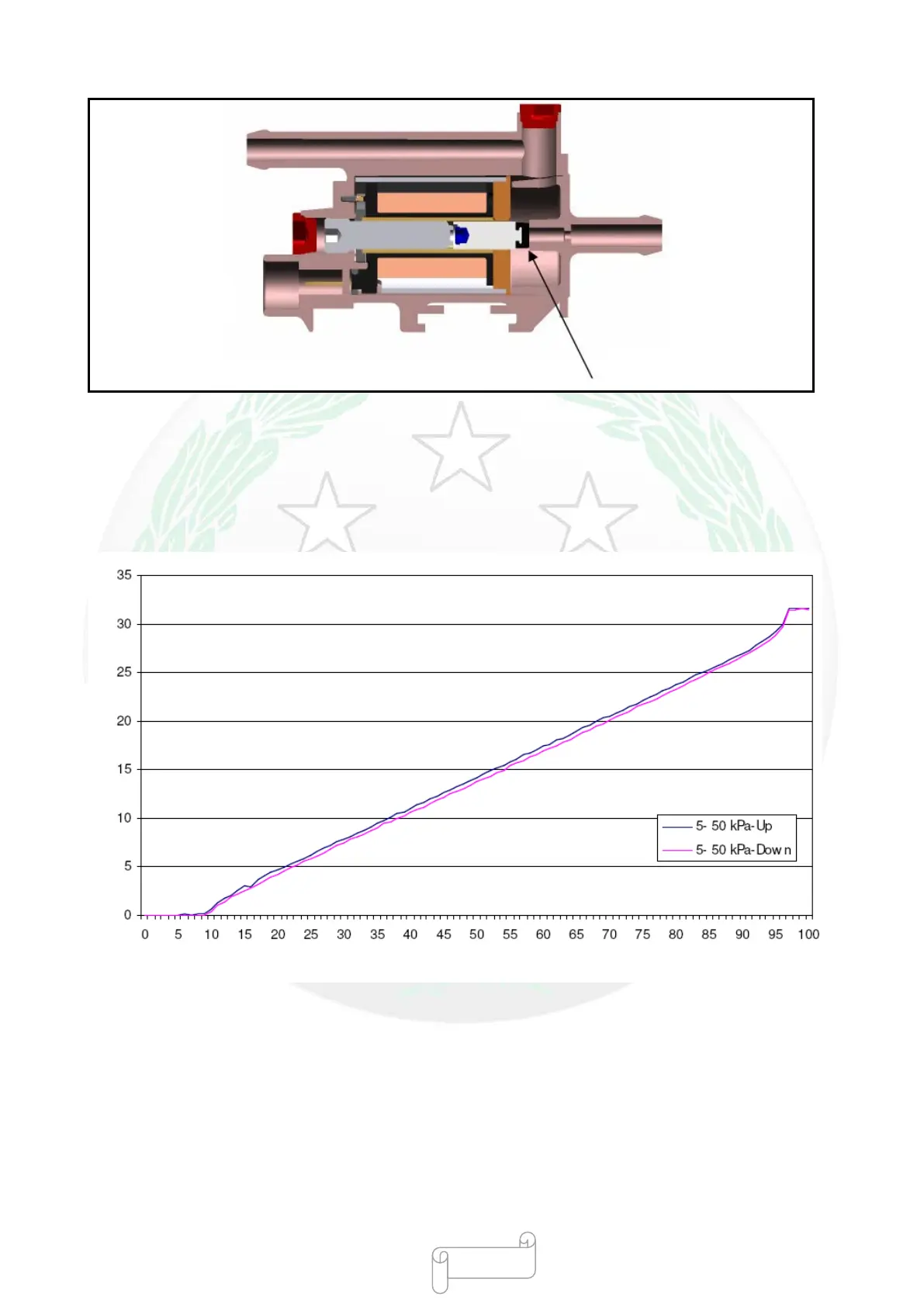

Flow curve is as shown below:
Installation Requirements
Canister solenoid valve should be horizontally
installed at motorcycle.
Canister solenoid valve should be placed at
the position near the center rotation axis of
crankshaft, to reduce shock.
Charcoal canister port
Electrical port
Solenoid switch is normally
closed
Flow (standard liter / minute)
- 174 -
