Benelli TNT125 Service Manual

Rear Swing Arm
Disassembling Swing Arm
●Lift the rear wheel above the ground with a jack.
Special Tool—Jack:
Jack Accessories:
●Disassemble:
Rear wheel (see “Wheel/Tire”—
“Disassembling Rear
Wheel”),
●Disassemble:
Clamp bolt [A] at the lower side of rear shock absorber
[B] (see “Disassembling Rear Shock Absorber”)

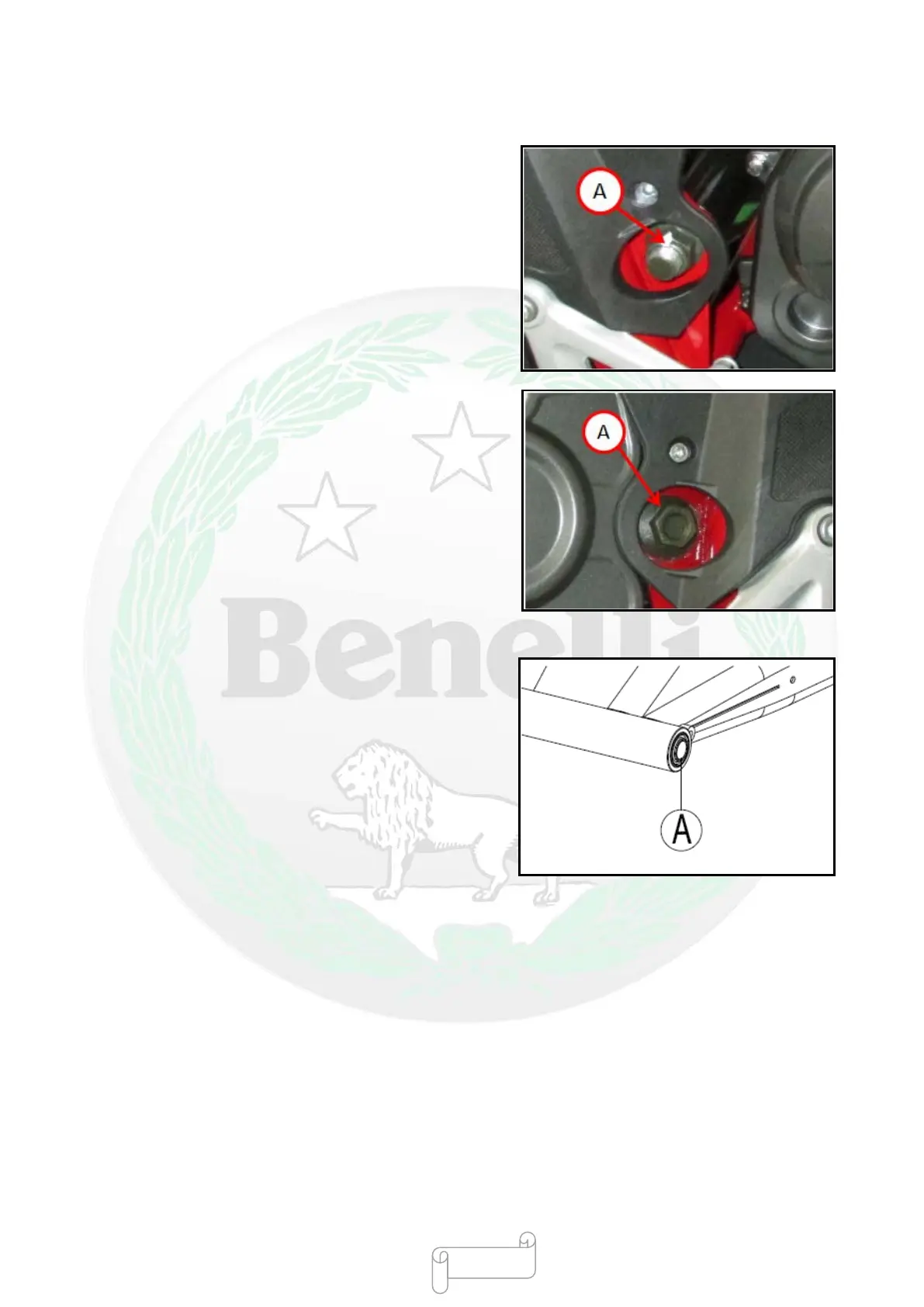

●Remove the swing arm installing shaft nut [A].
●Pull out the installing shaft [A] from the right side to
the left side of motorcycle and remove the swing arm.
Installing Swing Arm
●Apply a large amount of grease on the edge of oil seal
[A].
- 354 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
