Benelli TNT125 Service Manual

Right Cover
Disassembing Right Cover
●Loosen the clamp bolt of foot lever and remove foot
lever.
●Loosen the clamp bolt and remove the right cover.
● Remove the clutch push rod head and release bearing.
● Remove the clutch release lever component, clutch
cable holder and other parts from the right cover.
Assembling Right Cover
●
Assemble the right cover in the reverse order of
disassembly.

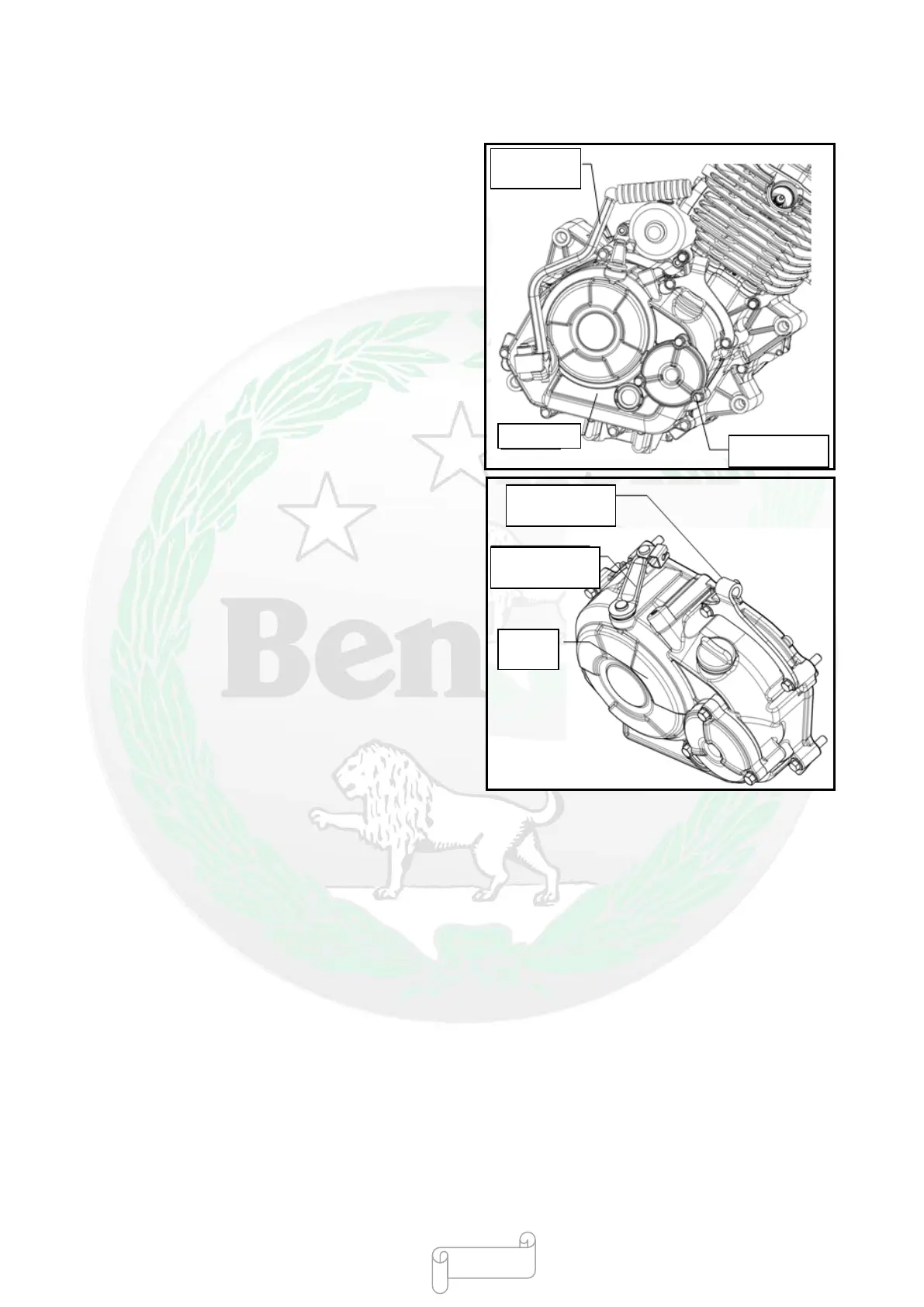

Foot lever
Right cover
Clamp bolt
Clutch cable
holder
Release lever
component
Right
cover
- 247 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
