Intake Pressure Sensor
Working Principle of Intake Pressure Sensor
This sensor is used to measure the absolute
pressure of air intake elbow, reflect the size of intake
pressure according to the difference of resistance, and
then calculate the intake volume in engine combustion
chamber through indirect conversion, and it is also a
non-serviceable part.

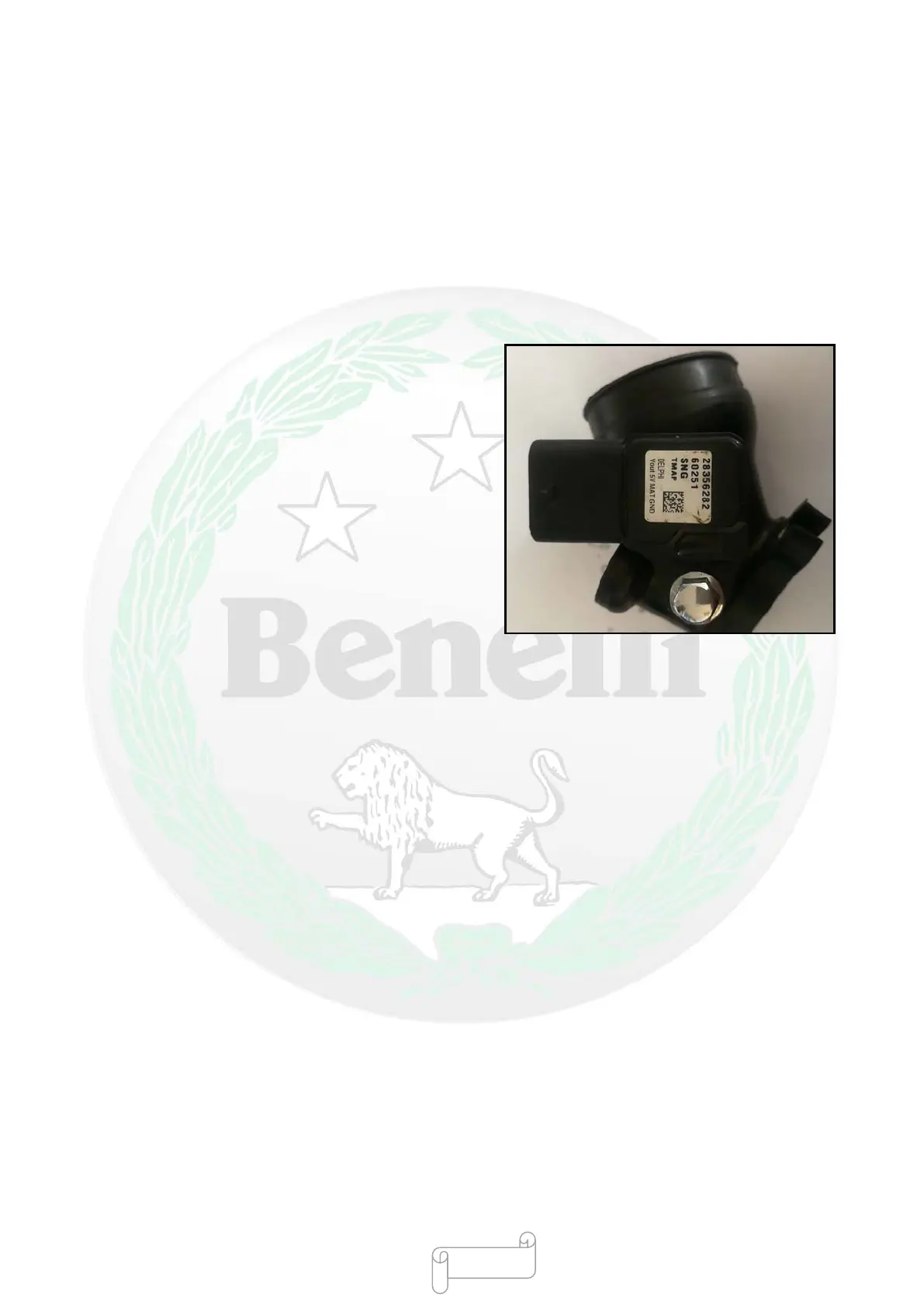

Appearance of Intake Pressure Sensor
As shown below
Working Environment
 Working pressure range: 20-115kPa
 Working temperature range: -40-105°C
 Relative humidity: 0 -100% RH.
 Extreme operating environment: work for 2
hours at the maximum temperature of 125°C
Storage Environment
 Storage temperature: -50°C-150°C
Electric environment
Typical voltage: DC reference voltage of operating
sensor circuit is 5±0.1V.
- 166 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
