Benelli TNT125 Service Manual

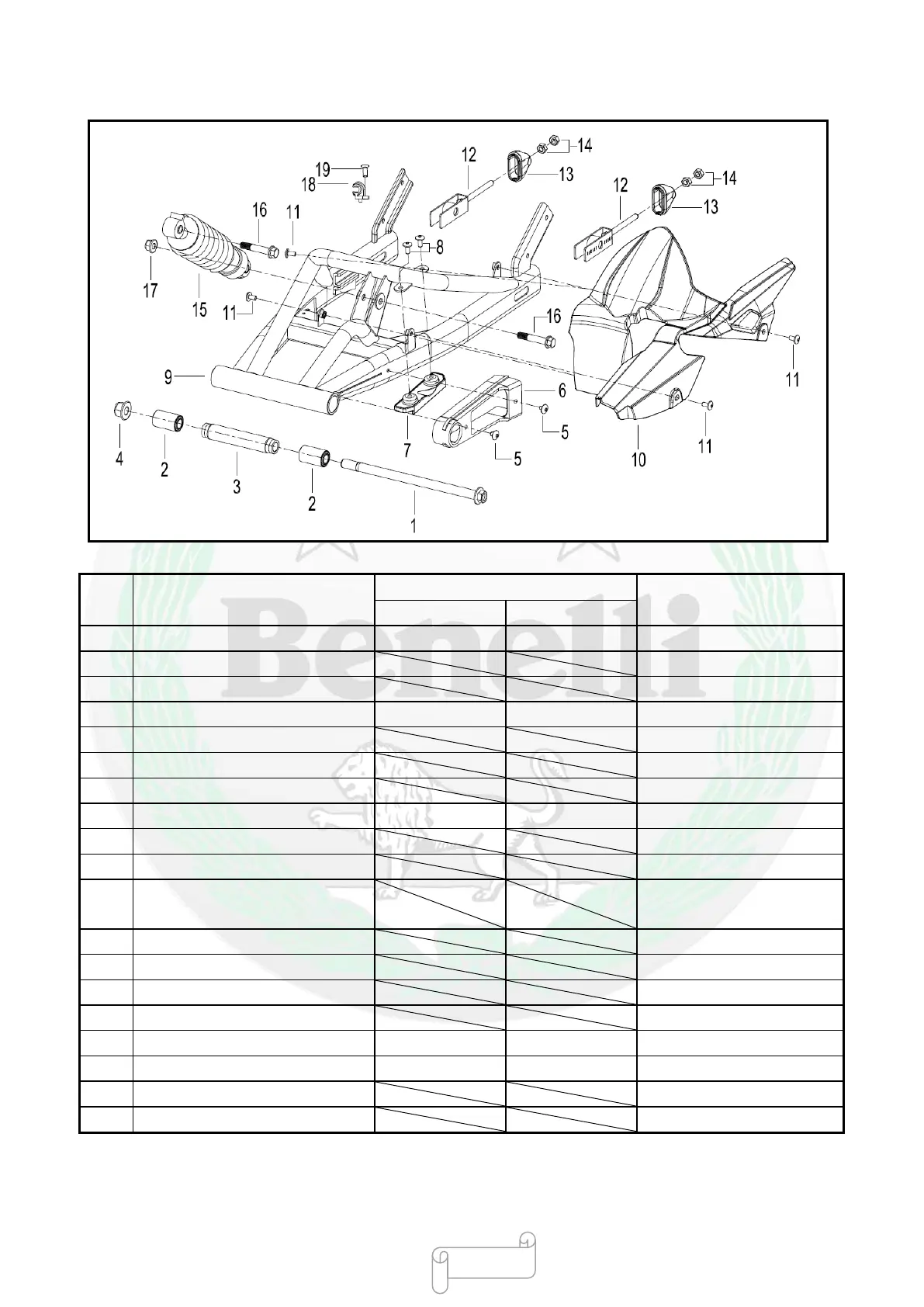

Exploded View of Rear Suspension System
N
o. Chinese name and specification Torque Remark
N·m
kgf·m
1 Swing arm axle 90
9.0 G
2 Swing arm axle sleeve component
G，R
3 Middle shaft sleeve
4 Self-locking nut M14×1.5 90
9.0 R
5 Bolt M6×10
6 Protective block
G
7 Chain stop dog
G
8 Bolt M6×19 8
0.8
9 Rear swing arm welding component
10 Drive chain cover
11
M6×15
Hexagon screw with boss M6×15
12 Chain adjuster welding component
13 Chain adjuster retainer
14 Nut M8
15 Rear shock absorber component
16 Rear shock absorber mounting bolt 50
5.0
L
17 Self-locking nut M10 50
5.0 R
18 Hydraulic brake clamp
19 Cross-head screw M6×16
G: apply grease
L: apply thread fastening glue
R: replace parts
- 340 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
