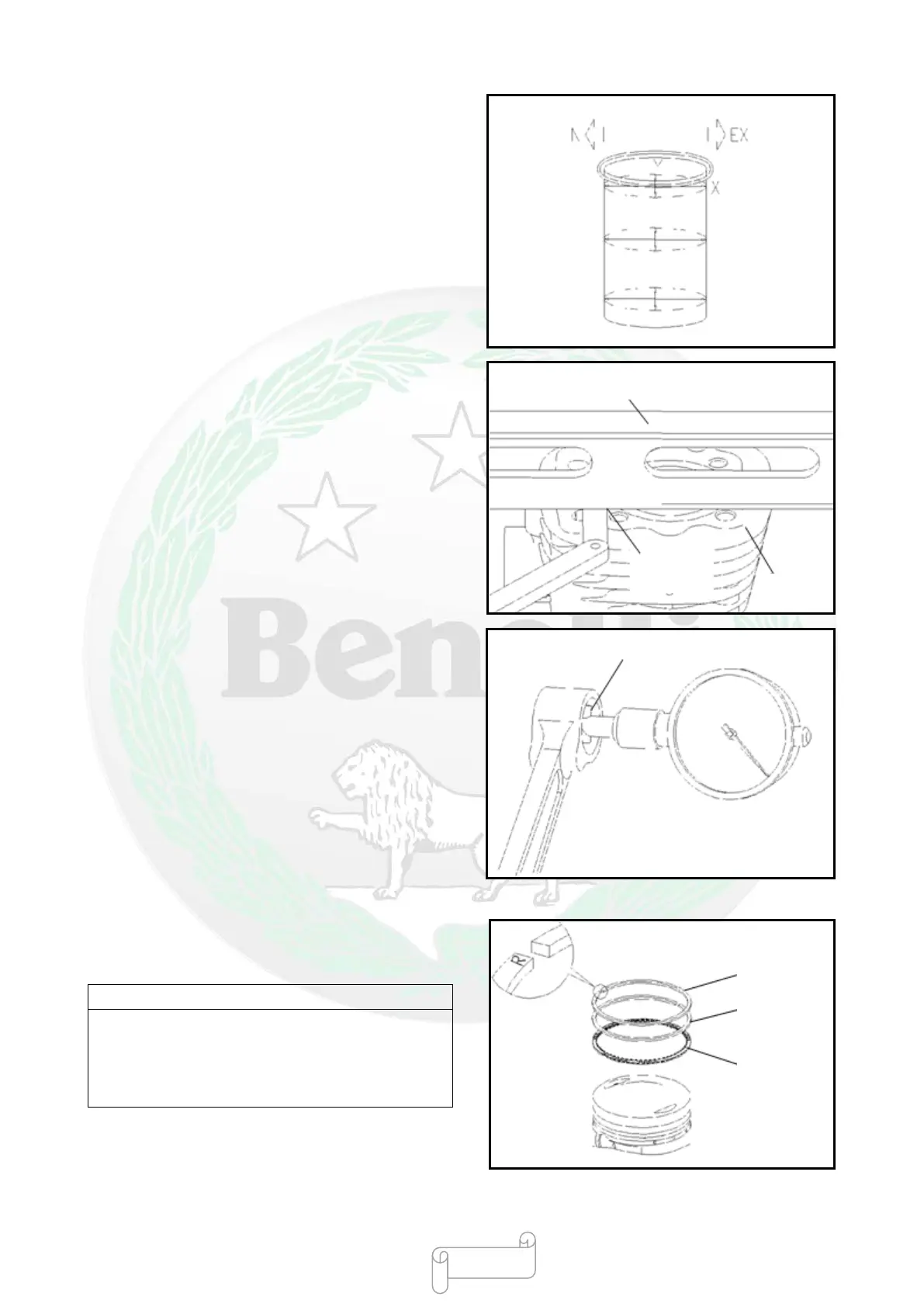

●Measure the roundness of inner wall of cylinder (inner
diameter difference between X and Y directions).
Allowable limit: 0.05mm.
Measure the cylindricity of inner wall of cylinder
(inner diameter difference between X and Y directions
in upper, middle and lower positions).
Allowable limit: 0.05mm.
●Check the planeness of cylinder surface.
Allowable limit: 0.05mm.
Measure the inner diameter [A] of connecting rod
small end.
Allowable limit: 14.05mm.
Installation
●Install piston ring.
Apply oil to
the piston ring and piston evenly, make
the piston ring mark side up and install it properly.
Note
Do not scratch the piston and do not break the piston
ring.
After the piston ring is installed, it can rotate freely
in the piston ring groove.
Inner diameter of small end of
connecting rod
Upper
Middle
Lower
Ruler
Feeler gauge
Cylinder
Top ring
Second ring
Oil ring
- 231 -
