Benelli TNT125 - Special Tools

To Next Page

To Previous Page

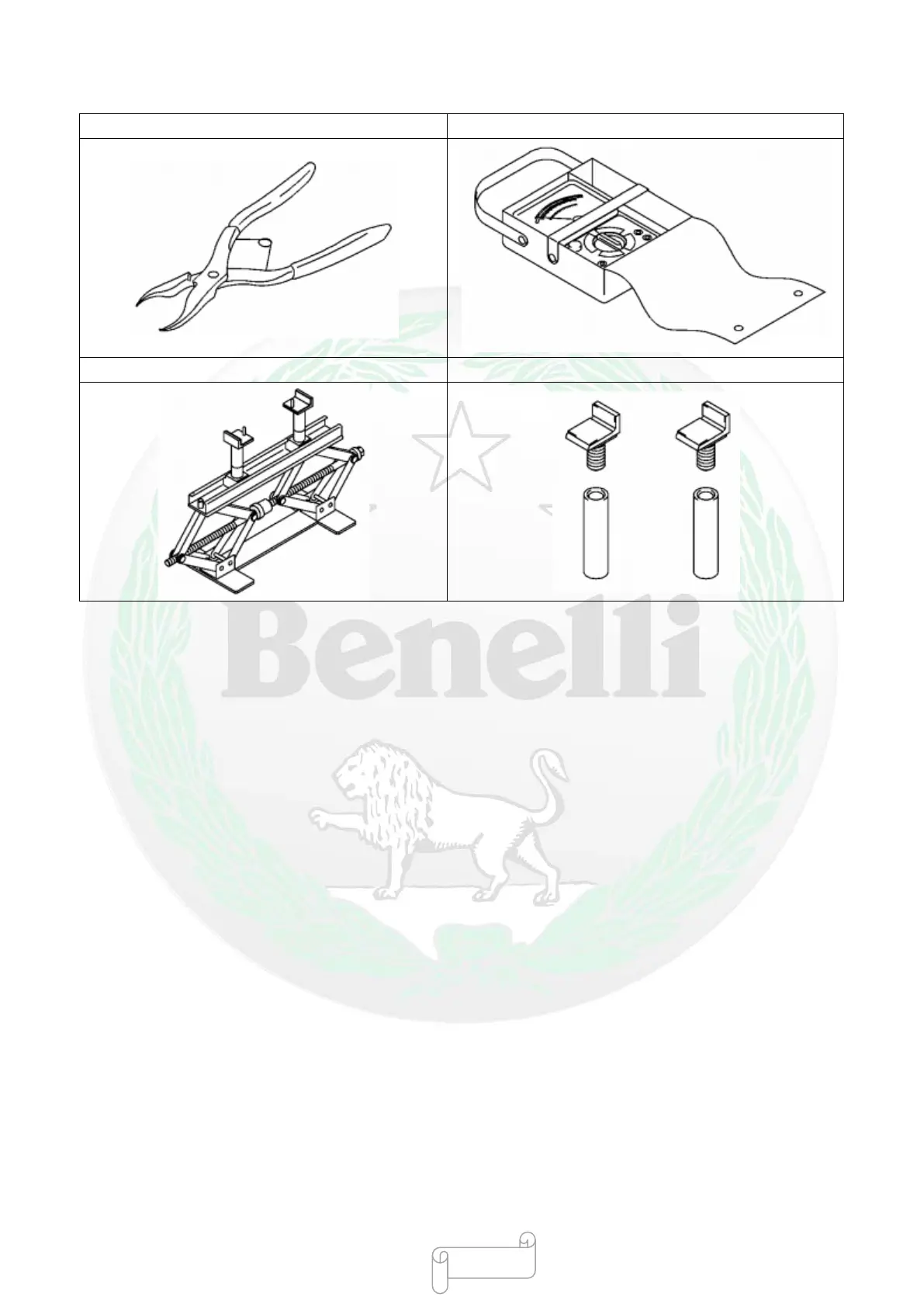

Special Tools

Internal circlip plier:

Multimeter:

Jack:

Jack accessories:

- 317 -
