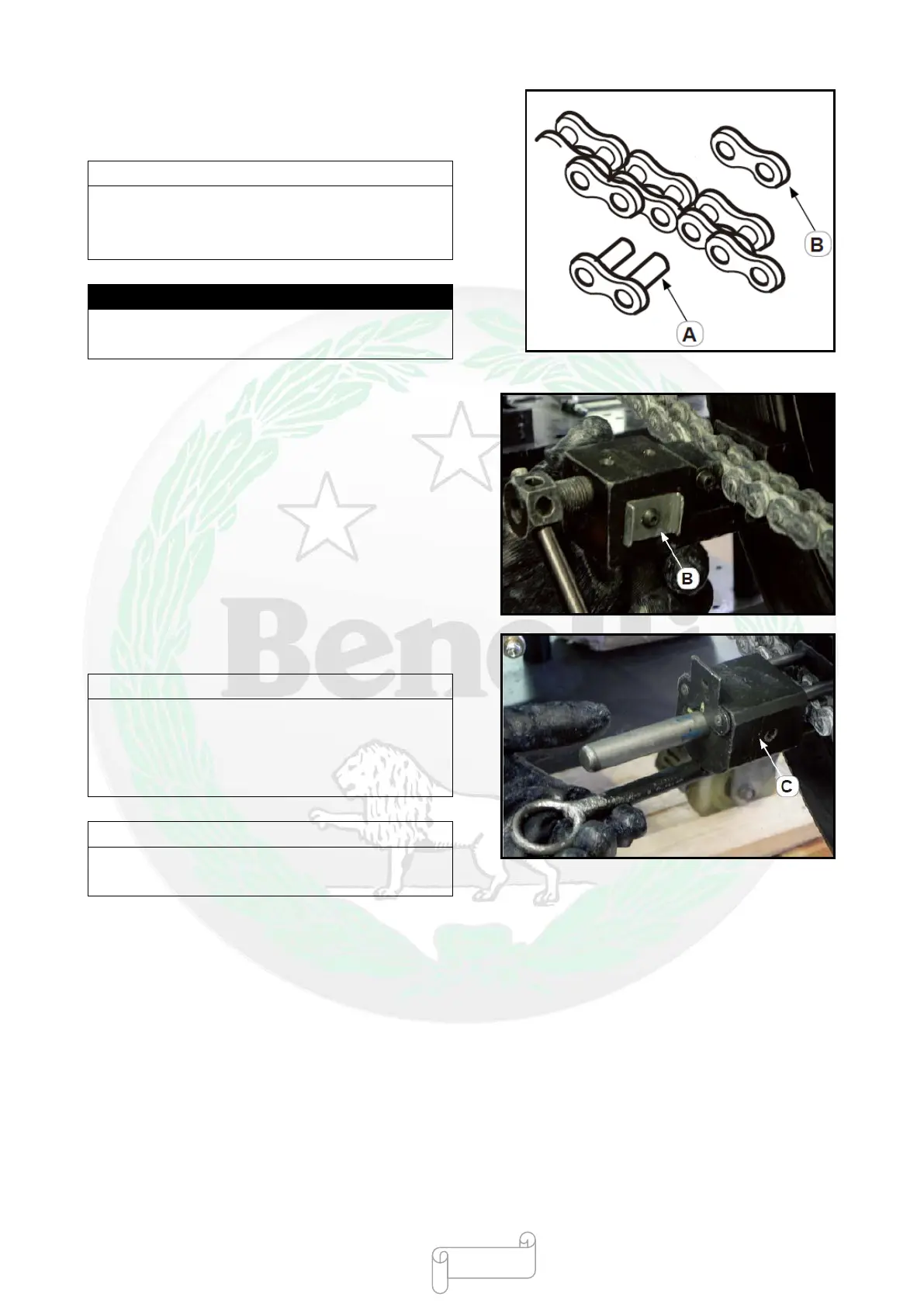

Benelli TNT125 Service Manual

●Drive Chain:
Main chain plate [A],
Side plate of chain plate [C],
Remark
○Insert the main chain plate from the inside of drive
chain, and then assemble side plate, make ID sign
towards the outside.
Warning
。Do not use old chain, main chain plate, side plate of
main chain plate or rubber O-ring
Installing Drive Chain
●Install:
Drive sprocket of engine (see “Disassembling Drive
Sprocket of Engine”),
rear wheel (see “Wheel / Tire”—“Disassembling Rear
Wheel”)
●Install chain:
○Use the tool to assemble the side plate of main chain
plate [B], and press the side plate of main chain plate to
the main chain plate.
○Use Special Tools to fix the pin at the main chain
plate [C],
Note
There must be no opening at the surface under the
impact of fixed main chain plate. If there is any
opening, replace main chain plate, sealing ring and
side plate.
R
emark
○
Do not use the drive chain of main chain plate with
clamp.
●Install:
Drive chain cover
●Adjust the slackness of drive chain after installing
drive chain (see “Regular Maintenance”—“Adjusting
the Slackness of Drive Chain”)
- 305 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
